CANFORD TAILGATE AND WALLBOX TERMINATION PANELS - FLAT - Audio
Unpopulated

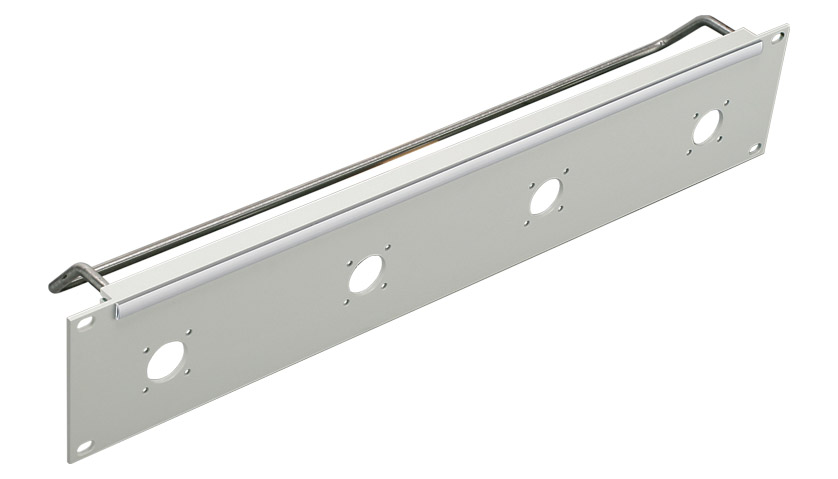

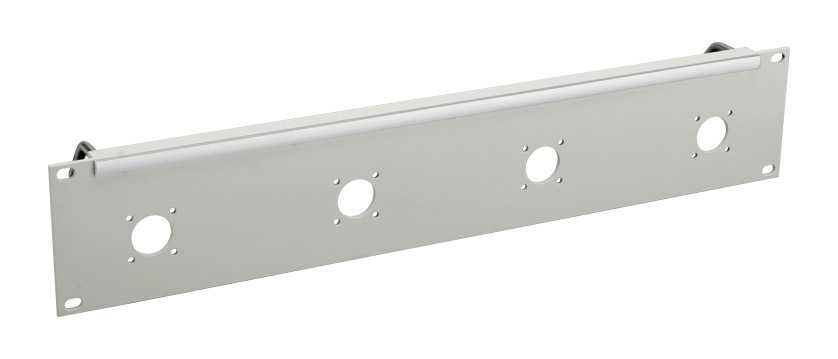

These flush-mounting, outside broadcast or wall-box termination panels are suitable for mounting MIL26, Tourline 25 or 37 (or similar type), or Neutrik 'D' series connectors. They are supplied unpopulated as standard, but with appropriate connector mounting screws, nuts and shakeproof washers. Connectors or cable assemblies can be supplied or fitted if required.
Manufactured from a unique profile aluminium-extrusion, these 2U panels have integral bracing at the rear enabling the highest possible packing density, while maintaining superior rigidity and strength. Connector mounting is uninsulated, as is common practice.
Standard panels are offered with equally spaced cut-outs for MIL26, Tourline 25 or 37, and Neutrik 'D' series connectors including opticalCON 2 and 4, Powercon and Speakon. Metal blanking plates are available for covering unused MIL26 and Tourline cut-outs, Canford XLR blanking plates are suitable for 'D' cut-outs.

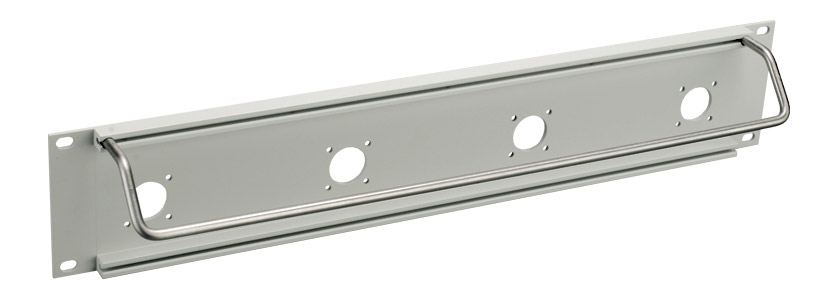

A single, cranked lacing-bar extends only 65mm from the rear of the panel to allow for tight cable routing. A 100mm deep lacing bar is also available as a retrofit option.
A snap-on cover designation-strip holder is fitted above the connector row. The supplied paper strips may be inserted before or after installation; Printable height: 7.5mm. Autocad templates for printing designation strips are available for download from the Tech Zone at www.canford.co.uk or by contacting Technical Support.
Available finished in Dawn Grey (BS4800-10A03) or black. Spare designation-strip paper inserts, (not suitable for printers) and 432mm clear covers are available, see 'DESIGNATION STRIPS - SNAP-ON'
For engraving, screen printing or other cut-outs, layouts and colours, please phone +44(0)191 418 1188.
