45-101 CANFORD 4.1mm CONNECTION PANEL PA1/114

each (ex. VAT) 1+
Price £ 123.10
Special order product. Order cancellations may incur charges
CANFORD 4.1mm CONNECTION PANEL PA1/114

Image may be provided for illustrative purposes only, please consult the product description for exact details.

CANFORD 4.1mm CONNECTION PANEL PA1/114CANFORD 4.1mm CONNECTION PANEL PA1/114CANFORD 4.1mm CONNECTION PANEL PA1/114

Description

4.1mm CONNECTION PANEL

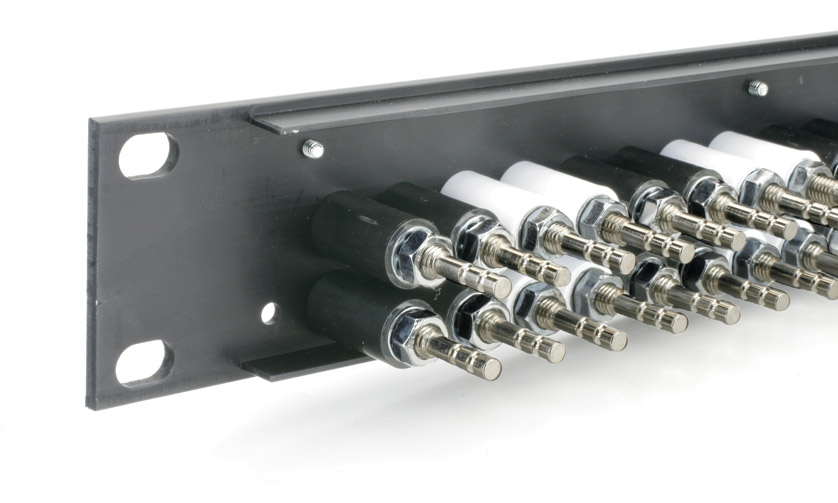

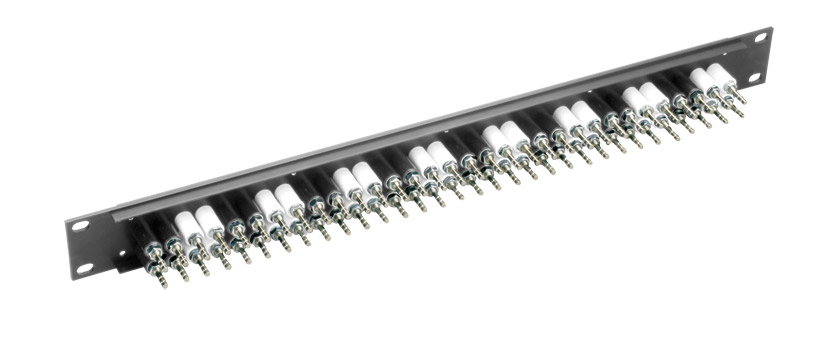

1U black painted rigid extrusion fitted with 2 rows of 32 sockets, 4.1mm type spaced both horizontally and vertically to enable them to be used with all standard PO type 4.1mm U-links, and suitably spaced 2 pin connectors such as the PO type 231A. Standard 4mm plugs may also be used. A snap-on cover designation-strip holder is fitted to the top of the panel, permitting the supplied paper strips to be inserted before or after installation; 7.5mm of printable height is available. Autocad templates for printing designation strips are available for download from the Tech Zone at www.canford.co.uk or by contacting Technical Support. Spare designation-strip paper inserts (not suitable for printers) and clear covers are available. A lacing/earthing bar kit is also available, depth of panel with bar fitted is 100mm. Manufactured to BBC design.

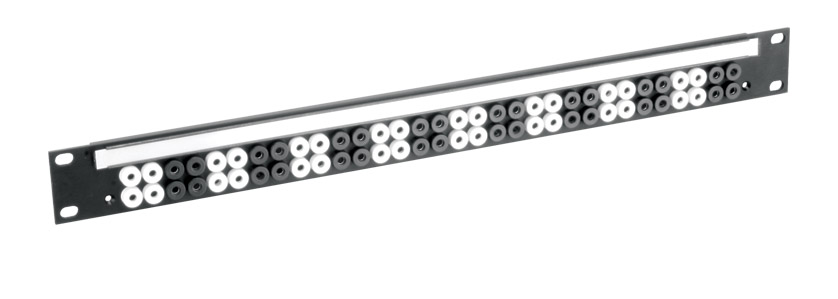

PA1/114 has white sockets, PA1/114A has alternate pairs of white and black sockets on each row.

Often described as test tablets, these panels are commonly used as a test access point between telecommunication lines and interface electronics.
