45-3380 CANFORD TERMINATION PANEL KIT 1U 1x12 9-pin D-sub, unpopulated, grey

each (ex. VAT) 1+
Price £ 61.62

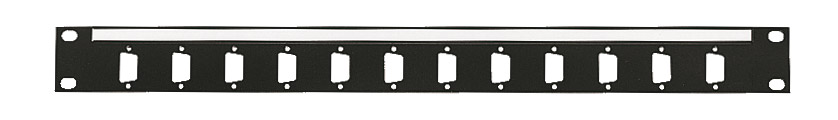

CANFORD TERMINATION PANEL KIT 1U 1x12 9-pin D-sub, unpopulated, grey

Image may be provided for illustrative purposes only, please consult the product description for exact details.

Description

CANFORD TERMINATION PANEL KIT - 9-pin D-sub

Manufactured from a rigid aluminium extrusion with cut outs to accept up to twelve 9 pin D-sub cable termination connectors. Fitted with a cranked lacing-bar giving easy access to the rear of the connectors and a designation-strip holder with snap-on cover.

Panels are supplied with mounting hardware incorporating screw lock receptacles for D-sub connectors (as stock code 44-010).

Designation paper strips may be inserted before or after installation; 7.5mm of printable height is available. Autocad templates for printing designation strips are available for download from the Tech Zone at www.canford.co.uk or by contacting Technical Support. Spare designation-strip paper inserts (not suitable for printers) and clear covers are available.

Available finished in Dawn Grey (BS4800-10A03) or black.

Optional accessories: Recess rack-mounting brackets are available to recess panels within the rack and an optional tamper-proof cover-plate can be fitted and removed without disturbing the panel mountings: See Recess rack-mounting brackets and anti-tamper covers.

Suitable 9 pin D-sub connectors:

FemaleMale
Solder44-00144-002
Crimp44-05144-052
Crimp contacts (pk 100)44-04844-049

Note: D-sub back-to-back adapters cannot be used with these panels due to the thickness of the panel.

Manufactured by Canford.
