48-4041 F TYPE TERMINATION PANEL 1U 1x20 F type 75 ohm, black

each (ex. VAT) 1+ 5+ 10+
Price £ 61.74 60.19 57.72

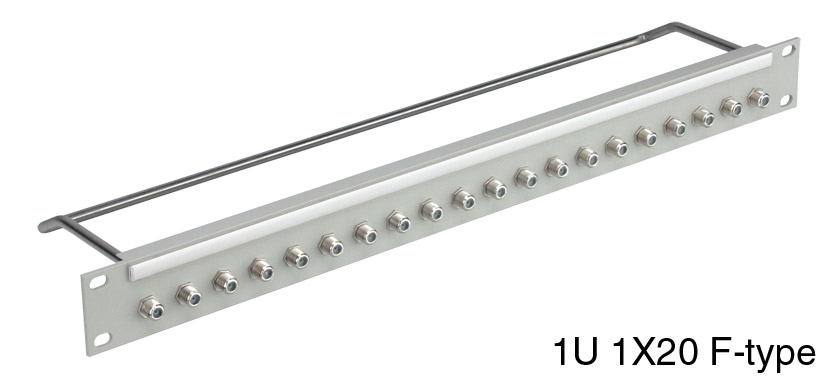

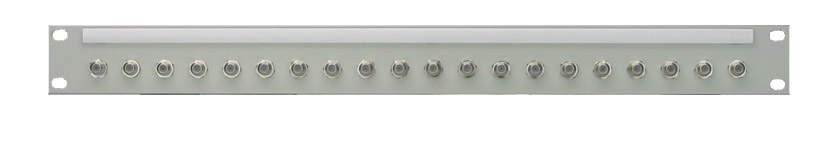

F TYPE TERMINATION PANEL 1U 1x20 F type 75 ohm, black

Image may be provided for illustrative purposes only, please consult the product description for exact details.

F TYPE TERMINATION PANEL 1U 1x20 F type 75 ohm, blackF TYPE TERMINATION PANEL 1U 1x20 F type 75 ohm, blackF TYPE TERMINATION PANEL 1U 1x20 F type 75 ohm, blackF TYPE TERMINATION PANEL 1U 1x20 F type 75 ohm, black

Description

Product resources

CANFORD F-TYPE TERMINATION PANELS

A range of termination panels supplied fully-populated with double-sided F-type female connectors. Typically used for RF distribution, CATV and CCTV.

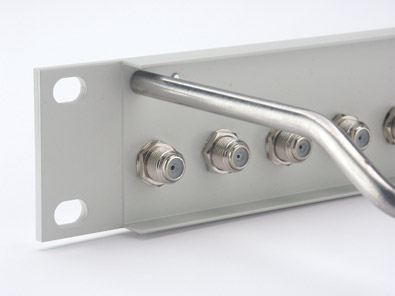

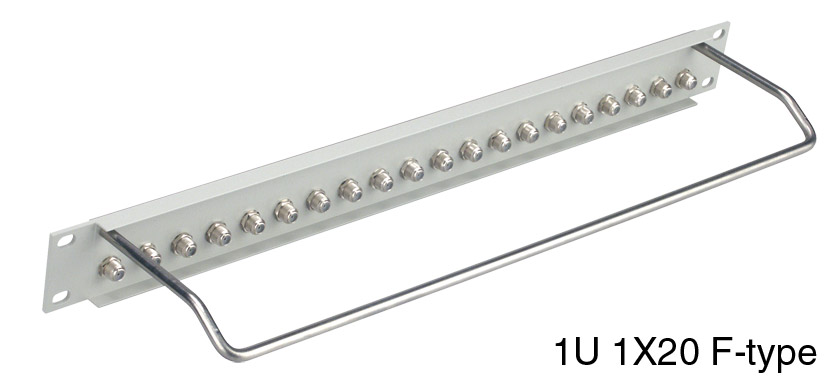

Manufactured from a rigid aluminium extrusion, panels are fitted with cranked lacing-bar to give easy access to the rear sockets. A designation-strip holder with snap-on cover is fitted above the connector row and permit paper strips to be inserted before or after installation; 7.5mm of printable height is available. Autocad templates for printing designation strips are available for download from the Tech Zone at www.canford.co.uk or by contacting Technical Support.

Available finished in Dawn Grey (BS4800-10A03) or Black. Spare 432mm designation-strip paper (not suitable for printers) and covers are available, see 'Designation strips - snap on'.

Insulated connectors may be supplied to special order.

Recess rack-mounting brackets are available to recess panels within the rack and an optional tamper-proof cover-plate can be fitted and removed without disturbing the panel mountings, see “Recess rack-mounting brackets and anti-tamper covers”.

Application note:

Care should be taken to ensure that cables fitted behind cover-plates are not bent below their recommended minimum bend radius.
