CANFORD BNC 75 OHM TERMINATION PANELS Very High Density
Digital Video/Unbalanced 75 ohm AES/EBU Audio

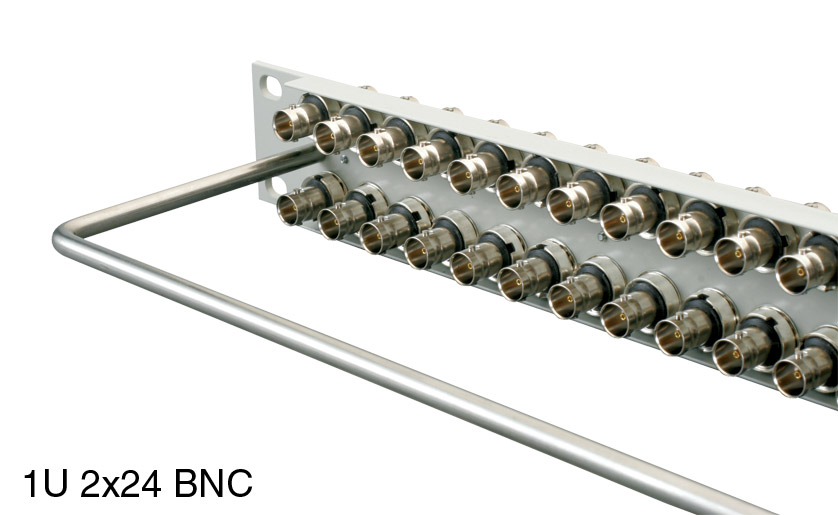

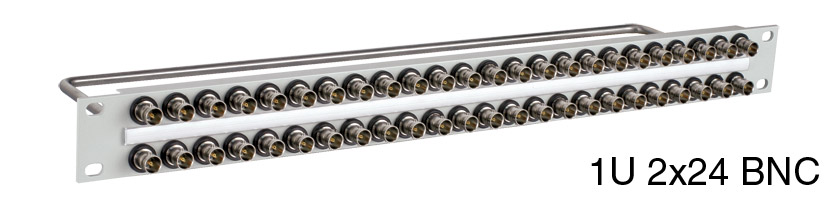

A range of 1U video termination panels supplied fully populated with up to 24 pairs of Canford insulated, double-sided, 75 ohm BNC connectors, suitable for analogue video, SDV and unbalanced AES/EBU digital audio applications. Connectors are equally spaced across the panel and achieve the highest possible packing density offering a solution where rack space is severely limited.
It is recommended that the BNC 'precision' 75 ohm type is used for HDTV applications.
Manufactured from a lightweight but extremely rigid aluminium extrusion, the connectors are equally spaced across the panel. The very high connector density of these panels means only a single centrally-mounted lacing-bar and single snap-on cover designation-strip holder (located centrally) are fitted. However, 7.5mm of printable height is available, sufficient for two rows of text. Autocad templates for printing designation strips are available for download from the Tech Zone at www.canford.co.uk or by contacting Technical Support.
Available finished in Dawn Grey (BS4800-10A03.) Spare 432mm designation-strip paper (not suitable for printers) and covers are available, see 'Designation strips - snap on'.
Due to the very narrow vertical and horizontal pitch, it may be necessary to use a BNC fitting tool to mate cable connectors, see "BNC fitting tools".
Recess rack-mounting brackets are available to recess panels within the rack and an optional tamper-proof cover-plate can be fitted and removed without disturbing the panel mountings, see 'Recess rack-mounting brackets and anti-tamper covers'.
Application note:
Care should be taken to ensure that cables fitted behind cover-plates are not bent below their recommended minimum bend radius.
