CANFORD BNC 75 OHM/PHONO A/V TERMINATION PANELS

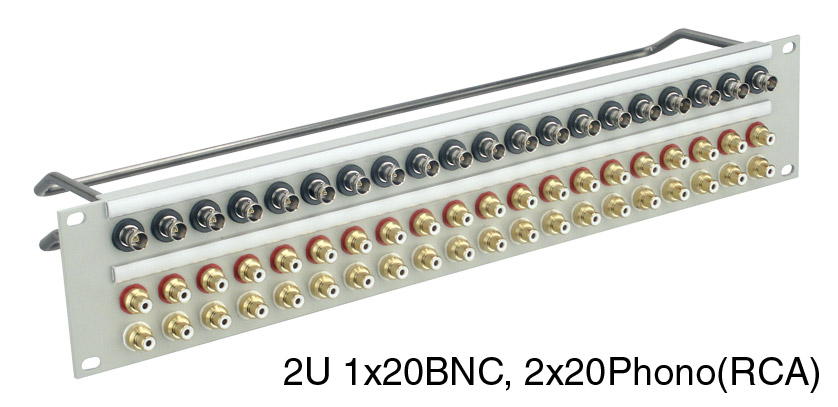

A/V termination panels supplied fully-populated with a single row of double-sided, insulated, 75 ohm female BNC connectors and two rows of double sided insulated phono (RCA) sockets. Designed to enable system patching and the easy connection of portable or external equipment fitted with coax video plus unbalanced stereo audio lines.

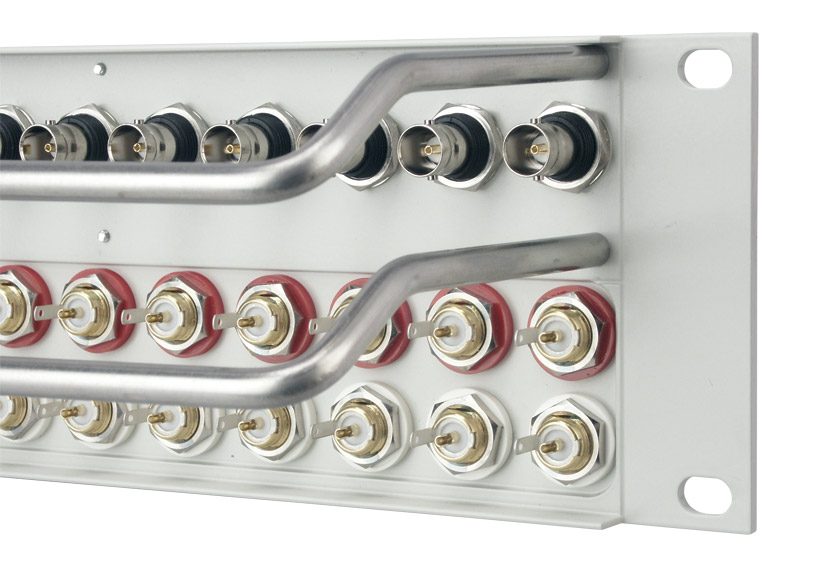

Manufactured from a lightweight but extremely rigid aluminium extrusion, panels are fitted with two cranked lacing-bars allowing easy access to the rear sockets. The vertical connector groups are equally spaced across the panel. Two snap-on cover designation-strip holders are fitted, one above the BNCs and one over the pairs of phonos. The snap-on cover permits the supplied paper strips to be inserted before or after installation; 7.5mm of printable height is available. Autocad templates for printing designation strips are available for download from the Tech Zone at www.canford.co.uk or by contacting Technical Support.
Available finished in Dawn Grey (BS4800-10A03) or Black. Spare 432mm designation-strip paper (not suitable for printers) and covers are available, see 'Designation strips - snap on'.
Panels can be supplied to special order with 50 ohm (long insulator) double-sided BNCs and/or rear solder terminal phono sockets, please contact the Custom Metalwork sales team on +44 (0)191 418 1188.
Recess rack-mounting brackets are available to recess panels within the rack and an optional tamper-proof cover-plate can be fitted and removed without disturbing the panel mountings, see 'Recess rack-mounting brackets and anti-tamper covers'.
Application note:
Care should be taken to ensure that cables fitted behind cover-plates are not bent below their recommended minimum bend radius.
