CANFORD BNC HD 3Gb/s 1080p 75 OHM TERMINATION PANELS - ANGLED
3Gb/s 1080p HDTV, 1.5Gb/s 1080i HDTV, SDTV, Analogue and Unbalanced 75ohm AES Audio

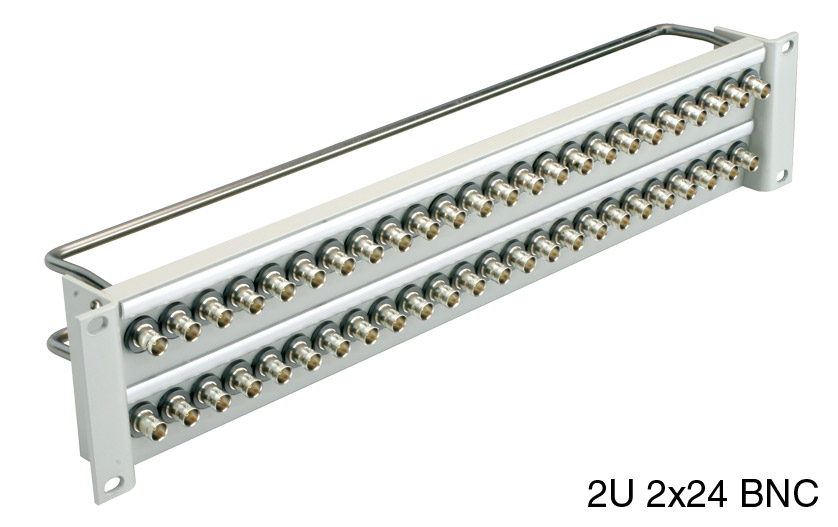

Angled termination panels, supplied fully populated with Canford insulated double-sided, 'High Definition' 75 ohm BNC HD 3Gb/s sockets equally spaced across the panel. suitable for 3G and 1.5G high definition, standard definition and analogue video applications. The performance exceeds the requirements of SMPTE292M and SMPTE424M making them suitable for composite and component video, 270 Mb/s SDV and uncompressed 1080i or 1080p HD-SDI video up to 3Gb/s.
Manufactured from a unique profile aluminium-extrusion with integral rear bracing-bar. The front face of the panel is angled down by 7.5 degrees from vertical, relieving stress on mated cables and maintaining clear access at the rear. Connectors are equally spaced across the panel which is both lightweight and extremely rigid.

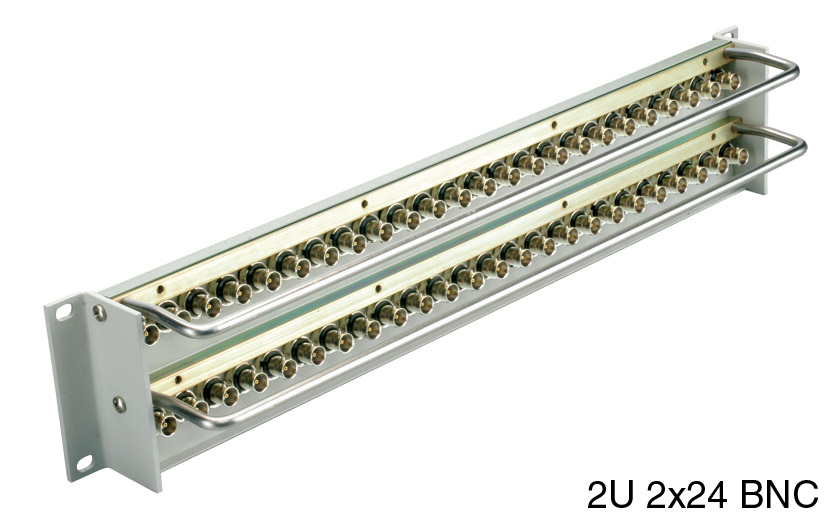

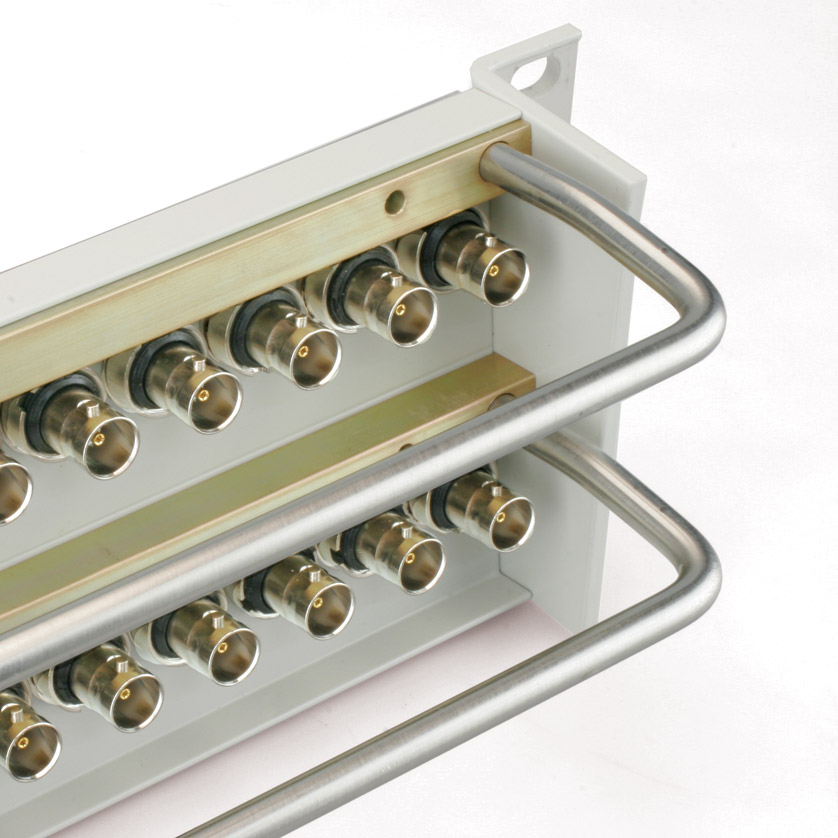

Panels are fitted with short cranked lacing-bar extending only 65mm from the rear of the panel to allow for tight cable routing. A snap-on cover designation-strip holder is fitted above each connector row to permit the supplied paper strips to be inserted before or after installation; 7.5mm of printable height is available. Autocad templates for printing designation strips are available for download from the Tech Zone at www.canford.co.uk or by contacting Technical Support.
Available finished in Dawn Grey (BS4800-10A03) and Black. Spare 432mm designation-strip paper (not suitable for printers) and covers are available, see 'Designation strips - snap on'.
Panels may be engraved or screen printed to special order.
Custom connector populations and layouts are available to special order, please contact the Custom Metalwork sales team on +44 (0)191 418 1188. A minimum quantity or charge may apply.
