48-4436 MUSA HD Female, cable, group Y

each (ex. VAT) 1+ 10+ 50+ 100+
Price £ 4.28 4.17 4.07 3.86

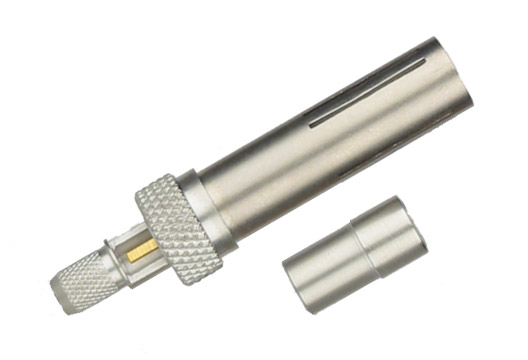

MUSA HD Female, cable, group Y

Image may be provided for illustrative purposes only, please consult the product description for exact details.

Description

CANFORD MUSA HD 3Gb/s 1080p VIDEO CONNECTORS, CABLE

3Gb/s 1080p HDTV, 1.5Gb/s 1080i HDTV, SDTV, Analogue and Unbalanced 75ohm AES Audio

Originally invented by the British Post Office (BPO) to patch experimental radar the 'Multi-User Steerable Array' system was abbreviated to MUSA and is now a standard connector for video routing and patching. These connectors are a completely new version of the MUSA, re-designed for 3G and 1.5G high definition, standard definition and analogue video applications. The performance exceeds the requirements of SMPTE292M and SMPTE424M making them suitable for composite and component video, 270 Mb/s SDV and uncompressed 1080i or 1080p HD-SDI video up to 3Gb/s. Also suitable for unbalanced 75ohm AES digital audio. The cable connector is the female type, and the panel connector is the male type.

These female connectors are offered for popular digital and analogue cables, for key to cable-groups, see “Co-axial connectors, selection guidance”. The body parts are nickel-plated and centre contacts are gold plated giving a smooth mating action and overcoming the 'sticktion' and tarnishing of the now obsolete silver MUSA. Access for a soldering iron is via an aperture in the side of the one-piece body. A crimp-sleeve secures the screen and covers the aperture.

Application note: Canford MUSA group X cable connector (48-4435) requires the use of the Erma crimp die-set 29295 (Canford part number 55-816). See index, "Erma Crimp Tools".

Strain-relief bushes are available in a wide range of colours, see “Strain relief bushes”.
