Description

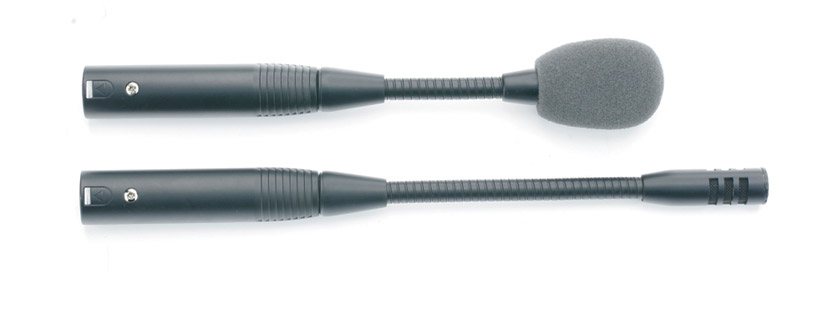

CONDENSER GOOSENECK MICROPHONES
Black slimline goosenecks (8mm diameter) with small high performance microphone head (13.2mm diameter). Available in a range of lengths, the model code indicates the length from top of head to panel surface in mm. (For XB types, this assumes the microphone is plugged into an XLR socket mounted in the panel). Applications include conference, broadcast and PA work, talkback, and other areas where a discreet, small, flexibly mounted microphone is required.
XB type
These have an XLR 3 pin male connector at the base, and require 6-24 volts (types C-XB24) or 25-52 volts (types C-XB48) phantom power. Supplied complete with windshield C13.
A UK electrical style white plastic mounting plate with XLR 3 pin female connector is also available (stock code 49-511) which fits directly onto woodwork, or onto walls and ceilings using either plaster type flush back box 49-578 or surface plastic box 49-519; for further details see “Connector plates”.
PB type
These have a threaded stem base, designed for panel mounting (10mm hole, with anti-rotation flat, 8.2mm). They are supplied with 1 metre single core screened cable, for powering arrangements see data sheet 02-053. Cable screen is isolated from gooseneck housing. Supplied complete with fixing nut and windshield C13.
A UK electrical style white plastic mounting plate with 10mm mounting hole is also available (stock code 49-510) which fits directly onto woodwork, or onto walls and ceilings using either plaster type flush back box 49-578 or surface plastic box 49-519.
Manufactured by Canford.
Technical Specification:
|
Impedance: | 200 ohms |
|
Sensitivity: | –62dB±3dB (0.95mV/µBar) |
|
Frequency range: | 50Hz–18kHz |
|
Polar response: | Cardioid |
|
Front-to-back rejection: | 12dB (1kHz) |
|
Powering: | XB24 type – 6-24 volts phantom |
|
| XB48 type – 25-52 volts phantom |
|
| PB type – electret capsule, see data sheet 02-0535 |
