20-235 EMO E235 DISC PHONO PREAMPLIFIER 2 channel, balanced XLRM outputs

Canford have chosen to discontinue this item, special orders may be considered for this item if viable in quantity and price. Please contact our sales department for a quote

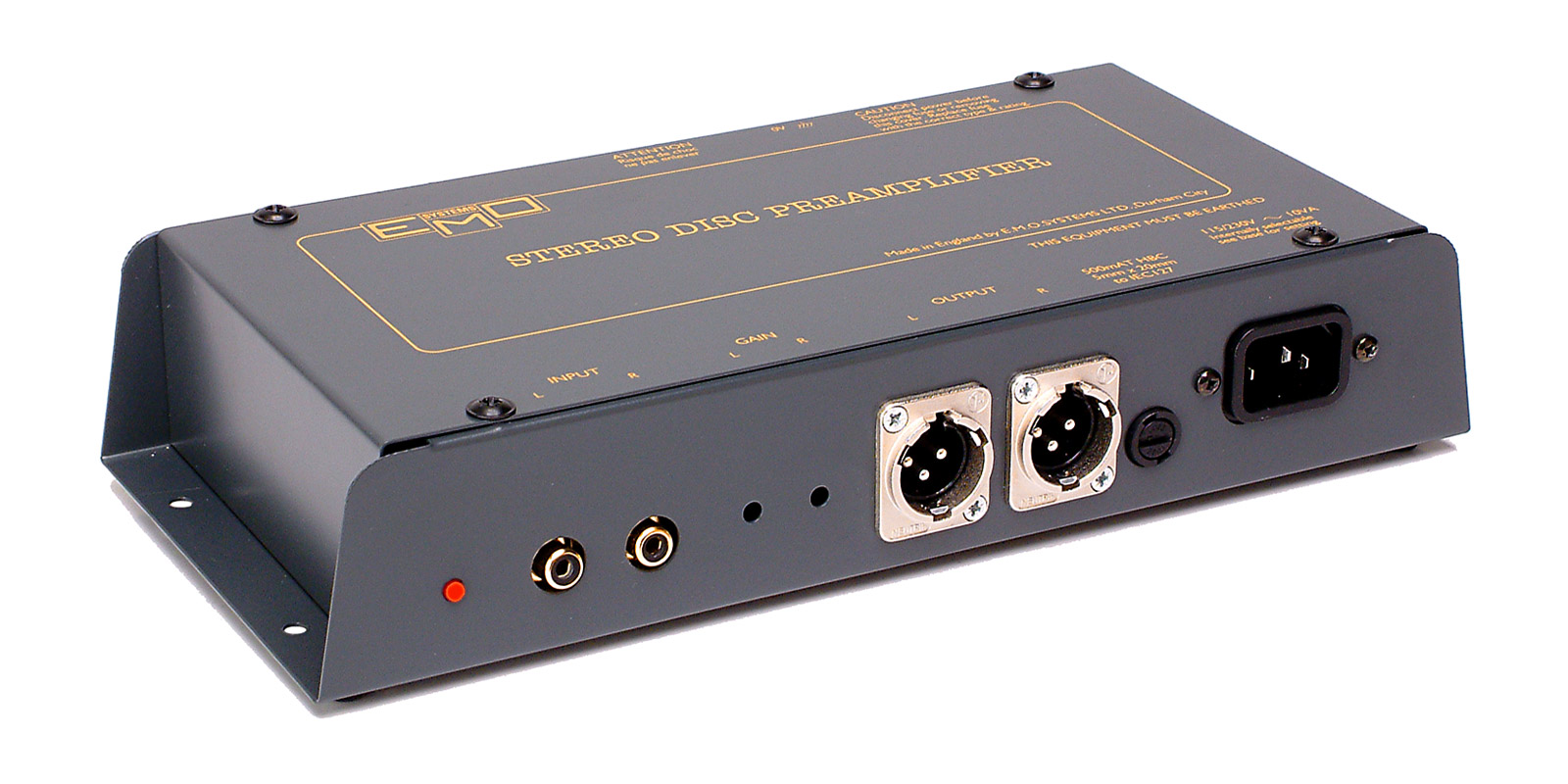

EMO E235 DISC PHONO PREAMPLIFIER 2 channel, balanced XLRM outputs

Image may be provided for illustrative purposes only, please consult the product description for exact details.

Description

Product resources

EMO DISC PRE-AMPLIFIERS

The EMO disc pre-amplifier is designed for the professional audio user in both broadcast and studio situations. Fitted with balanced outputs (using Lundahl LL5402 transformers 23-301), it incorporates the latest in low noise circuitry and tight tolerance components to ensure long operational life. Its compact size enables it to be mounted beneath a turntable plinth.

Technical Specification:

Switchable input capacitance:50pF, 100pF, 150pF, 200pF.
Output level:Up to + 20dBu.
Switchable high pass filter:–3dB at 20Hz, 12dB/octave.
Adjustable gain:35 to 55dB.
Frequency response:30Hz to 20kHz, within ±0.5dB of RIAA curve.
Noise:–87dBu RMS A weighted
–82dBu 22Hz-22kHz bandpass
–75dBu CCIR quasi peak
Harmonic distortion:<0.008% 1kHz+8dBu
Crosstalk:Better than –75dB at 1kHz
Separate chassis/signal earths.
Supply voltage required:120/220/240v AC. Mains cable included.
Input:Gold plated phono connectors.
Output:XLR.
Overall dimensions:270(w) × 140(d) × 55(h)mm.
