74-6326 SHURE MX395W/O MICROPHONE Miniature boundary, omnidirectional, no LED, 3-pin XLR, white

each (ex. VAT) 1+
Price £ 127.20
Special order product. Order cancellations may incur charges
SHURE MX395W/O MICROPHONE Miniature boundary, omnidirectional, no LED, 3-pin XLR, white

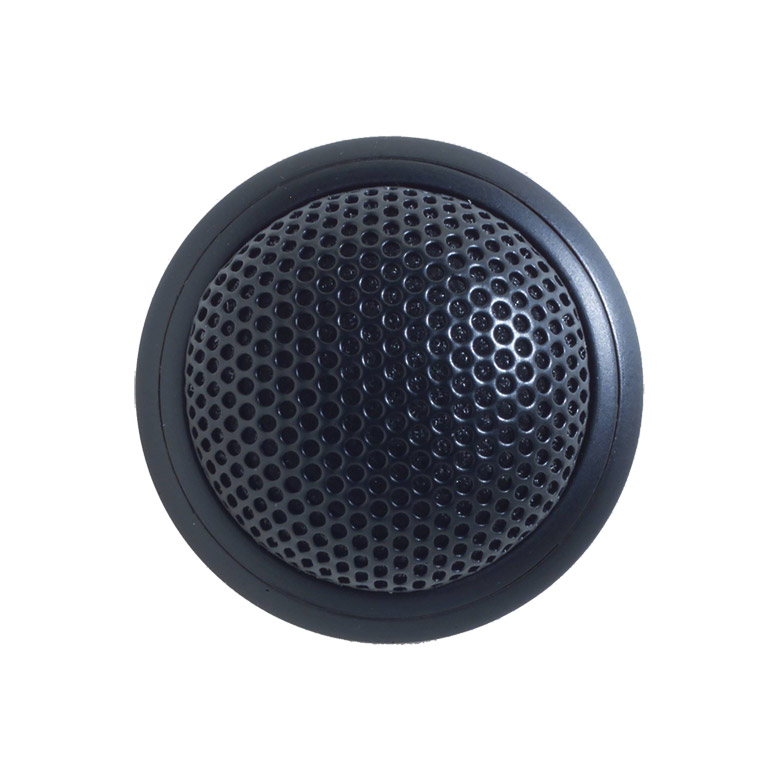

Image may be provided for illustrative purposes only, please consult the product description for exact details.

Manufacturers description

MX395 Microflex Low Profile Boundary Microphone

The Microflex® Low Profile Boundary microphone is an ideal table microphone
when minimal presence is of high priority. Perfect for meeting rooms, these
microphones deliver exceptional sound pickup while barely being noticed.
Choose from a selection of colors and pickup patterns for customized table

installations.  Click "view larger" to see additional MX395 models.

Cartridge polar pattern is indicated by the model number suffix:

C = Cardioid, BI = Bidirectional, O= Omnidirectional

  • MX395B/C/BI/O - Black, 3-pin XLR
  • MX395AL/C/BI/O - Aluminum, 3-pin XLR
  • MX395W/O - White, 3-pin XLR
  • MX395B/C/BI/O-LED - Black, 5-pin XLR, logic-controlled muting functions, bi-color status indicator ring

Features

  • Only 1.25 inch (3.8 cm) in diameter
  • Cardioid, omni and bidirectional polar patterns
  • Wide dynamic range and smooth frequency response
  • Available in black, white and aluminum
  • Bi-color status indicator available with -LED models
  • Logic input for remote LED control
  • CommShield Technology

Specifications

Specification Sheet (MX395, English)

Type
Condenser (electret bias)

Frequency Response
50–17000 Hz

view larger

Polar Pattern
MX395/O: Omnidirectional
MX395/C: Cardioid
MX395/BI: Bidirectional

Output Impedance
EIA Rated at 150 Ω (170 Ω actual)

Output Configuration
Active balanced

Sensitivity (at 1 kHz , open circuit voltage)
Cardioid: –35 dBV/Pa (18 mV)
Omnidirectional: –28 dBV/Pa (42 mV)
Bidirectional: –37 dBV/Pa (14 mV)
1 Pascal=94 dB SPL

Maximum sPl (1 kHz at 1% THD, 1 kΩ load)
Cardioid: 121 dB
Omnidirectional: 114 dB
Bidirectional: 123 dB

Equivalent output Noise (A-weighted)
Cardioid: 28 dB SPL
Omnidirectional: 21 dB SPL
Bidirectional: 29 dB

Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz)
Cardioid: 66 dB
Omnidirectional: 73 dB
Bidirectional: 65 dB

Dynamic Range (1 kΩ load at 1 kHz)
Cardioid: 93 dB
Omnidirectional: 93 dB
Bidirectional: 94 dB

Common Mode Rejection (10 Hz–100 kHz)
45 dB minimum

Preamplifier output Clipping level (1% THD)
–8 dBV (0.4 V)

Polarity
3-Pin XLR: Positive sound pressure on diaphragm produces positive
voltage on pin 2 relative to pin 3 of output XLR connector.
5-Pin XLR: Positive sound pressure on diaphragm produces positive
voltage on pin 4 relative to pin 2 of output XLR connector.

Weight
Net: 0.136 kg (0.30 lbs.)
Packaged: 0.374 kg (0.825 lbs.)

Logic Connections
LED IN: Active low (≤1.0V), TTL compatible. Absolute maximum voltage:
-0.7V to 50V.

Environmental Conditions
Operating Temperature: -18–57 °C (0–135 °F)
Storage Temperature: -29–74 °C (-20–165 °F)
Relative Humidity: 0–95%

Power Requirements
MX395: 11–52 Vdc phantom, 2.0 mA
MX395-LED: 48–52 Vdc phantom, 8.0 mA

User Guides

Description

SHURE MICROPHONES - Miniature Boundary Types

The Microflex Low Profile Boundary microphone is an 'ideal table microphone' when minimal presence is of high priority. 'Perfect for meeting rooms, these microphones deliver exceptional sound pickup while barely being noticed'. Choose from a selection of colours and pickup patterns for customised table installations.
