Description

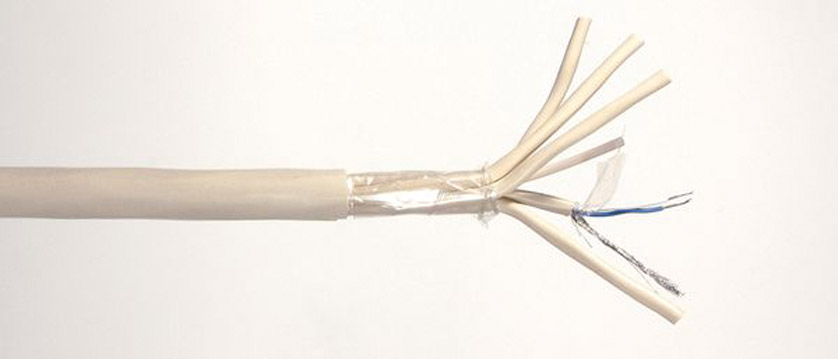

KHJ SERIES - HELICALLY SCREENED SOLID CONDUCTOR INDIVIDUALLY JACKETED CABLE (BBC types)
Solid conductor twisted pairs, individually screened and jacketed and covered in an overall sheath, to a BBC specification. Individual pairs are similar to KHT cables. Suitable for permanent installations where they will not be subject to regular flexing. Suitable for termination onto Krone frames, but if screens are to be terminated, they must be made off to a single wire. For conductor colour codes, see technical data section at the back of the catalogue. Available in 5 and 10 pair.
Technical Specification:
|
BBC specification: | PIN10/3M (KHJ5), PIN20/3M (KHJ10) |
|
Voltage rating: | 1kV dc |
|
Conductors: | 1/0.5mm (0.2mm²) tinned copper wire |
|
Current rating: | 1A |
|
Pair insulation: | PVC for colour codes, see technical data section |
|
Screen: | 32/0.15mm, 95% coverage |
|
Individual jacket: | PVC |
|
Overall jacket: | PVC, cream, 9.8mm OD (KHJ5), 13.1mm (KHJ10) |
|
Conductor resistance: | 92.2 ohms/km |
|
Weight: | 11.5kg/100m (KHJ5), 20.7kg/100m (KHJ10) |
|
Reel length: | 100m, 500m |
|
Cut lengths: | Available in any multiple of 1 metre |
