49-371 CANFORD LINE ISOLATING UNIT In-line, single channel, AES/EBU balanced, XLR in/out

each (ex. VAT) 1+
Price £ 59.00
CANFORD LINE ISOLATING UNIT In-line, single channel, AES/EBU balanced, XLR in/out
CANFORD LINE ISOLATING UNIT In-line, single channel, AES/EBU balanced, XLR in/outCANFORD LINE ISOLATING UNIT In-line, single channel, AES/EBU balanced, XLR in/out

Description

LINE ISOLATING UNITS - AES/EBU - In-line

These two designs use high-quality, miniature, high-frequency transformers, specially manufactured for Canford Audio, for providing isolation on balanced 110 ohm and unbalanced 75 ohm digital audio circuits.

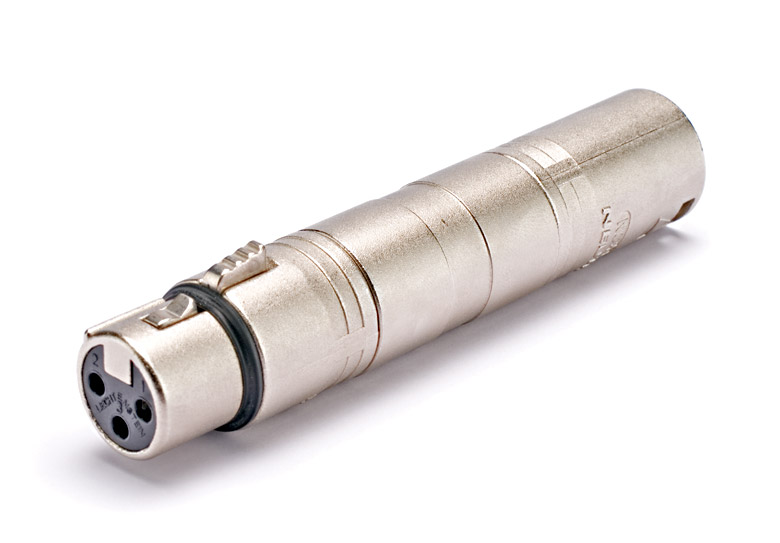

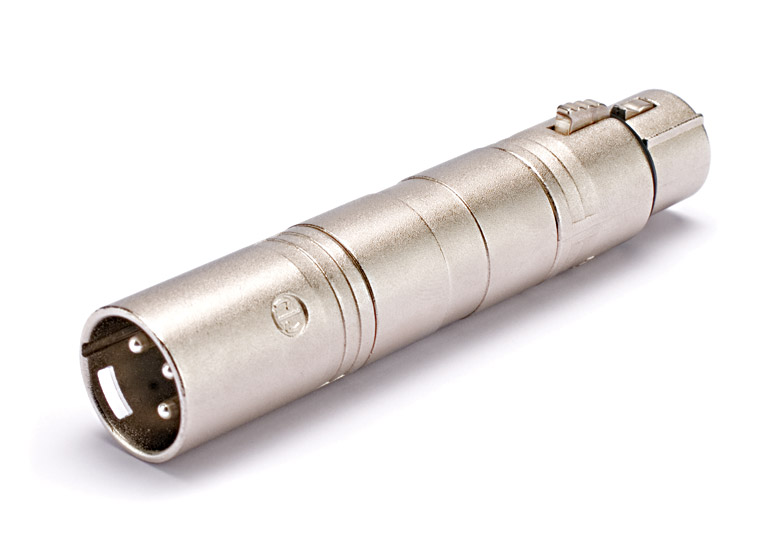

Balanced circuit units have an XLR 3-pin female and XLR 3-pin male. Unbalanced circuit units have a BNC female at each end. Both units are bi-directional.

Bandwidth 0.1 - 6.0MHz. Maximum voltage: 5.0V p-p. VSWR: Less than 1.1, 0.1 - 6.0MHz. Insertion loss: Less than 0.3dB.
