Description
CANFORD FM BROADCAST TUNER

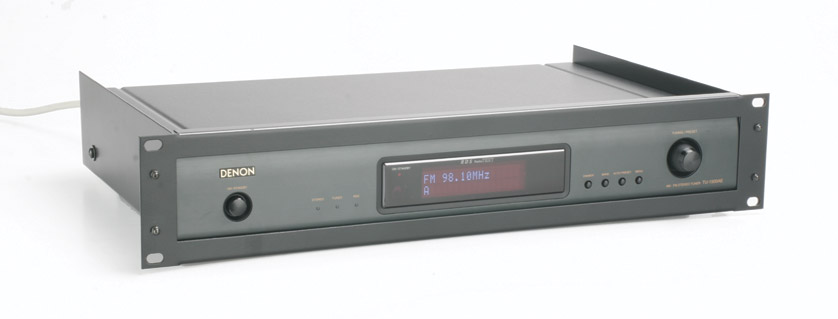

Based on a Denon U-100 FM/AM radio tuner, this version has Canford modifications, approved by the manufacturer, providing professional-level balanced outputs, FM status monitoring and an IEC320 mains inlet connector.

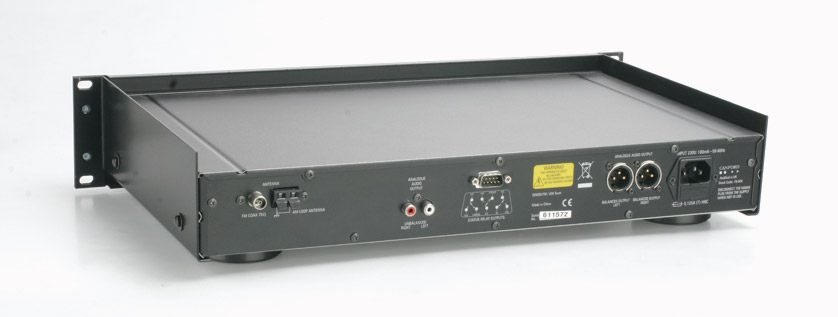

Two XLR 3-pin male connectors are provided, electronically balanced, fed by the same source as the standard RCA (phono) outputs.
The FM status monitoring function gives a normally-open, normally-closed and common contact for each monitored function. Traffic flag on/off, stereo beacon present/absent and carrier present/fail are monitored. These are provided on a D-sub 9-pin female connector.
Technical Specification:
|
Tuning range: | FM 87.5 - 108.0MHz, AM 522 - 1611kHz |
Input connectors:
|
FM antenna: | Coaxial, 75 ohm |
|
AM antenna: | Two spring lever terminals |
Output connectors:
|
Audio (unbalanced): | Two RCA (phono), -10dB nominal |
|
Audio (balanced): | Two XLR 3-pin male, 0dB nominal |
|
FM status monitoring: | D-sub 9-pin female |
|
Power source: | 230V AC, 14W (cable not included) |
|
Dimensions: | 434(w) x 74(h) x 286(d) mm |
|
Weight: | 3.9kg |
Included accessories: Infra-red remote controller, rackmount ears (2U) and 'T' indoor aerial.
