60-1305A BELDEN 1305A CABLE Black

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 2.27 1.82 1.75 1.68 1.54
BELDEN 1305A CABLE Black

Description

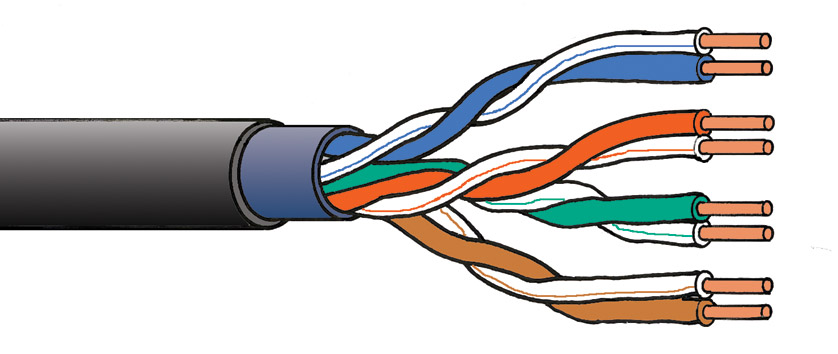

BELDEN 1304A AND 1305A - DEPLOYABLE CATEGORY 5E STRANDED CONDUCTOR UNSCREENED MULTIPAIR CABLES

These Category 5E U/UTP (unscreened) cables, designed for deployable applications, have stranded conductors, bonded pairs, and overall soft PVC jackets. They difference between them is only the thickness of the outer jacket.

Technical Specifications:

Conductors:7/0.203mm (7 x 32AWG) plain copper (24AWG)
Insulation:Polyolefin, according to CW1308 colour code
Lay-up:Two insulated conductors twisted and bonded together, pairs twisted together
Lay up:Four pairs twisted together
Overall jacket:Soft PVC, matt black, O.D. 6.22mm (1304A), 7.49mm (1305A)
Impedance:100 ohms +/- 15 ohms
Weight:4.13kg/100m (1304A), 5.93kg/100m (1305A)
Reel length:305m
Cut lengths:Available in any multiple of 1 metre
