Description
RYCOTE MICROPHONE SUSPENSIONS - InVision Studio
The InVision Studio USM series mounts use Rycote’s patented ‘Lyre’ technology to suspend studio microphones safely, and isolate them from the low-frequency thumps and rumbles that are transmitted through microphone stands. Due to the superior self-damping of the ‘Lyres’ they offer much better isolation across the whole audio spectrum, particularly in the 40-70 Hz region, than conventional elastic suspensions, which can sometimes have a negative effect at these critical frequencies, if not matched to the particular microphone. The mounts are designed to provide equal isolation around 360 degrees and are thus suitable for all side-address microphones; omnidirectional, cardioid or figure-of-eight microphones can be oriented vertically or horizontally.

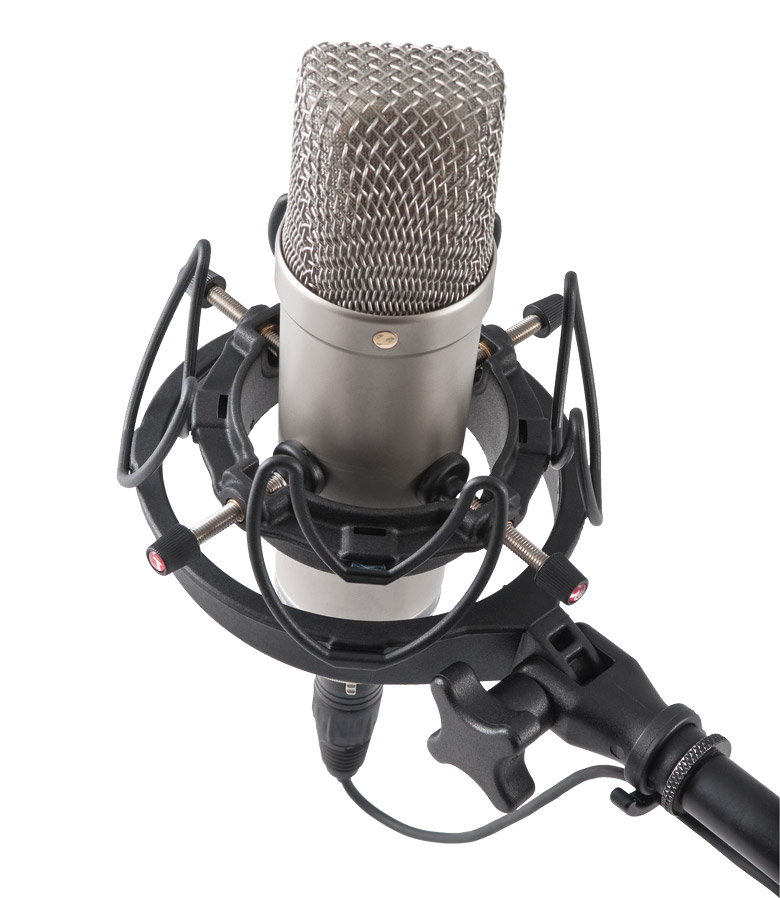

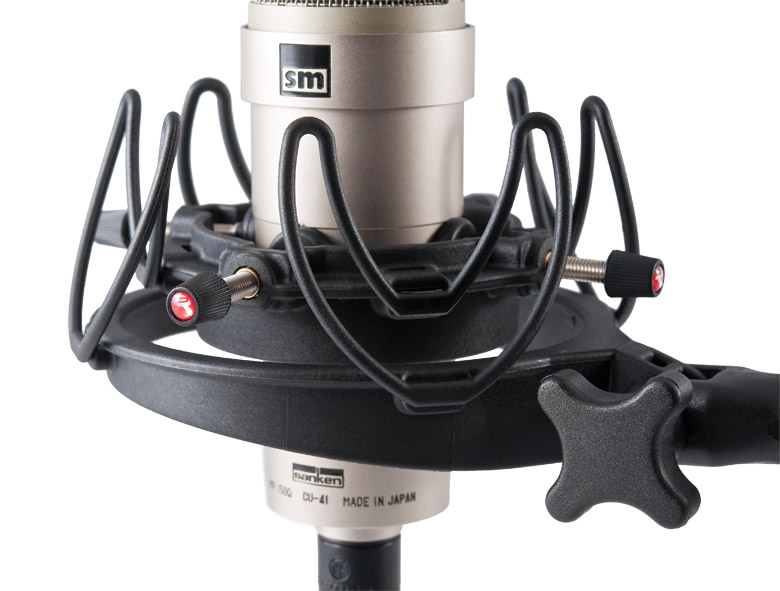

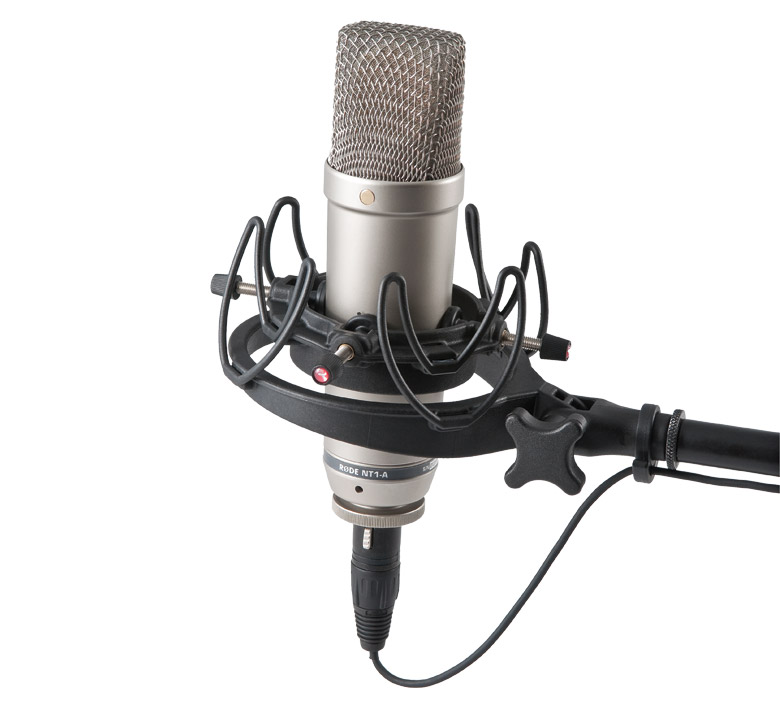

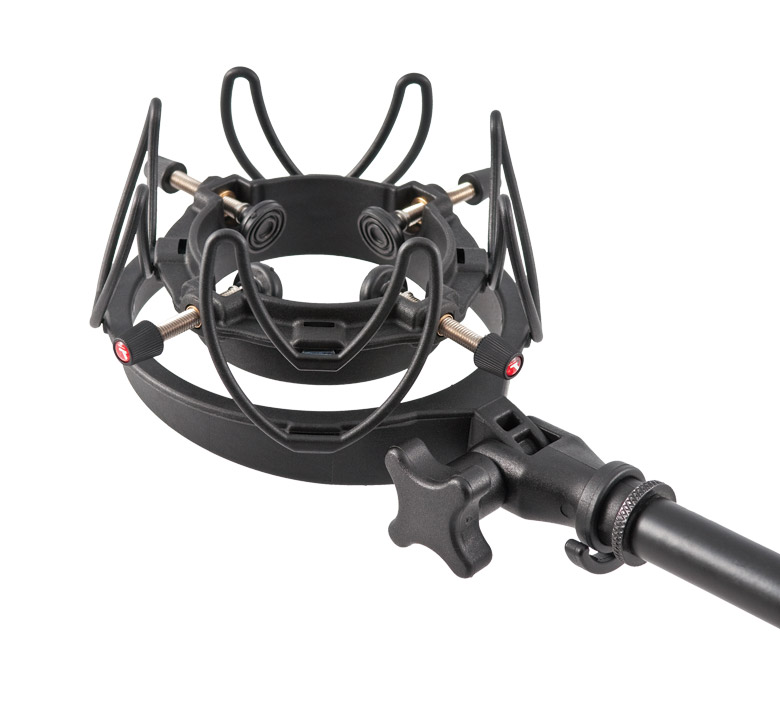

InVision USM, USM-L
Microphones are locked in the mounts by four soft, rubber grips on the end of precision-made stainless-steel thumbscrews with ridged plastic heads. The screws can be adjusted by hand to fit almost any shape and profile within 18-55 mm. The grip surface of the pads allows the mounts to hold the microphone securely, even when positioned head-down, with minimal pressure from the screws. Note that microphones must be fitted into the mounts so that their centre of gravity is close to the level of the outer ring of the mount.
Suspension weight: 154g. Overall diameter: 120mm. Length: 170mm. Depth: 70mm. Suspension rotation: 175 degrees. Thread: 3/8 and 5/8 inch.
USM
Microphone diameter 18-55mm. Microphone maximum weight: 500g with microphone horizontal, 750g with microphone vertical. Lyre colour: Black.
|
Make | Model |
|
AKG | C 12 VR, C 426 B, Perception 100, 200, 400 |
|
Audio-Technica | AT 2035, AT 2050, AT 3060, AT 4050, AT 4060, AT 4047/SV |
|
Beyerdynamic | M 99, MC 742 |
|
Dirk Brauner | Phantom C, Valvet, VM1 |
|
Electrovoice | RE27N/D |
|
Microtech Gefell | UM 92.1 S |
|
Milab | DM1001 |
|
Neumann | SM 69 fet, TLM 103, TLM 103D, TLM 193, M 147, TLM 50, TLM 67, U 87 Ai |
|
Nevaton | MC51, MC416. MC420, MC440, MC47, MC48 |
|
Oktava | MC 219, MC 220, MCL-319, MKL4000 |
|
Pearl | CT40, DS 60, DT 40, PML-CT40, PML-DT40 |
|
Rode | Broadcaster, NT1000, NT2, NT3 |
|
Sanken | CU-41 |
|
SE Electronics | R1 |
|
Shure | KSM32, KSM44 |
|
Superlux | CM-H8A, CM-H8B, CM-H8C |
USM-L
Microphone diameter 18-55mm. Microphone maximum weight: 250g with microphone horizontal, 700g with microphone vertical. Lyre colour: Red.
|
Make | Model |
|
AKG | C 1000 S, C 214, C 28, C 414 B-TL II, C 414 B-ULS, C 414 B-Xlii, C 414 B-XLS, C 522 ENG, C 522 MS, D 202, D 224, D 40 |
|
Audio-Technica | AE 2500-c, AE 2500-d, AE 3000, AT 2020, AT 3035, AT 3525, AT 4033a/CL, AT 4040, ATM 250, ATM 250DE-c, ATM 250DE-d |
|
Audix | D 6 |
|
Beyerdynamic | MC 740, MC 834, MC 840, MCD 100, MCD 101, MCE 90 |
|
Blue | Baby Bottle |
|
Microtech Gefell | M 930, M 940, M 990 |
|
Milab | DC-196, DC-96B, EMBLA, VIP-50 |
|
Neumann | TLM 102, U 89 I, SM 69 fet, TLM 103, TLM 103D, TLM 193, M 147, TLM 50, TLM 67, U 87 Ai |
|
Oktava | MC 101 |
|
Pearl | CC 22, CC 22H, CO 22, ELM-B, ELM-C, TL 4 |
|
Rode | M3, NT1, NT1-A |
|
Sanken | CU-44X |
|
Superlux | ECO-H6A |
