SIFAM AUDIO LEVEL METERS
A lower cost alternative to the standard range of Sifam full specification VU meters. The specification for the AL range is based on BS6840 : Part 17, IEC 268-17 : 1990, but does not fully meet the dynamic range characteristics.

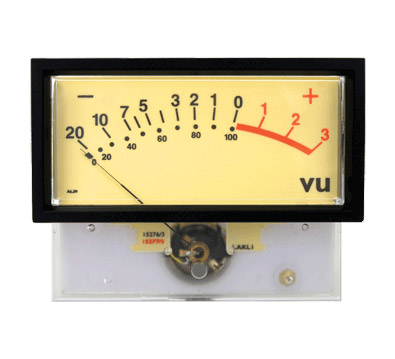

The AL-WF meters are suitable for rear of panel mounting, together with bezel, with a rear zero adjust and tab terminals as standard, except for AL20SQ which is front-mounted. Top illumination kits are available as optional accessories. Front-of-panel mounting versions are available to special order.
AL20SQ, which is a front-mounted, ‘vintage’ look meter, with rounded corner bezel, comes complete with 150mm flying leads and illumination.
The AL-RETRO meters are suitable for front of panel mounting, and feature the distinctive ‘vintage retro’ stylings of the AL20SQ. The casing is black ABS, with beige scale, with a rear zero adjust and 12V LED illumination as standard. AL15 has flying leads, AL19 has 6.3mm tab terminals.
|
Type | Panel cutout | Bezel | Depth from front of panel |
|---|
|
AL19WF | 47mm x 24mm | 49mm x 27mm | 41mm |
|
AL29WF | 80mm x 37mm | 83mm x 42mm | 43mm |
|
AL39WF | 98mm x 46mm | 101mm x 51mm | 44mm |
|
AL20SQ | 55mm dia. | 57.1mm x 57.1mm | 40.2 mm |
|
AL15-Retro | 27mm diameter | 36.5mm x 36.5mm | 32.8mm |
|
AL19-Retro | 27mm diameter | 46.3mm x 42.3mm | 31.0mm excl. tabs |
