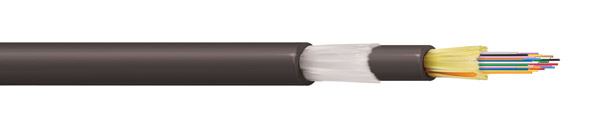

BELDEN GMRTD24 CABLE Universal; tactical mini-breakout, 50/125-OM3-Flex, 24 fibres, Black

Stock code
60-GMRTD24
Brand
Belden
Model number
  • GMRTD24
Colour
  • BlackBlack
BELDEN GMRTD24 CABLE Universal; tactical mini-breakout, 50/125-OM3-Flex, 24 fibres, Black
BELDEN GMRTD24 CABLE Universal; tactical mini-breakout, 50/125-OM3-Flex, 24 fibres, Black

Order

VAT / Delivery
$24.46
per metre (ex. VAT)
100+ $19.56
500+ $19.08
1,000+ $18.34
Ordered on demand, available in 1‑2 months. Need it sooner? Call us

BELDEN UNIVERSAL TACTICAL FIBRE CABLES - 50/125 OM3 MULTIMODE - Standard and Heavy-duty

A range of extremely rugged TAC (tactical) fibre cables designed specifically for the most demanding of indoor and outdoor applications including outside broadcast, touring, sporting venues and stadiums.


GMTTD Standard Tactical Fibre

Tight buffered construction exhibiting excellent impact and crush resistance. A PUR jacket offers flexibility as well as abrasion and chemical resistance, beneath the jacket is a swellable yarn which expands if it comes into contact with water and seals minor cuts or punctures. This compact round cable is easily reeled and has a low shape memory. Available with 2, 4, 6, 8, 12, or 24 cores. These multimode versions have a 50/125 OM3 core optimised for 850nm and 1300nm suitable for transmission rates up to 10Gbit/s.

Technical Specification

Fibre optic cores: Multi-mode 50/125 OM3
Buffer: Tight construction, Nylon, 0.9mm diameter
Strength member: Swellable aramid yarns
Outer Jacket: Polyurethane (PUR) with Polyester rip cord, black
Overall diameter: 2 fibres 5.4mm, 4 fibres 5.8mm, 6 fibres 7.0mm, 8 fibres 7.0mm, 12 fibres 8.2mm and 24 fibres 8.5mm
Weight (kg/1000m): 2 fibres 27kg, 4 fibres 31kg, 6 fibres 40kg, 8 fibres 41kg, 12 fibres 60kg and 24 fibres 71kg
Reel length: 2100m

GMRTD Heavy-duty Tactical Fibre

Tight buffered construction exhibiting excellent impact and crush resistance. PUR outer and inner jackets offer flexibility as well as abrasion and chemical resistance with swellable glass yarns between the two jackets acting as additional strength members. Beneath the inner jacket is a swellable yarn which expands if it comes into contact with water and seals minor cuts or punctures. This compact round cable is easily reeled and has a low shape memory. Available with 2, 4, 6, 12, or 24 cores. These multimode versions have a 50/125 OM3 core optimised for 850nm and 1300nm suitable for transmission rates up to 10Gbit/s.

Technical Specification

Fibre optic cores: Single-mode OS2 G.657.A1, 9.micron diameter
Buffer: Tight construction, Nylon, 0.9mm diameter
Strength members: Swellable glass and aramid yarns
Inner Jacket: Polyurethane (PUR) with Polyester rip cord
Inner Jacket diameter: 2 fibres 5.8mm, 4 fibres 5.8mm, 6 fibres 7.0mm, 12 fibres 8.2mm and 24 fibres 8.5mm
Outer Jacket: Polyurethane (PUR), black
Overall diameter: 2 fibres 9.2mm, 4 fibres 9.2mm, 6 fibres 9.9mm, 12 fibres 10.9mm and 24 fibres 11.3mm
Weight (kg/1000m): 2 fibres 87kg, 4 fibres 88kg, 6 fibres 99kg, 12 fibres 103kg and 24 fibres 200kg
Reel length: 2100m

All cables have a predicted life of more than 30 years.

Cut lengths: Available in any multiple of 1 metre
