Description
CANFORD HOOK AND LOOP CABLE TIES

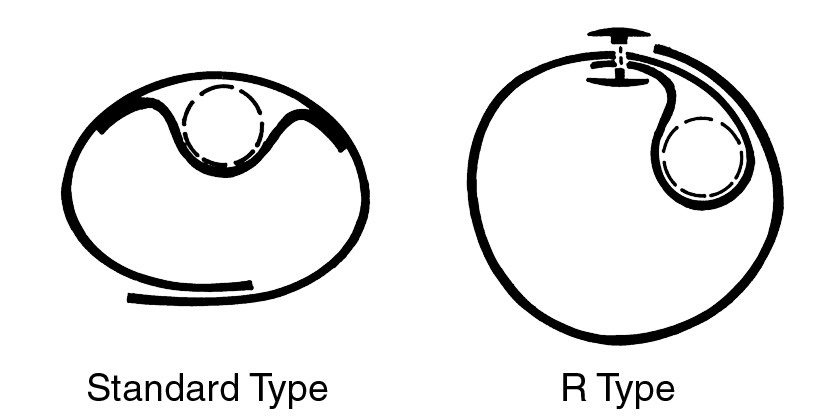

Standard series

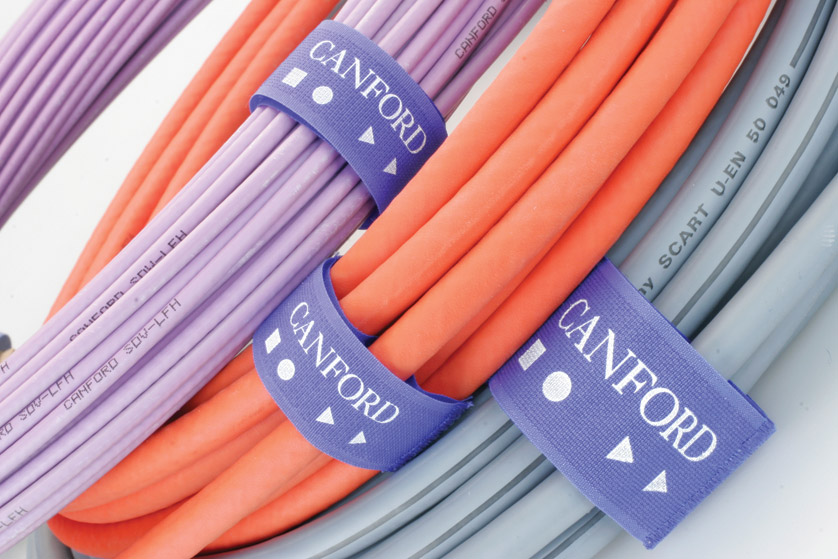

Another form of re-usable cable tie, based on the well established ‘hook and loop’ materials. Ties have a centre closed section of hook and loop which can be opened out to pass over connectors, and then closed down onto the cable to help prevent it slipping along the length of the cable. As the ends of the closed section are welded, the tie cannot fall off a cable. At either end of the tie are tabs, one hook, one loop, which then can be fastened down over the cable bundle when coiled. Available in blue, in three sizes.
|
| | Overall | Centre | Passes | Approx |
|---|
|
| Width | length | section | over | maximum |
|---|
|
Type | of tie | of tie | length | connectors | bundle diam. |
|---|
| |
|
140 | 16mm | 140mm | 50mm | 30mm diam | 35mm |
|
175 | 25mm | 175mm | 60mm | 38mm diam | 45mm |
|
300 | 38mm | 300mm | 60mm | 54mm diam | 85mm |
Riveted series
One end of this tie has two holes in punched in it. It is wrapped around the cable, then the two halves of the non-releasable plastic rivet supplied are then closed together to lock the tie onto the cable. The cable is then coiled or bundled, and the free end of the tie wrapped around, and fastened down onto itself. The advantage of this design is that it can be fitted onto all existing made-up cables, and cannot be removed without cutting, making it ideal for hire companies.
|
| | Overall length | | Approx |
|---|
|
| Width | of tie (rivet | Max cable | maximum |
|---|
|
Type | of tie | fastened) | diameter | bundle diam. |
|---|
| |
|
R240 | 25mm | 225mm | 11mm | 61mm |
|
R280 | 25mm | 265mm | 11mm | 73mm |
|
R350 | 38mm | 335mm | 11mm | 95mm |
|
R480 | 38mm | 465mm | 11mm | 135mm |
Overprinting
For orders of 250-999 pieces (mixed types), your own logo can be printed at an extra cost (check with sales staff for details). For orders of 1000 pieces or more (mixed types), your own logo can be printed at no extra cost. Allow 3-4 weeks for delivery of custom printed versions. Furthermore, there is a choice of additional material colours for these orders. A material colour sample picture is available from Technical Support, stock code 02-221.
