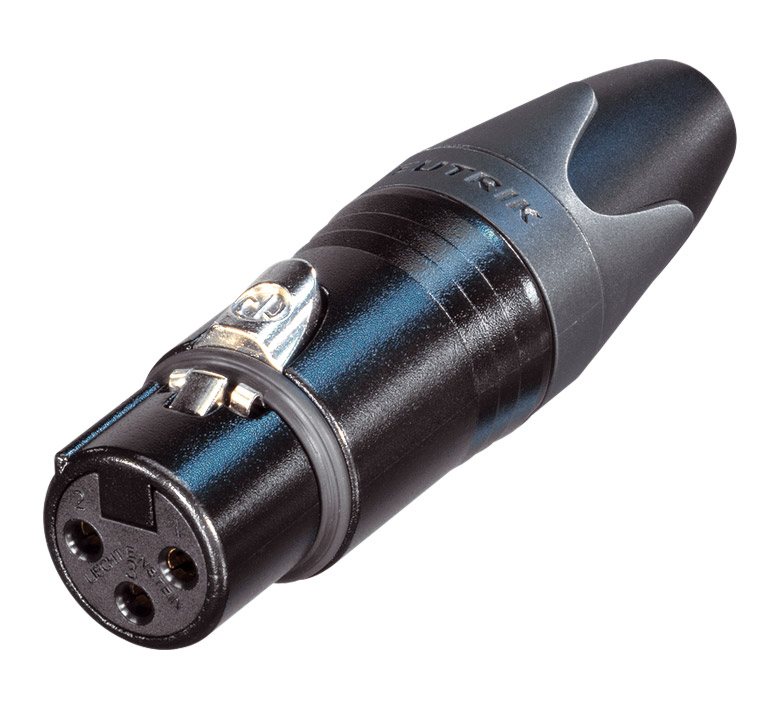

NEUTRIK XLR CABLE CONNECTORS - XX series
The Neutrik XX series is the successor to the 'industry standard' X series XLR cable connector, and offers several new features. It is available in 3, 4, 5, 6 and 7 pin configurations, with silver or gold plated contacts and nickel or black housings.
They are easy to assemble, with only four parts and no screws. The contact block is hard plastic (polyamide), and is inserted from the rear of the shell. The female contacts are a unique cage design, with seven independent contact springs for low contact resistance and high integrity, and incorporate a solder barrier to prevent solder running into the contact mating area. The female connector has an improved solid metal latch which is larger and easier to handle, plus a new feature of additional ground spring contacts for better shell ground continuity. The male has an improved locking recess for more secure mating retention. The Neutrik chuck design gives secure clamping onto all cables 3.5mm - 8.0mm diameter, and now provides a higher resistance to pull-out. An improved ratchet lock helps prevent accidental opening of the strain relief while in use. Glands with polyurethane strain reliefs give high protection to the cable against bending stresses. For larger cables, up to 9.6mm diameter, an alternative version with a larger chuck and special gland is available - see 'Neutrik XLR Cable Connectors: XX-14 series'.
Glands with moulded coloured flashes for identification (BXX series) are available - see 'Neutrik XLR Cable Connectors: XX series glands'. Colour coding rings are also available - see 'Neutrik XLR Cable Connectors: XX series rings'.
