35-5008 CANFORD CABLE DRUM CDP266XFM

each (ex. VAT) 1+ 10+
Price £ 69.84 67.74
CANFORD CABLE DRUM CDP266XFM
CANFORD CABLE DRUM CDP266XFMCANFORD CABLE DRUM CDP266XFM

Description

Product resources

CANFORD CABLE DRUMS - Plastic drum

This range of robust and lightweight cable drums all have plastic drums, with frames of either steel tube or moulded high-strength plastic. All have a friction drum-brake incorporated into the frame to prevent movement in transit. The drums have either a plain side flange, or a flange with a removeable plastic blanking-plate over the hub, which can be punched to accept connectors as required, or removed for access to the inner tail of the cable.

All models except CDP380 have a fixed winding-handle on the drum flange. The CDP380 has a folding handle Drums are orange, frames are black.

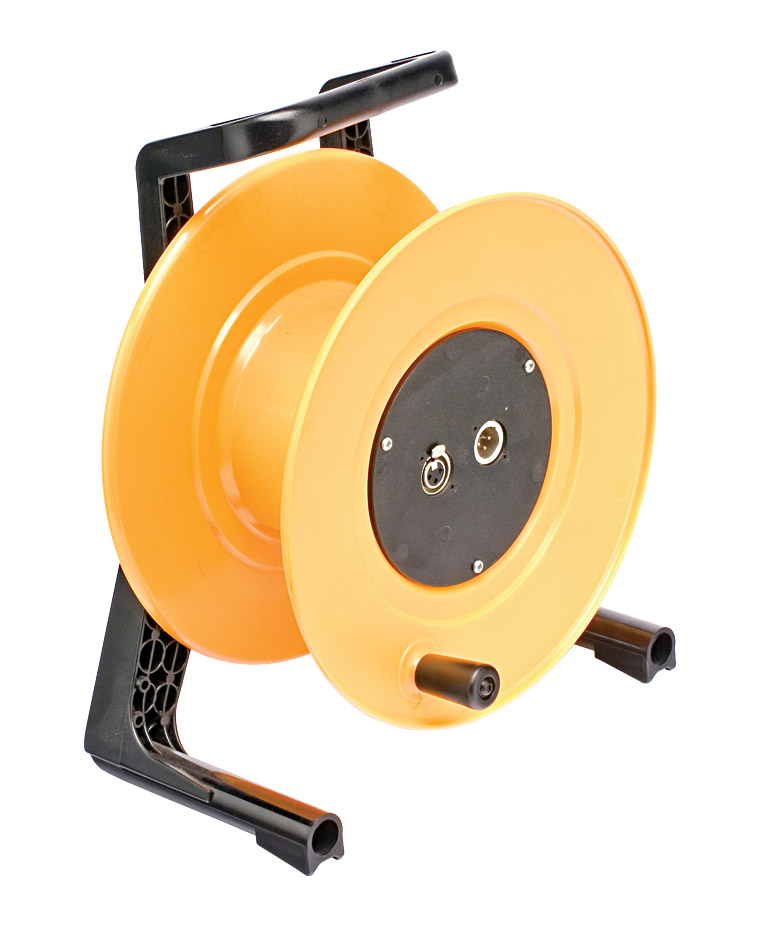

Cable drum type CDP266 is also available with the centre flange punched to accept 2 Neutrik D-series or Canford ‘Universal’ series connectors. CDP266UNI is supplied without connectors or mounting hardware. CDP266XFM is fitted with a Neutrik NC3FD-LX 3-pin female and an NC3MD-LX 3-pin male connector. Dimensions and capacity are the same as the standard CDP266.

CodeModelFlangeHubHubFlangeFrameWeight
diam.(mm)diam.(mm)width(mm)style(kg)
35-5001CDP240240mm135mm125mmPlainSteel2.00
35-5002CDP266280mm135mm110mmBlank platePlastic1.60
35-5003CDP280280mm153mm140mmBlank plateSteel1.80
35-5004CDP300305mm135mm125mmPlainPlastic2.14
35-5005CDP301305mm178mm142mmBlank plateSteel2.70
35-5006CDP380385mm178mm142mmBlank plateSteel4.30
CodeCapacities6.5mm cable12.5mm cable15.9mm cable
(tight pack)(HST, SDV-L)(FSM12, PSF1/9)(FSJ8, FSM24)
35-5001CDP24085m28m11m
35-5002CDP266108m22m17m
35-5003CDP280120m34m14m
35-5004CDP300161m36m20m
35-5005CDP301134m38m16m
35-5006CDP380260m70m36m
