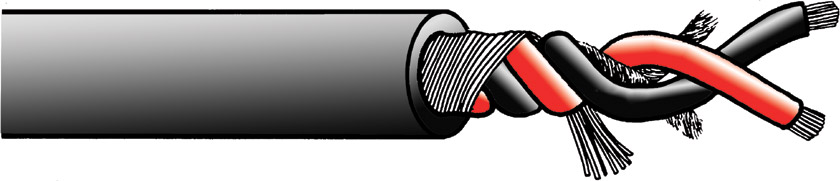

HSP-F - HELICAL SCREENED STRANDED CONDUCTOR DC POWER CABLE Flexible
A screened, twisted conductor, flexible cable for DC powering applications where switching transients or other noise may interfere with adjacent low level audio circuits. Conductor size is 0.5 mm sq., and the cable is printed "Screened DC power" along its length.
Technical Specification:
| Conductors: |
64/0.10mm (0.50 mm sq.) plain copper wire |
| Insulation: |
PVC O.D. 1.86mm, red, black |
| Voltage rating: |
500V DC |
| Current rating: |
3A |
| Twisting and lay: |
2 x 0.5 mm sq. plus 2 x cotton fillers 30mm lay length |
| Screen: |
0.1mm lapped plain copper wire, 95% optical coverage |
| Overall jacket: |
Soft semi-matt PVC, OD 6.2mm |
| Max. conductor resistance: |
4 ohms/100 metres |
| Weight: |
5.2 kg/100m |
| Reel lengths: |
100m and 500m |
| Cut lengths: |
Available in any multiple of 1 metre |
