Description
HEAT SHRINK SLEEVING - ADHESIVE LINED

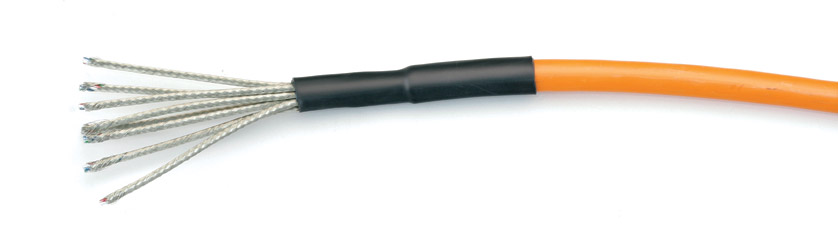

Semi-flexible laminated cross-linked polyolefin heat shrink tubing, internally coated with adhesive, which as the sleeve shrinks, melts and seals the components or cables contained. This material is ideal for producing Y-splits in cables and for terminating the ends of multicore looms formed using our Expandable Braided Sleeving, or where a foil screened multipair is split out into tails. Shrink temperature is approx 120°C. Colour: Black. Supplied in lengths of 1.2 metres, price per piece. Note that care should be taken to ensure that this product is not exposed to heat during storage. For prolonged storage it is recommended that the temperature is as low as possible to minimise shrinkage.
|
Size | Minimum ID | ID range after | Length (m) |
|---|
|
| before shrinking (mm) | shrinking (mm) | |
|---|
|
32 | 3.2 | 0.6-3.1 | 1.2 |
|
48 | 4.8 | 1.5-4.7 | 1.2 |
|
64 | 6.4 | 2.0-6.3 | 1.2 |
|
95 | 9.5 | 3.0-9.4 | 1.2 |
|
127 | 12.7 | 4.0-12.6 | 1.2 |
|
190 | 19.0 | 8.0-18.9 | 1.2 |
|
254 | 25.4 | 8.0-25.4 | 1.2 |
|
390 | 39.0 | 13.0-38.9 | 1.2 |
|
|
