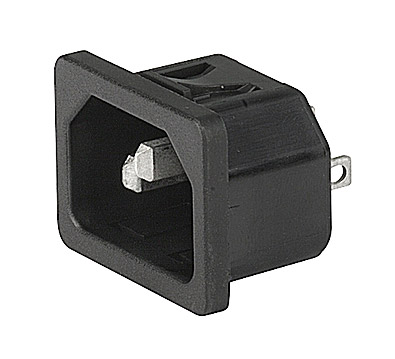

42-052 SCHURTER AC MAINS POWER CONNECTOR, IEC Male, panel 1.5mm, snap-in

each (ex. VAT) 1+ 10+ 50+ 100+
Price £ 1.22 1.17 1.11 1.06
SCHURTER AC MAINS POWER CONNECTOR, IEC Male, panel 1.5mm, snap-in

Description

SCHURTER IEC (CEE22) AC MAINS POWER CONNECTORS

IEC AC mains power connectors, non keyed (cold condition), 10 amp 250VAC 50/60Hz rated. Approvals: IEC/EN, UL, AS/NZS and CSA.

Cable Types

Rewireable male and female cable types with professional screw terminals (wire receptacle hole and cross clamp-screw). Wire size up to 3x1mm sq. (18 AWG).

Panel Types

Snap-in type, 42-052

Male (power inlet) snap-in type. Suitable for 1.5mm panel thickness. 6.3mm, Quick connect 'Faston' connection.
Panel cutout 27.5 +0.2/-0.0 x19.8mm +0.2/-0.0.

Flange type, 42-053

Male (power inlet) two hole flange type. 6.3mm, Quick connect 'Faston' connection.
Panel cutout 27.5 x 20.0mm min, screw hole centres 40.00mm, 3.5mm diameter.

Optional accessories: Moulded PVC insulating cover, stock code 42-159.

Alternatives

Right angled cable types, fused inlet and snap-in types for other panel thicknesses are available to special order, please contact Sales.
