Schurter

42-054

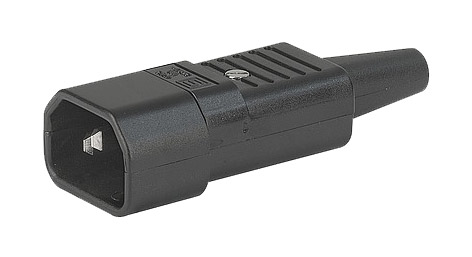

SCHURTER AC MAINS POWER CONNECTOR, IEC Male, cable

SCHURTER AC MAINS POWER CONNECTOR, IEC Male, cable
SCHURTER AC MAINS POWER CONNECTOR, IEC Male, cableSCHURTER AC MAINS POWER CONNECTOR, IEC Male, cable

SCHURTER IEC (CEE22) AC MAINS POWER CONNECTORS

IEC AC mains power connectors, non keyed (cold condition), 10 amp 250VAC 50/60Hz rated. Approvals: IEC/EN, UL, AS/NZS and CSA.

Cable Types

Rewireable male and female cable types with professional screw terminals (wire receptacle hole and cross clamp-screw). Wire size up to 3x1mm sq. (18 AWG).

Panel Types

Snap-in type, 42-055

Female (power outlet) snap-in type. Unshuttered. Suitable for use with 1.5mm panel thickness. 3.5mm solder terminals. Panel cutout 32.5 x 24.8mm.

Snap-in type, 42-052

Male (power inlet) snap-in type. Suitable for 1.5mm panel thickness. 6.3mm Quick connect 'Faston' spade connection.
Panel cutout 27.5 +0.2/-0.0 x 19.8mm +0.2/-0.0.

Flange type, 42-053

Male (power inlet) two hole flange type. 6.3mm Quick connect 'Faston' spade connection.
Panel cutout 27.5 x 20.0mm min, screw hole centres 40.00mm, 3.5mm diameter.

Optional accessories: Moulded PVC insulating cover, stock code 42-148 and 42-159.

Alternatives

Right angled cable types, fused inlet and snap-in types for other panel thicknesses are available to special order, please contact Sales.

  Description Price (£) Add to basket
SCHURTER AC MAINS POWER CONNECTOR, IEC Female, cable   Stock code:
Please login for stock availability and lead times.
1+ £2.58
10+ £2.47
50+ £2.35
100+ £2.23
SCHURTER AC MAINS POWER CONNECTOR, IEC Male, cable   SCHURTER AC MAINS POWER CONNECTOR, IEC Male, cable Stock code: 42-054
Please login for stock availability and lead times.
1+ £3.52
10+ £3.36
50+ £3.20
100+ £3.05
SCHURTER AC MAINS POWER CONNECTOR, IEC Female, panel 1.5mm, snap-in   Stock code:
Please login for stock availability and lead times.
1+ £0.77
10+ £0.74
50+ £0.70
100+ £0.67
SCHURTER AC MAINS POWER CONNECTOR, IEC Male, panel 1.5mm, snap-in   Stock code:
Please login for stock availability and lead times.
1+ £0.71
10+ £0.68
50+ £0.64
100+ £0.61
SCHURTER AC MAINS POWER CONNECTOR, IEC Male, panel, flange, 2 hole   Stock code:
Please login for stock availability and lead times.
1+ £0.67
10+ £0.64
50+ £0.61
100+ £0.58
IEC MAINS Insulating cover for female panel types   Stock code:
Please login for stock availability and lead times.
1+ £0.82
10+ £0.78
50+ £0.74
100+ £0.71
CANFORD REAR INSULATING COVER For IEC AC mains panel connector   Stock code:
Please login for stock availability and lead times.
1+ £0.80
10+ £0.76
50+ £0.73
100+ £0.69
