41-103 NEUTRIK XLR NC3FXX-HA-BAG Female cable, crimp

each (ex. VAT) 1+ 10+ 50+ 100+
Price £ 3.06 2.77 2.58 2.27

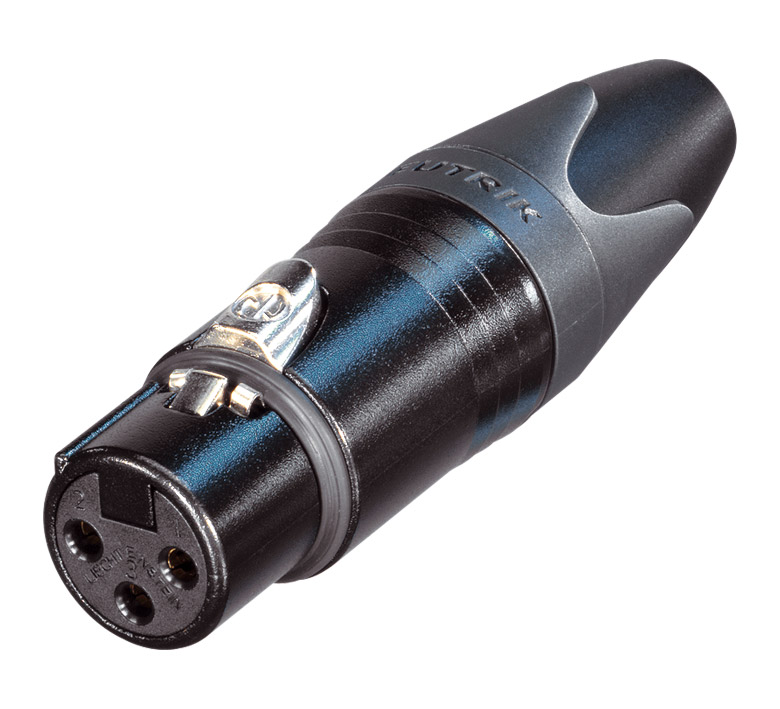

NEUTRIK XLR NC3FXX-HA-BAG Female cable, crimp

Description

NEUTRIK XLR CABLE CONNECTORS - XX-HA series - Crimp

A version of the XX series with crimp contacts instead of the usual solder types. The crimp termination is with the standard 'B-crimp' tool (IEC standard IEC 60352-2). The contacts are fitted onto the cable, and then inserted into the connector housing. They can be removed if necessary by rotating them through 90 degrees. Spare crimp contacts are available in packs of 50.

Whilst standard crimp tools can be used, Neutrik type HX-R-BNC together with die set DIE-R-HA-1 are suitable.

Glands with moulded coloured flashes for identification (BXX series) are available - see 'Neutrik XLR Cable Connectors: XX series glands'. Colour coding rings are also available - see 'Neutrik XLR Cable Connectors: XX series rings'.
