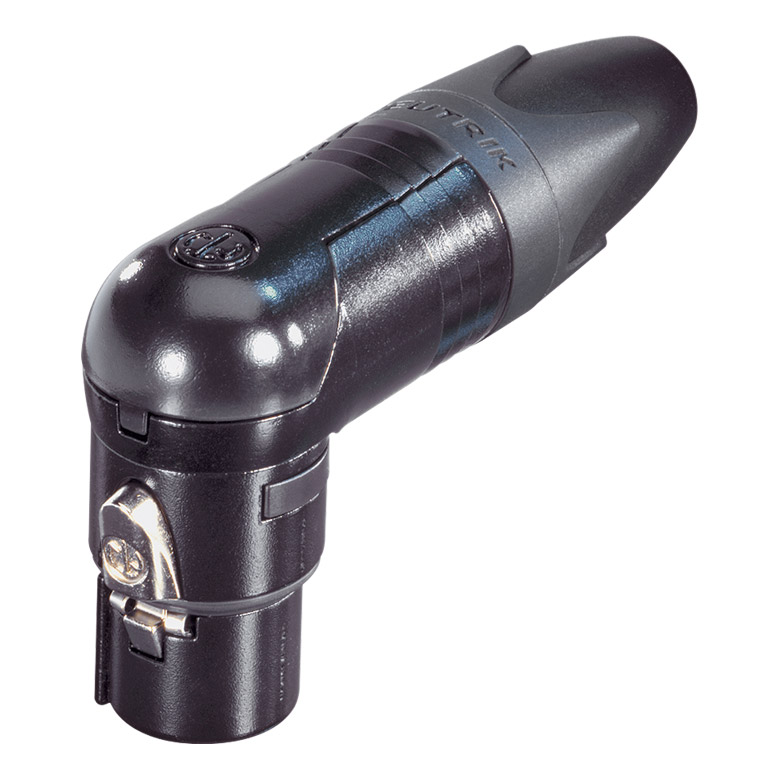

NEUTRIK XLR CABLE CONNECTORS - RX series
The RX Series is the right angle version of the XX cable connector series. The successor to the RC series, they offer several new features which make it easier to assemble and to have improved contact integrity as well cable strain relief. The contact assembly can be set at 45°intervals relative to the cable entry housing, giving a total of five possible positions of the contacts relative to cable entry, thus allowing the highest possible packing density in crowded applications.
They are easy to assemble, with only four parts and no screws. The contact block is hard plastic (polyamide), and is inserted from the rear of the shell. The female contacts are a unique cage design, with seven independent contact springs for low contact resistance and high integrity, and incorporate a solder barrier to prevent solder running into the contact mating area. The female connector has an improved solid metal latch which is larger and easier to handle, plus a new feature of additional ground spring contacts for better shell ground continuity. The male has an improved locking recess for more secure mating retention. The Neutrik chuck design gives secure clamping onto all cables 3.5mm - 8.0mm diameter, and now provides a higher resistance to pull-out. An improved ratchet lock helps prevent accidental opening of the strain relief while in use. Glands with polyurethane strain reliefs give high protection to the cable against bending stresses.
Glands with moulded coloured flashes for identification (BXX series) are available - see 'Neutrik XLR Cable Connectors: XX series glands'. Colour coding rings are also available - see 'Neutrik XLR Cable Connectors: XX series rings'.
