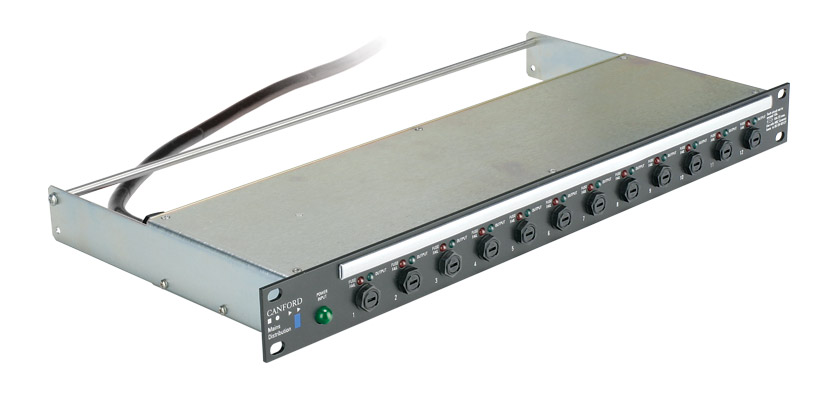

CANFORD MDU9 AC MAINS POWER DISTRIBUTION UNIT 32 Amp - 12x Powercon outlet - 3m fixed lead inlet
This range of twelve-way, Powercon outlet, AC mains power distribution panels with a 32 amp, unterminated, orange, fixed-lead inlet is housed in a compact 1U rackmount case. All versions have on the front panel un-switched neon power present indicator, fuse and dual LED indication of power status for each of the output channels. Inlet and outlets are on the rear panel.
The fuses on the front panel have adjacent green and red LEDs. Green illuminated indicates that the circuit is powered correctly. Red illuminated (and green off) indicates that the fuse has failed.
All outputs are numbered front and rear for easy identification and a designation- strip holder with snap-on cover is fitted on the front panel. The paper strips supplied may be inserted before or after installation; 7.5mm of printable height is available. Autocad templates for printing designation strips are available for download from the Tech Zone at www.canford.co.uk or by contacting Technical Support. Spare designation-strip inserts (not suitable for printers) 45-3082 and spare clear covers 45-3092 are available.
These units can be supplied with inlet cable terminated with 16 amp plugs, to special order.
Lacing Bars
A single-rod lacing-bar is fitted, which can be moved to an alternative fixing position if desired.
Standard
The front panel has an un-switched neon indicator, independent outlet fuses with status indicators.
The rear panel has a 32 amp, 3 metre, unterminated, orange, fixed-lead inlet and twelve Powercon outlet connectors. An earth stud is fitted.
All types are available finished in Dawn Grey or Black front panels, with either red or green ‘input power present’ neon indicator on the front panel.
Mating connectors are NOT included and should be ordered separately as required.
Required accessories:
Output connectors: Neutrik Powercon type NAC3FCB, stock code 42-022.
Moulded mains leads: A large range are offered, see ‘AC Mains Power Leads’.
Locking, moulded, mains leads: Patented, locking IEC leads, see ‘AC Mains Power Leads - IEC-Lock’.
Optional accessories:
Additional lacing bar kit.
Technical Specification:
|
Voltage: | 198-254V AC |
|
Maximum outlet load: | 10A per outlet |
|
Maximum total load: | 32A |
|
Outlet fuses: | 10A (T) HBC ceramic, to BS EN 60127 |
|
Maximum in-rush current: | 100A (MDU-S versions) |
Dimensions and weight:
|
| Depth excluding | Depth including | Weight |
|---|
|
| lacing-bar | lacing-bar | (maximum) |
|---|
|
Standard | 130mm | 230mm | 1.7kg |
All types are 1U, 19-inch rack mounting, 44 x 483 (h x w) mm.
