95-647 SONIFEX RB-PMX4 MATRIX MIXER 10x4, balanced line, XLR, hidden selection presets, 1U rackmount

each (ex. VAT) 1+
Price £ 349.90
SONIFEX RB-PMX4 MATRIX MIXER 10x4, balanced line, XLR, hidden selection presets, 1U rackmount
SONIFEX RB-PMX4 MATRIX MIXER 10x4, balanced line, XLR, hidden selection presets, 1U rackmountSONIFEX RB-PMX4 MATRIX MIXER 10x4, balanced line, XLR, hidden selection presets, 1U rackmountSONIFEX RB-PMX4 MATRIX MIXER 10x4, balanced line, XLR, hidden selection presets, 1U rackmount

Description

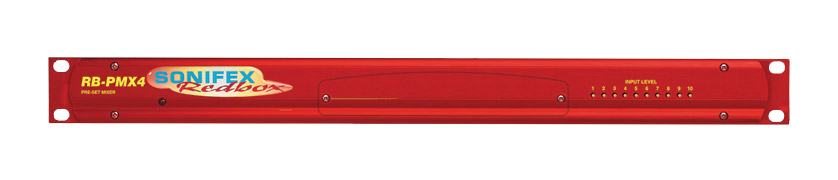

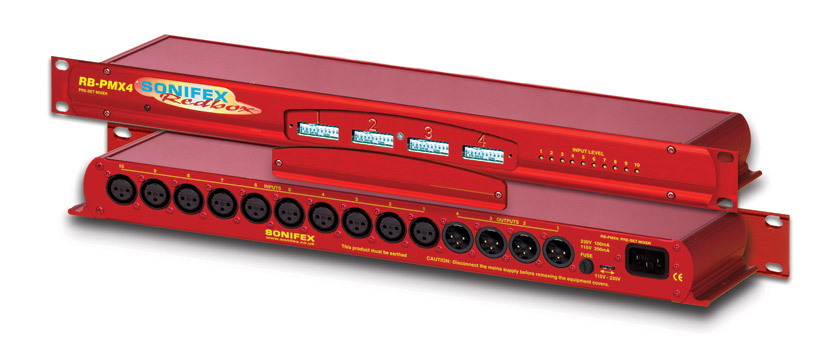

SONIFEX REDBOX RB-PMX4 Preset Mixer

A preset mixer with ten mono inputs and four mono outputs, in a 1U rack mounting case. Any input may be routed to any of the outputs using switches behind a cover on the front panel. Uses include a multiple clean-feed generation, zone mixing and multiple stereo to mono conversion.

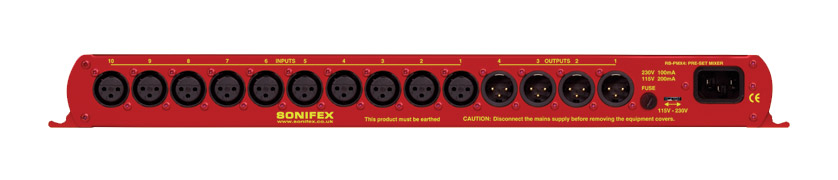

The inputs and outputs are electronically balanced, use XLR connectors and can be wired unbalanced. Each input has a gain control accessible through the front panel, with sufficient range to accommodate consumer and professional equipment at input and output.

Technical Specification:

Input impedance:Greater than 20kohms, balanced
Maximum input level:+36dBu
Common mode rejection:Greater than 60dB typically
Gain range:-8dBu to +18dBu
Off-isolation / crosstalk:Greater than 90dB at 1kHz
Frequency response:20Hz to 20kHz, +/- 0.1dBu, 600ohm load,1kHz
Distortion:Less than 0.01%, 1kHz, 0dBu to +26dBu
Noise:-86dBu RMS 22Hz-22kHz unity gain, ref +8dBu
Output impedance: Less than 50ohms
Maximum output level:+28dBu
Power source:110-120V, or 220-240V AC, 6W maximum, switchable
Dimensions 480 x 108 x 420 (w x d x h) mm
Weight:1.5kg

Included accessories: Handbook, IEC supply cable with plug. Optional accessories: RB-RK3 rear panel rackmount kit for reverse mounting.
