Description

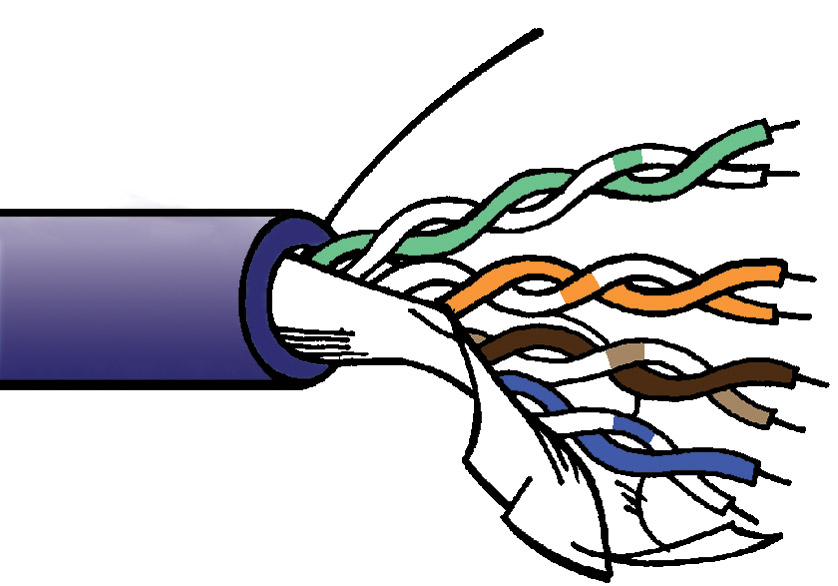

CAT5E-F - DEPLOYABLE CATEGORY 5E DIGITAL AUDIO AND DATA STRANDED CONDUCTOR SCREENED MULTIPAIR CABLE Flexible
Increasing use of network and data cables between audio and video devices on location calls for a Category 5E cable that is designed specifically for deployable use. Basic Category 5E F/UTP is a relatively inflexible installation cable, and even the slightly more flexible patchcord type still has very poor handling characteristics. This Category 5E cable has been designed specifically for the professional audio and video user, and is intended to handle like a typical microphone cable. It has an extra-flexible four-pair core structure, that maintains Category 5E performance, a foil screen, then a special soft PVC composite material outer jacket, to give superb flexibility and handling characteristics.
It is available in a variety of colours, plus a special “metallic silver” (non-conducting!) version specifically for “high tech” in-vision applications. It is suitable for use with both standard RJ45 connectors (round entry version), the Neutrik Ethercon and most other ruggedised RJ45 designs, or any other connector with a suitably sized entry gland.
The cable is also suitable for DMX512 applications.
“Category 5E” is a computer industry 100 ohm specification, suitable for both AES/EBU digital audio and computer LAN data rate up to 100 Mbit/s. The maximum recommended run length for full Category 5E data performance is defined by the Category 5E specification as 95 metres, but for other digital and analogue applications, runs of up to 800 metres are possible. “F/UTP” denotes “overall foil screened twisted pair”, and is an industry standard abbreviation.
Technical Specification:
|
Conductors: | 7/0.16mm (0.14mm sq.) plain copper |
|
Insulation: | Foamed polyethylene, according to CW1308 colour code (see Technical Data at back of catalogue) |
|
Lay-up: | Two insulated conductors twisted together, pairs twisted together. |
|
Screen: | Aluminium/polyester tape (aluminium side in) |
|
Drain wire: | 7/0.2mm tinned copper wire (0.22mm sq.), laid up with cores |
|
Overall jacket: | Soft semi-matt PVC, 0.85mm radial thickness, OD.6.2mm, various colours |
|
Minimum bending radius: | 60mm |
|
Impedance: | 100 +/- 15 ohms |
|
Conductor resistance: | 14 ohms/100m |
|
Capacitance: | 50pF/m |
|
Velocity ratio: | 66% |
|
Attenuation: | 2.07dB/100m (1MHz), 6.56dB/100m (10MHz), 21.97dB/100m (100MHz) |
|
Near end crosstalk: | 62dB (1MHz), 47dB (10MHz), 32dB (100MHz) |
|
Operating temperature range: | -30 to +90°C |
|
Weight: | 4.0kg/100m |
|
Reel length: | 500 metre reels |
|
Cut lengths: | Available in any multiple of 1 metre |
