Description

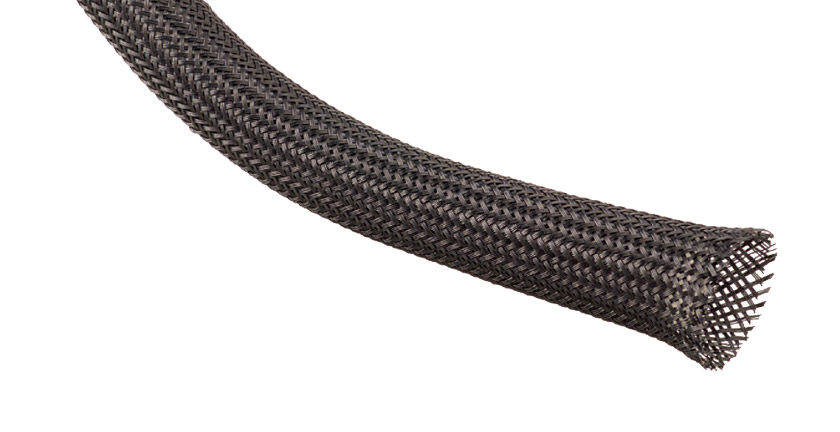

BRAIDED SLEEVING - EXPANDABLE - Fray resistant

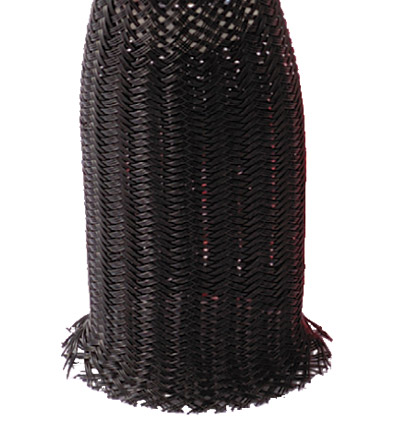

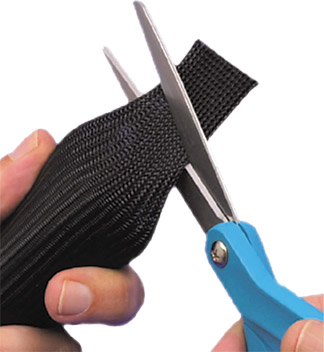

This sleeving consists of polyethylene terepthalate (PET) filaments braided in such a way as to allow the diameter to expand by 70% either by compressing the sleeving or by the insertion of cable and/or components. It is principally useful for looming a number of different cables together. This type is designed specifically to be cut with scissors and to maintain a remarkably fray-resistant end. The properties of the material allow frequent expansion at the cut end without unravelling. It is ideal for on-site use where a hot knife cutter is unavailable.
Supplied cut to length as required and charged according to the total length of size ordered, but note that the maximum single piece length available is limited to the stock coil length. Length is measured at minimum diameter, note that expanding the diameter results in a reduction in length. Colour: Black.
|
Size | Min. bundle diam. (mm) | Max. bundle diam. (mm) | Stock coil length (m) |
|---|
|
4 | 3 | 6 | 30 |
|
6 | 4 | 11 | 30 |
|
9 | 5 | 16 | 30 |
|
12 | 6 | 19 | 30 |
|
18 | 16 | 25 | 23 |
|
24 | 19 | 30 | 15 |
|
31 | 25 | 38 | 15 |
|
38 | 31 | 51 | 15 |
