RDL DIN RAIL MOUNTING ACCESSORIES
Many of the popular Radio Design Labs modules lend themselves to installation in service ducts, wall cabinets and co-located with control equipment. RDL offer mounting adapters to fix them to the DIN rails used commonly in these environments.

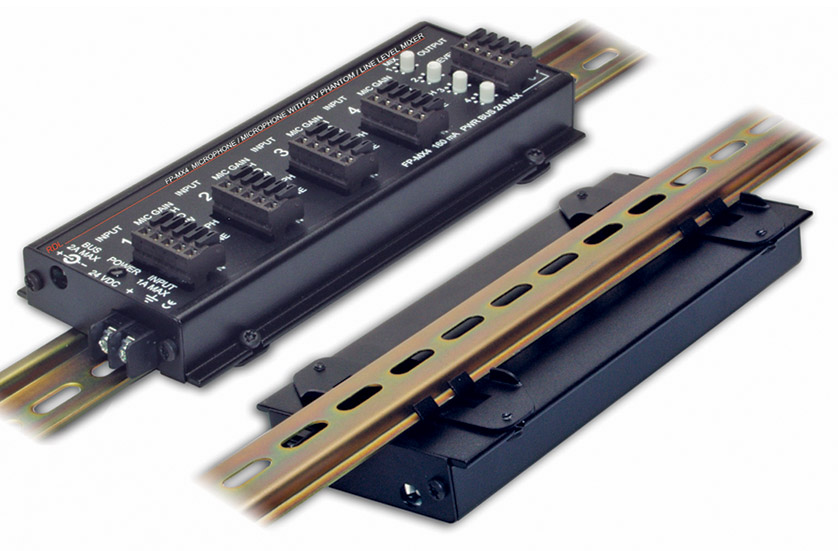

DRA-35F Flat-Pak DIN Rail Adapter
A pair of two-part brackets which clip onto a 35mm ‘top hat’ DIN rail. Any Flat-Pak can then be attached to the brackets with the screws supplied.

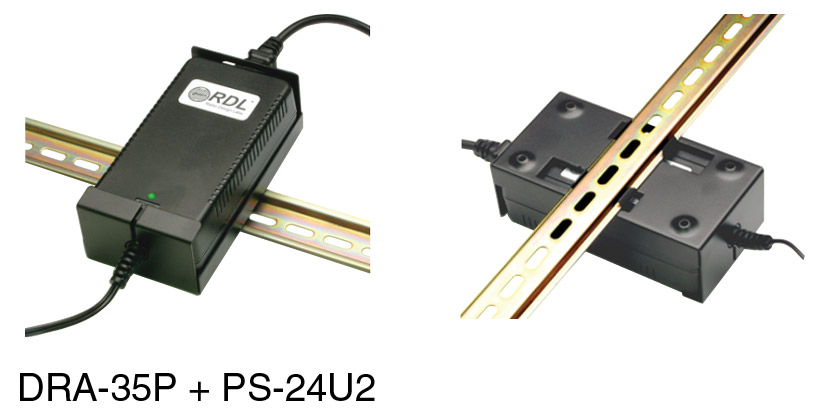

DRA-35P Power Supply DIN Rail Adapter
A metal frame fits round a PS-24V2 or PS-24U2 power supply, and is fixed onto a 35mm ‘top hat’ DIN rail with a detachable metal clip. Fixing holes in the frame allow for mounting directly to a surface as an alternative to the DIN rail.
DRA-35R Rack-Up DIN Rail Adapter
A metal bezel-style frame which attaches to a Rack-up module using two screws. It fixes to a 35mm ‘top hat’ DIN rail with a detachable metal clip. Fixing holes in the frame allow for mounting directly to a surface as an alternative to the DIN rail.
DRA-35S Stick-On DIN Rail Adapter, single module
A two part metal clamp which grips a single Stick-On module, simultaneously clipping to a 35mm ‘top hat’ DIN rail.
DRA-35S6 Stick-On DIN Rail Adapter, six module
A ‘U’-shaped metal frame which has six metal shelves which may be removed by hand. A Stick-On module is attached to each shelf using the adhesive tabs supplied with the module, the shelf is inserted into the frame and pressed to latch. The frame fixes to a 35mm ‘top hat’ DIN rail with a detachable metal clip. Fixing holes in the frame allow for mounting directly to a surface as an alternative to the DIN rail.
DRA-35T TX series DIN Rail Adapter
A metal plate which attaches to TX series modules with two screws. The plate fixes to a 35mm ‘top hat’ DIN rail with a detachable metal clip. Fixing holes in the plate allow for mounting directly to a surface as an alternative to the DIN rail.
