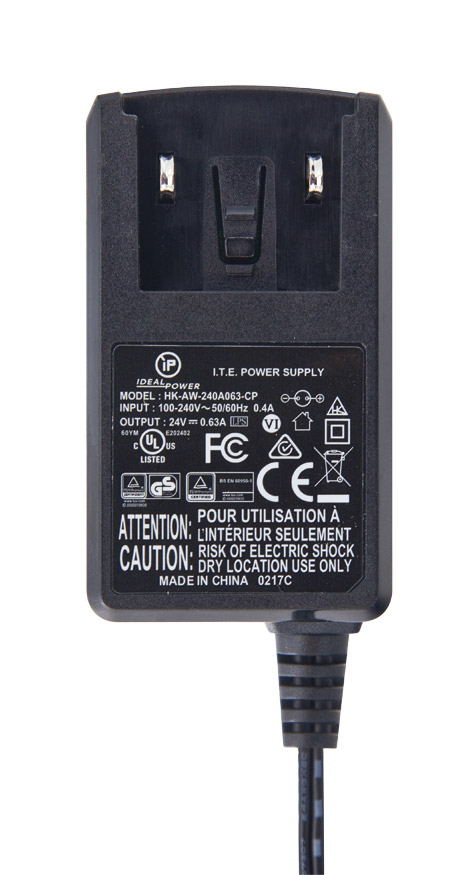

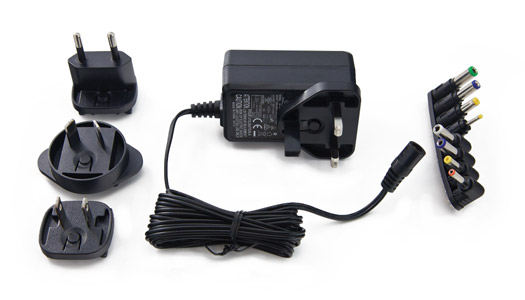

These compact, switched-mode, plug-top supplies are supplied with five interchangeable contact assemblies, to suit the sockets in many countries. There are four types, offering either 9V, 12V, 15V or 24V outputs.
Each model has a captive cable for the single voltage output, terminated with a two-pin cable socket which connects to one of the eight output adapters, which may be rotated to alter polarity. These offer a range of co-axial connections, covering most applications. Straight and right-angled types are included.
The supplies are protected against short circuits, have an efficiency greater than 85%, and have a 'very low power consumption' of less than 0.10W.
Operating temperature: 0 - 40 degrees C. Interchangeable contact assemblies supplied: UK, USA, EURO and Australian. Power source: 90 - 262V AC, 50/60Hz. Output: 15VA. Dimensions: 41 x 34 x 71 (w x h x d) mm, excluding contact assembly. Cable length: 1.82m.
