FRIWO UNIVERSAL PLUG-TOP POWER SUPPLY 6VA 9 Volt

Stock code
23-952
Brand
Friwo
FRIWO UNIVERSAL PLUG-TOP POWER SUPPLY 6VA 9 Volt

FRIWO UNIVERSAL PLUG-TOP POWER SUPPLIES

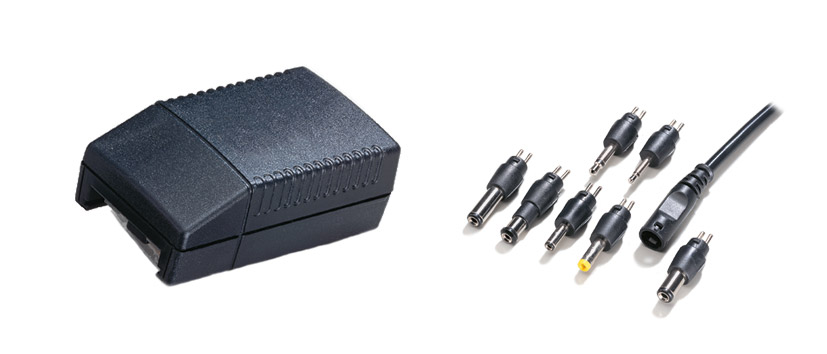

Compact switched-mode plug-top supplies with interchangeable mains-supply contact-pin assemblies for use in most countries. Contact assemblies are ordered separately. 23-929 does not have an interchangeable assembly and is supplied with a fixed UK contact assembly. The interchangeable contact assembly has a recessed 2-pin male figure-of-8 mains connector, which accepts a figure-of-8 mains cordset, as supplied with some domestic VCR’s and Hi-fi equipment, for use where it is impractical to plug a PSU directly into the mains outlet socket.
Supplies have single-voltage output and all except 23-929 have an intermediate connector and seven polarity-reversible final plugs, covering most applications. 23-929 has a moulded 2.1mm right-angled co-axial connector.

Approvals: CE, BABT, VDE, UL, CSA, SEV, KEMA, SEQEB, SEMKO, DEMKO, NEMKO, FIMKO.

Technical Specification:
Input: 94 - 263 V AC 50/60Hz
6VA 15VA
Output 9V DC: 0.55A -
Output 12V DC: - 1.25A
Output 15V DC: 0.36A -
Output 24V DC: - 0.62A
Dimensions mm
(w x h x d) excl.
contact assembly: 57 x 65 x 28 52.3 x 88 x 34
Weight: 100g 160g
Ordering note:

The power supply body and mains connector assembly should be ordered separately as required. 23-929 is supplied with a fixed UK contact assembly.

  Description Price (£) Add to basket
Show carriage
FRIWO UNIVERSAL PLUG-TOP POWER SUPPLY 6VA 9 Volt   Stock code: 23-952
Please login for stock availability and lead times.
£13.28
Clearance £5.00
FRIWO UNIVERSAL PLUG-TOP POWER SUPPLY 6VA 15 Volt   Stock code: 23-954
Please login for stock availability and lead times.
£13.28
Clearance £5.00
FRIWO UNIVERSAL PLUG-TOP POWER SUPPLY 15VA 12 Volt   Stock code: 23-923
Please login for stock availability and lead times.
£35.99
Clearance £5.00
FRIWO UNIVERSAL PLUG-TOP POWER SUPPLY 15VA 24 Volt   Stock code: 23-925
No longer manufactured. See the product page for suggested alternatives.
FRIWO UNIVERSAL PLUG-TOP POWER SUPPLY 15VA 12 Volt with right-angle plug   Stock code: 23-929
Please login for stock availability and lead times.
£27.50
Clearance £15.00
FRIWO UNIVERSAL POWER SUPPLY Contact assembly, figure-of-8   Stock code: 23-935
No longer manufactured. Please contact Technical Support for advice on alternatives.
