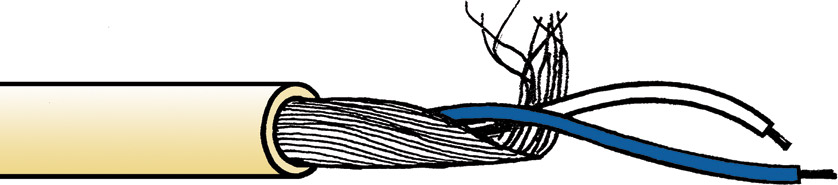

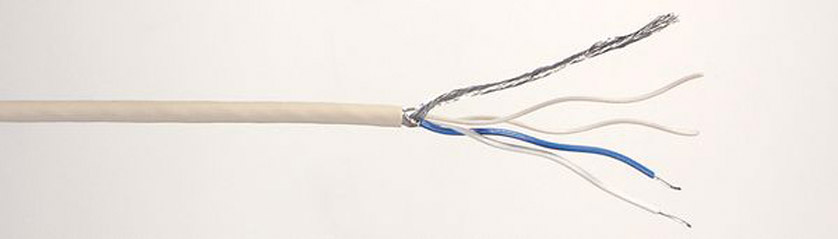

KHT-HD - HELICAL SCREENED SOLID CONDUCTOR TWIN CABLE (BBC PSN2/3)
Twisted pair helical screened cable to a BBC specification. Suitable for permanent wiring in trunking and between equipment. Suitable for termination onto Krone frames but the screen must be made off to a single wire.
Technical Specification:
BBC specification: |
PSN2/3M |
Voltage rating: |
750V dc |
Conductors: |
1/0.5mm (0.2mm²) |
Current rating: |
1A |
Insulation: |
PVC blue, white |
Screen: |
40/0.2mm closely lapped |
Overall jacket: |
PVC, 4.0mm OD, cream |
Conductor resistance: |
92.2 ohms/km |
Capacitance (nom): |
86pF/m |
Weight: |
2.9kg/100m |
Reel length: |
500m |
Cut lengths: |
Available in any multiple of 1 metre |
