CANFORD BSU CABLE 8 core (BBC PSF8/2), Black

Stock code
34-108
Brand
Canford
Model number
  • BSU
Colour
  • BlackBlack

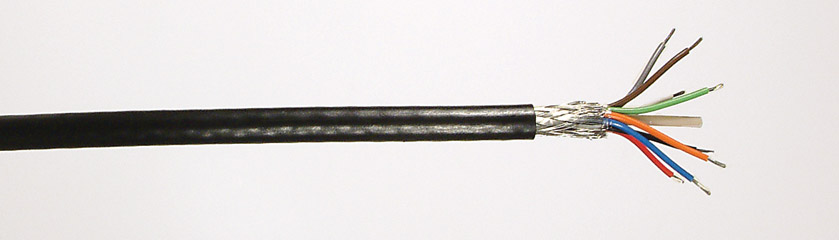

CANFORD BSU CABLE 8 core (BBC PSF8/2), Black

Image may be provided for illustrative purposes only, please refer to the product description.

CANFORD BSU CABLE 8 core (BBC PSF8/2), BlackCANFORD BSU CABLE 8 core (BBC PSF8/2), Black

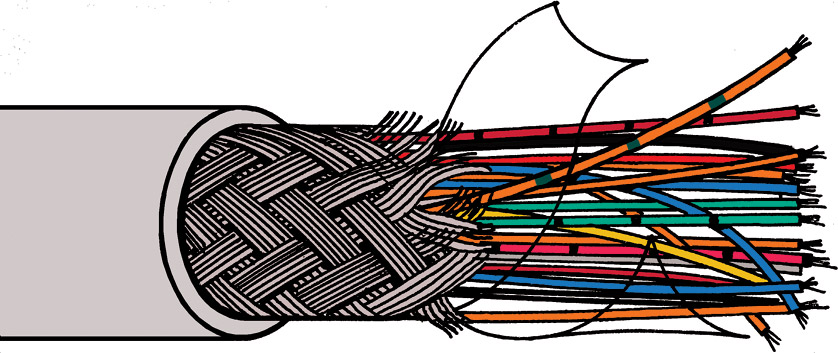

BSU - BRAID SCREENED STRANDED CONDUCTOR MULTICORE CABLE (not paired)

This flexible unpaired screened multicore cable, to a BBC specification, is similar to DEF STAN 7-2-*C series but with a different colour code system, based on the BBC colour codes (see technical data section at the back of the catalogue).

Technical Specification:

BBC specification: PSF8/2M (BSU8)
Voltage rating: 750V DC
Conductors: 7/0.2mm (0.22mm sq.) tinned copper wire
Current rating: 1A per conductor
Insulation: PVC. For colour codes see technical data section
Screen: 90% cover 0.15mm
Overall jacket: PVC, black
Overall diameter: 6.2mm (BSU8)
Conductor resistance: 92 ohms/km
Weight: 6.7kg/100m (BSU8)
Reel length: 100m, 500m
Cut lengths: Available in any multiple of 1 metre
