AC mains power distribution strips with dual 10A inlets, independently connected to two groups of seven IEC outlets. These units offer a convenient and space-saving method of distributing parallel power supplies from the same MDS unit where a backup supply or UPS is required or where the total current required must be drawn from separate breaker or supply sources. Designed to mount vertically or horizontally within the rear of a rack, inside flight cases or be flush mounted on walls or under work stations. A multi-position lacing bar option caters for most IEC cable connector types.

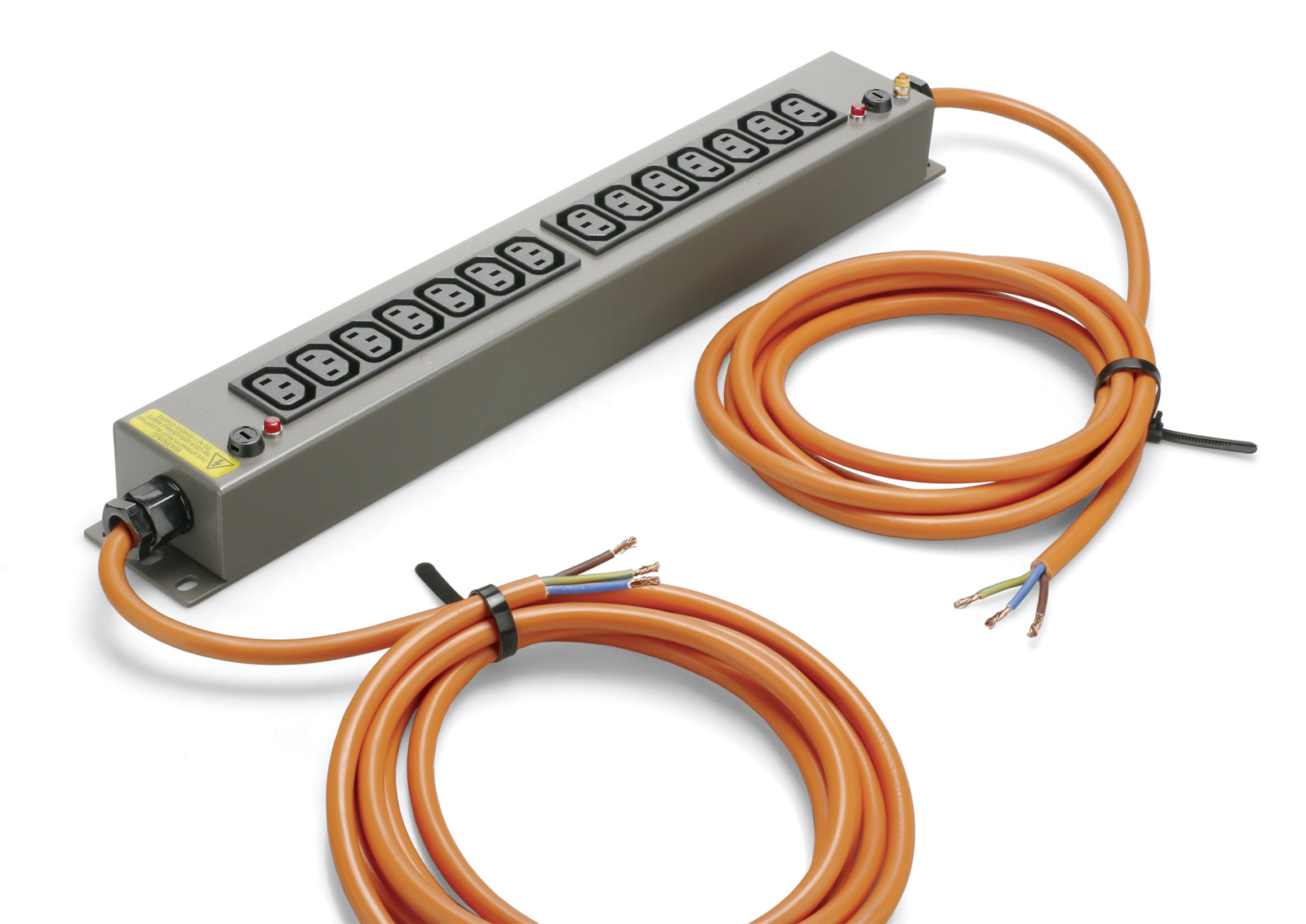

The two 10 amp inlets independently supply two groups of seven IEC outlets, each group is rated at 10 amps total. Each group of seven outlets is fitted with a 10 amp fuse and power present neon lamp. Power inlets are via either cable glands and internal screw terminal blocks, 3m fixed un-terminated orange leads, or by 20 amp Powercon connectors. Cable glands and fixed leads are located on the MDS case ends, the Powercon inlets are located on the front panel adjacent to the IEC outlets.
Note: The inlet supplies are independently connected within the MDS to the two groups of seven IEC outlets; there is no internal switching or changeover.
The units are 19 inches long so may be horizontally mounted inside a rack if the Powercon version is used, or if there is sufficient space to route the inlet cable at the side of the rack strip.
MDS units are constructed from steel and have three-hole mounting flanges at each end. Finished in dark grey.
Required accessories: MDS5 will require two NEUTRIK POWERCON NAC3FCA Mains input cable connectors, stock code 42-021.
Optional accessories: Lacing bars, see below. See also: AC mains power leads - IEC-lock, AC mains power leads - IEC standard, IEC AC mains connectors.
Lacing Bars
As IEC cable plugs vary enormously in size and design, it is not possible to define a wire retaining-clip which is universal. To overcome the challenge of securing all IEC connector types, both re-wireable and moulded, a double-rod lacing bar may be fitted. The stainless rods may be fitted in a variety of positions to take account of the size of the cable connector. This dual bar type is particularly suitable where connectors of different heights are inserted or where excess cable must be doubled back. An example would be when ‘double ended’, fixed length, moulded AC mains cords, such as the IEC-Lock types, are used.
Other sizes and colours are available to special order. Switched, MCB, fused and filtered versions are under development and will become available as finalised.
