CANFORD CAT6 RJ45 PRO PATCH PANEL 1U 1x16 FEEDTHROUGH, unscreened, black

Stock code
45-3555
Brand
Canford
GTIN
5056704773646
Colour
  • BlackBlack
CANFORD CAT6 RJ45 PRO PATCH PANEL 1U 1x16 FEEDTHROUGH, unscreened, black
CANFORD CAT6 RJ45 PRO PATCH PANEL 1U 1x16 FEEDTHROUGH, unscreened, blackCANFORD CAT6 RJ45 PRO PATCH PANEL 1U 1x16 FEEDTHROUGH, unscreened, black

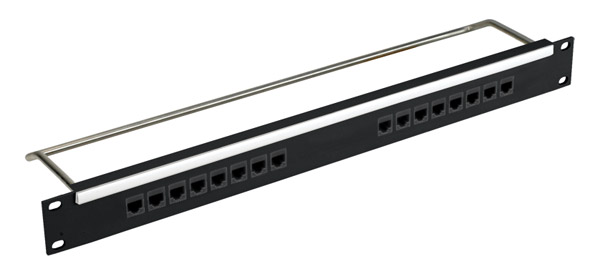

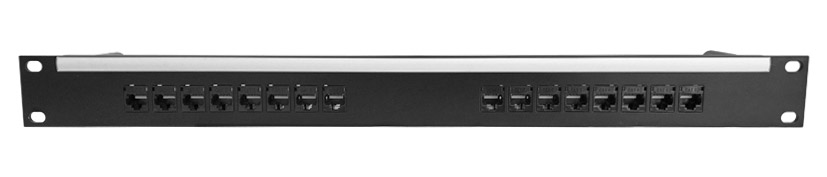

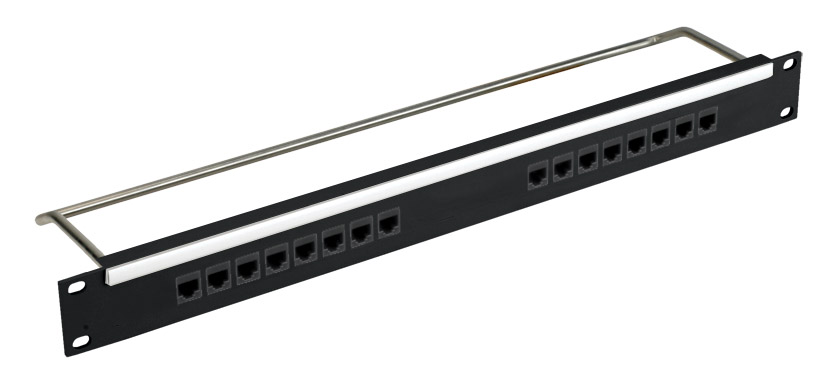

CANFORD CAT6 RJ45 FEEDTHROUGH PRO PATCH PANELS - Unscreened

A range of panels supplied fully populated with feed-through (also known as double-sided or back-to-back) unscreened RJ45 CAT6 sockets, enabling system patching and easy connection of portable or external equipment. A printable designation-strip with snap-on cover and a lacing-bar are fitted as standard.

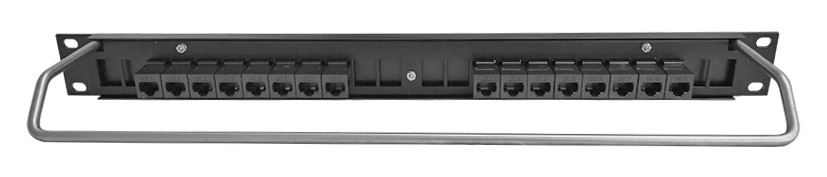

Manufactured from a lightweight, but extremely rigid, broadcast style, aluminium extrusion. The individual connectors are mounted in a sub chassis and are presented flush with the face of the front panel. Panels are fitted with a cranked lacing-bar giving easy access to the rear sockets. The connectors are arranged in equal groups either side of a central divide and a designation-strip holder, with snap-on cover, is fitted on the front panel, to permit the supplied paper strips to be inserted before or after installation; 7.5mm of printable height is available. Templates for printing designation strip labels, available as a DWG file for AutoCAD and compatible applications, can be downloaded from the appropriate product page on the Canford website. Spare 432mm designation-strip paper (not suitable for printers) and covers are available, see CANFORD DESIGNATION STRIPS - Snap-on.

Available finished in Dawn Grey (BS4800-10A03) or Black.

Optional accessories: Recess rack-mounting brackets.

Technical Note:
CAT6 10/100/1000BASE-T: 100m (90m solid core installed + 10m stranded flexible patch cable) in any alien crosstalk environment
CAT6 10GBASE-T: 55m (45m + 10m) in favourable alien crosstalk environment, 37m (27m + 10m) in hostile alien crosstalk environments, i.e. where data cables are bundled together.
CAT6A 10GBASE-T: 100m (90m + 10m) in any alien crosstalk environment.
