CANFORD CSB2-0/0 TRAPEZOID STAGEBOX

Stock code
49-0803
Brand
Canford
Model number
  • CSB2-0/0

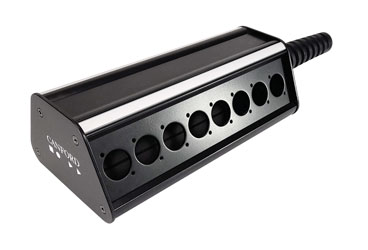

CANFORD CSB2-0/0 TRAPEZOID STAGEBOX
CANFORD CSB2-0/0 TRAPEZOID STAGEBOXCANFORD CSB2-0/0 TRAPEZOID STAGEBOX

CANFORD STAGEBOXES - Trapezoid, all metal

A range of robust and economical, trapezoid shaped stage boxes, supplied unpopulated or with popular combinations of up to 24 D-series connectors.

Each box comprises of a pair of metal end-plates, top and bottom extrusions and two side plates. The top extrusion has integral designation strip holders on either side (Paper inserts and plastic covers included), whilst the bottom extrusion incorporates raised sections running the length of the box which act as feet or skid runners, giving the box extra protection. Side plates are either blank or punched with up to twelve D series ‘Universal’ cutouts. Connectors are PP series - Black plastic shell with silver plated solder bucket contacts, NC3FPP female (no latch, with retention spring) and NC3MPP male.

The profile of the stagebox is a large trapezoid (125mm width x 86mm height).
Available in three lengths with empty plates or one or two rows of connectors along the sloping sides, plus a resilient 120mm long spiral cable gland at one end, maximum cable diameter 21mm.

Length 1 stageboxes are 120mm long, excluding gland
Length 2 stageboxes are 240mm long, excluding gland
Length 3 stageboxes are 360mm long, excluding gland

Code Length (1) Female XLRs Male XLRs
CSB1-0/0 1 0 0
CSB1-4/4 1 4 4
CSB2-0/0 2 0 0
CSB2-8/0 2 8 0
CSB2-8/4 2 8 4
CSB2-8/8 2 8 8
CSB2-12/4 2 12 4
CSB3-0/0 3 0 0
CSB3-12/0 3 12 0
CSB3-12/12 3 12 12
CSB3-16/8 3 16 8
CSB3-20/4 3 20 4

Note (1): Length excluding gland.

Spares

As well as the above assembled stage boxes, Canford offer a range of spares allowing customers to create stage boxes to their own specific requirements. This range includes top and bottom extrusions in all three lengths. Top extrusions come either with no identification or numbered 1-4, 1-8 or 1-12. Side plates are either blank or with four, eight or twelve D series ‘Universal’ cutouts and end plates again blank, or punched to accept a cable gland or a range of panel mount multipin connectors, allowing alternative connector configurations to be created.

Connectors

For those wishing to populate or modify existing stageboxes, the extensive range of D-series or "Universal" cutout connectors can be found in our index category; see Universal Series connectors. Hardware such as fixing screws, nuts and washers should be ordered separately. Mounting hardware finish: chemical black plated (CB), bright nickel passivated (BNP), zinc-plated clear passivated (ZCP). Other screw and nut styles are also available, see fasteners.

Canford stageboxes can be supplied assembled and/or wired to your specific requirements. End and side plates can also be supplied with custom cutouts and engraved as required. Please contact Technical Support.

Ordering information:

Parts should be ordered separately. A complete stagebox requires 1 upper extrusion, 1 lower extrusion, 2 side plates, 2 end plates and a pack of 8 Taptite screws.

  Description Price £
ex. VAT
Add to basket
Delivery
CANFORD CSB1-0/0 TRAPEZOID STAGEBOX Stock code: 49-0801
Temporarily out of stock, expected on: 20/05/2022.
£48.25
CANFORD CSB1-4/4 TRAPEZOID STAGEBOX Stock code: 49-0802
Assembled to order, available in 1‑2 weeks. Need it sooner? Call us
£64.34
CANFORD CSB2-0/0 TRAPEZOID STAGEBOX Stock code: 49-0803
1 in stock. Need more?
£55.66
CANFORD CSB2-8/0 TRAPEZOID STAGEBOX Stock code: 49-0804
Assembled to order, available in 1‑2 weeks. Need it sooner? Call us
£72.89
CANFORD CSB2-8/4 TRAPEZOID STAGEBOX Stock code: 49-0805
Assembled to order, available in 1‑2 weeks. Need it sooner? Call us
£82.91
CANFORD CSB2-8/8 TRAPEZOID STAGEBOX Stock code: 49-0806
Assembled to order, available in 1‑2 weeks. Need it sooner? Call us
£87.85
CANFORD CSB2-12/4 TRAPEZOID STAGEBOX Stock code: 49-0807
Assembled to order, available in 1‑2 weeks. Need it sooner? Call us
£88.98
CANFORD CSB3-0/0 TRAPEZOID STAGEBOX Stock code: 49-0808
Assembled to order, available in 1‑2 weeks. Need it sooner? Call us
£60.58
CANFORD CSB3-12/0 TRAPEZOID STAGEBOX Stock code: 49-0809
Assembled to order, available in 1‑2 weeks. Need it sooner? Call us
£86.17
CANFORD CSB3-12/12 TRAPEZOID STAGEBOX Stock code: 49-0810
Assembled to order, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
£108.30
CANFORD CSB3-16/8 TRAPEZOID STAGEBOX Stock code: 49-0811
Assembled to order, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
£109.40
CANFORD CSB3-20/4 TRAPEZOID STAGEBOX Stock code: 49-0812
Assembled to order, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
£110.60
CANFORD TRAPEZOID STAGEBOX SIDE PLATE BLANK 120mm Stock code: 49-0813
Temporarily out of stock, available in 2‑3 weeks. Need it sooner? Call us
£6.03
CANFORD TRAPEZOID STAGEBOX SIDE PLATE 4xD 120mm Stock code: 49-0814
7 in stock. Need more?
£6.03
CANFORD TRAPEZOID STAGEBOX SIDE PLATE BLANK 240mm Stock code: 49-0815
13 in stock. Need more?
£8.35
CANFORD TRAPEZOID STAGEBOX SIDE PLATE 8xD 240mm Stock code: 49-0816
56 in stock. Need more?
£8.35
CANFORD TRAPEZOID STAGEBOX SIDE PLATE BLANK 360mm Stock code: 49-0817
14 in stock. Need more?
£9.95
CANFORD TRAPEZOID STAGEBOX SIDE PLATE 12xD 360mm Stock code: 49-0818
1 in stock. Need more?
£9.95
CANFORD TRAPEZOID STAGEBOX END PLATE BLANK Stock code: 49-0819
19 in stock. Need more?
£7.98
CANFORD TRAPEZOID STAGEBOX END PLATE CABLE GLAND Stock code: 49-0820
Temporarily out of stock, available in 2‑3 weeks. Need it sooner? Call us
£16.50
CANFORD TRAPEZOID STAGEBOX END PLATE MIL26 Stock code: 49-0821
18 in stock. Need more?
£7.98
CANFORD TRAPEZOID STAGEBOX END PLATE TOURLINE 25 Stock code: 49-0822
Manufactured to order, available in 2‑3 weeks. Need it sooner? Call us
£7.98
CANFORD TRAPEZOID STAGEBOX END PLATE TOURLINE 37 Stock code: 49-0823
14 in stock. Need more?
£7.98
CANFORD TRAPEZOID STAGEBOX UPPER EXTRUSION 120mm, no ident Stock code: 49-0826
26 in stock. Need more?
£6.55
CANFORD TRAPEZOID STAGEBOX UPPER EXTRUSION 240mm, no ident Stock code: 49-0827
12 in stock. Need more?
£7.68
CANFORD TRAPEZOID STAGEBOX UPPER EXTRUSION 360mm, no ident Stock code: 49-0828
18 in stock. Need more?
£8.90
CANFORD TRAPEZOID STAGEBOX UPPER EXTRUSION 120mm, 1-4 Stock code: 49-0829
Temporarily out of stock, available in 2‑3 weeks. Need it sooner? Call us
£14.68
CANFORD TRAPEZOID STAGEBOX UPPER EXTRUSION 240mm, 1-8 Stock code: 49-0830
33 in stock. Need more?
£15.80
CANFORD TRAPEZOID STAGEBOX UPPER EXTRUSION 360mm, 1-12 Stock code: 49-0831
17 in stock. Need more?
£17.03
CANFORD TRAPEZOID STAGEBOX LOWER EXTRUSION 120mm Stock code: 49-0832
15 in stock. Need more?
£7.50
CANFORD TRAPEZOID STAGEBOX LOWER EXTRUSION 240mm Stock code: 49-0833
27 in stock. Need more?
£9.50
CANFORD TRAPEZOID STAGEBOX LOWER EXTRUSION 360mm Stock code: 49-0834
11 in stock. Need more?
£11.60
CANFORD TRAPEZOID STAGEBOX TAPTITE SCREWS (pack of 8) Stock code: 49-0835
2 in stock. Need more?
£0.40
per pack
CANFORD TRAPEZOID STAGEBOX DESIGNATION STRIP PAPER 120mm Stock code: 49-0836
Assembled to order, available in 1‑2 working days. Need it sooner? Call us
£0.33
CANFORD TRAPEZOID STAGEBOX DESIGNATION STRIP COVER 120mm Stock code: 49-0837
Assembled to order, available in 1‑2 working days. Need it sooner? Call us
£0.73
CANFORD TRAPEZOID STAGEBOX DESIGNATION STRIP PAPER 240mm Stock code: 49-0838
44 in stock. Need more?
£0.58
CANFORD TRAPEZOID STAGEBOX DESIGNATION STRIP COVER 240mm Stock code: 49-0839
43 in stock. Need more?
£1.48
CANFORD TRAPEZOID STAGEBOX DESIGNATION STRIP PAPER 360mm Stock code: 49-0840
40 in stock. Need more?
£0.58
CANFORD TRAPEZOID STAGEBOX DESIGNATION STRIP COVER 360mm Stock code: 49-0841
38 in stock. Need more?
£1.48
