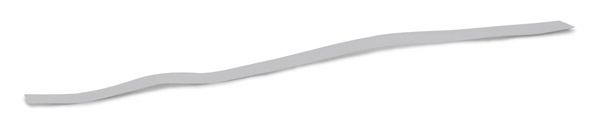

CANFORD TRAPEZOID STAGEBOX DESIGNATION STRIP PAPER 240mm

Stock code
49-0838
Brand
Canford
GTIN
5056704779846
CANFORD TRAPEZOID STAGEBOX DESIGNATION STRIP PAPER 240mm
CANFORD TRAPEZOID STAGEBOX DESIGNATION STRIP PAPER 240mm

CANFORD STAGEBOXES - Trapezoid, all metal

A range of robust and economical, trapezoid shaped stage boxes, supplied unpopulated or with popular combinations of up to 24 D-series connectors.

Each box comprises of a pair of metal end-plates, top and bottom extrusions and two side plates. The top extrusion has integral designation strip holders on either side (Paper inserts and plastic covers included), whilst the bottom extrusion incorporates raised sections running the length of the box which act as feet or skid runners, giving the box extra protection. Side plates are either blank or punched with up to twelve D series ‘Universal’ cutouts. Connectors are PP series - Black plastic shell with silver plated solder bucket contacts, NC3FPP female (no latch, with retention spring) and NC3MPP male.

The profile of the stagebox is a large trapezoid (125mm width x 86mm height).
Available in three lengths with empty plates or one or two rows of connectors along the sloping sides, plus a resilient 120mm long spiral cable gland at one end, maximum cable diameter 21mm.

Code Length mm (1) Female XLRs Male XLRs
CSB1-0/0 120 0 0
CSB1-4/4 120 4 4
CSB2-0/0 240 0 0
CSB2-8/0 240 8 0
CSB2-8/4 240 8 4
CSB2-8/8 240 8 8
CSB2-12/4 240 12 4
CSB3-0/0 360 0 0
CSB3-12/0 360 12 0
CSB3-12/12 360 12 12
CSB3-16/8 360 16 8
CSB3-20/4 360 20 4

Note (1): Length excluding gland.

Spares

As well as the above assembled stage boxes, Canford offer a range of spares allowing customers to create stage boxes to their own specific requirements. This range includes top and bottom extrusions in all three lengths. Top extrusions come either with no identification or numbered 1-4, 1-8 or 1-12. Side plates are either blank or with four, eight or twelve D series ‘Universal’ cutouts and end plates again blank, or punched to accept a cable gland or a range of panel mount multipin connectors, allowing alternative connector configurations to be created.

Connectors

For those wishing to populate or modify existing stageboxes, the extensive range of D-series or "Universal" cutout connectors can be found in our index category; see Universal Series connectors. Hardware such as fixing screws, nuts and washers should be ordered separately. Mounting hardware finish: chemical black plated (CB), bright nickel passivated (BNP), zinc-plated clear passivated (ZCP). Other screw and nut styles are also available, see MOUNTING HARDWARE - Universal Series Connectors.

Canford stageboxes can be supplied assembled and/or wired to your specific requirements. End and side plates can also be supplied with custom cutouts and engraved as required. Please contact Technical Support.

Ordering information:

Parts should be ordered separately. A complete stagebox requires 1 upper extrusion, 1 lower extrusion, 2 side plates, 2 end plates and a pack of 8 Taptite screws.

  Description Price £
ex. VAT
Add to basket
Delivery
CANFORD CSB1-0/0 TRAPEZOID STAGEBOX Stock code: 49-0801
Temporarily out of stock but available to backorder, expected: 21/06/2024.
£53.53
CANFORD CSB1-4/4 TRAPEZOID STAGEBOX Stock code: 49-0802
Assembled to order, available in 4‑6 weeks. Need it sooner? Call us
£70.55
CANFORD CSB2-0/0 TRAPEZOID STAGEBOX Stock code: 49-0803
Temporarily out of stock but available to backorder, expected: 14/06/2024.
£61.11
CANFORD CSB2-8/0 TRAPEZOID STAGEBOX Stock code: 49-0804
Temporarily out of stock but available to backorder, expected: 28/06/2024.
£79.27
CANFORD CSB2-8/4 TRAPEZOID STAGEBOX Stock code: 49-0805
Assembled to order, available in 4‑6 weeks. Need it sooner? Call us
£89.91
CANFORD CSB2-8/8 TRAPEZOID STAGEBOX Stock code: 49-0806
4 in stock Need more?
£95.13
CANFORD CSB2-12/4 TRAPEZOID STAGEBOX Stock code: 49-0807
5 in stock Need more?
£96.29
CANFORD CSB3-0/0 TRAPEZOID STAGEBOX Stock code: 49-0808
2 in stock Need more?
£66.27
CANFORD CSB3-12/0 TRAPEZOID STAGEBOX Stock code: 49-0809
Assembled to order, available in 4‑6 weeks. Need it sooner? Call us
£93.27
CANFORD CSB3-12/12 TRAPEZOID STAGEBOX Stock code: 49-0810
Assembled to order, cancellations may incur charges, available in 4‑6 weeks. Need it sooner? Call us
£116.70
CANFORD CSB3-16/8 TRAPEZOID STAGEBOX Stock code: 49-0811
Assembled to order, cancellations may incur charges, available in 4‑6 weeks. Need it sooner? Call us
£117.90
CANFORD CSB3-20/4 TRAPEZOID STAGEBOX Stock code: 49-0812
Assembled to order, cancellations may incur charges, available in 4‑6 weeks. Need it sooner? Call us
£119.00
CANFORD TRAPEZOID STAGEBOX SIDE PLATE BLANK 120mm Stock code: 49-0813
41 in stock Need more?
£6.48
CANFORD TRAPEZOID STAGEBOX SIDE PLATE 4xD 120mm Stock code: 49-0814
41 in stock Need more?
£6.48
CANFORD TRAPEZOID STAGEBOX SIDE PLATE BLANK 240mm Stock code: 49-0815
50 in stock Need more?
£8.85
CANFORD TRAPEZOID STAGEBOX SIDE PLATE 8xD 240mm Stock code: 49-0816
Temporarily out of stock but available to backorder, available in 2‑3 weeks. Need it sooner? Call us
£8.85
CANFORD TRAPEZOID STAGEBOX SIDE PLATE BLANK 360mm Stock code: 49-0817
12 in stock Need more?
£10.40
CANFORD TRAPEZOID STAGEBOX SIDE PLATE 12xD 360mm Stock code: 49-0818
19 in stock Need more?
£10.40
CANFORD TRAPEZOID STAGEBOX END PLATE BLANK Stock code: 49-0819
22 in stock Need more?
£8.40
CANFORD TRAPEZOID STAGEBOX END PLATE CABLE GLAND Stock code: 49-0820
Temporarily out of stock but available to backorder, available in 2‑3 weeks. Need it sooner? Call us
£17.93
CANFORD TRAPEZOID STAGEBOX END PLATE MIL26 Stock code: 49-0821
Manufactured to order, available in 2‑3 weeks. Need it sooner? Call us
£8.40
CANFORD TRAPEZOID STAGEBOX END PLATE TOURLINE 25 Stock code: 49-0822
Manufactured to order, available in 2‑3 weeks. Need it sooner? Call us
£8.40
CANFORD TRAPEZOID STAGEBOX END PLATE TOURLINE 37 Stock code: 49-0823
Manufactured to order, available in 2‑3 weeks. Need it sooner? Call us
£8.40
CANFORD TRAPEZOID STAGEBOX UPPER EXTRUSION 120mm, no ident Stock code: 49-0826
21 in stock Need more?
£7.20
CANFORD TRAPEZOID STAGEBOX UPPER EXTRUSION 240mm, no ident Stock code: 49-0827
32 in stock Need more?
£8.33
CANFORD TRAPEZOID STAGEBOX UPPER EXTRUSION 360mm, no ident Stock code: 49-0828
12 in stock Need more?
£9.45
CANFORD TRAPEZOID STAGEBOX UPPER EXTRUSION 120mm, 1-4 Stock code: 49-0829
Temporarily out of stock but available to backorder, available in 2‑3 weeks. Need it sooner? Call us
£15.33
CANFORD TRAPEZOID STAGEBOX UPPER EXTRUSION 240mm, 1-8 Stock code: 49-0830
21 in stock Need more?
£16.45
CANFORD TRAPEZOID STAGEBOX UPPER EXTRUSION 360mm, 1-12 Stock code: 49-0831
14 in stock Need more?
£17.58
CANFORD TRAPEZOID STAGEBOX LOWER EXTRUSION 120mm Stock code: 49-0832
Temporarily out of stock but available to backorder, available in 2‑3 weeks. Need it sooner? Call us
£8.98
CANFORD TRAPEZOID STAGEBOX LOWER EXTRUSION 240mm Stock code: 49-0833
24 in stock Need more?
£11.70
CANFORD TRAPEZOID STAGEBOX LOWER EXTRUSION 360mm Stock code: 49-0834
2 in stock Need more?
£14.43
CANFORD TRAPEZOID STAGEBOX TAPTITE SCREWS (pack of 8) Stock code: 49-0835
11 in stock Need more?
£0.80
per pack
CANFORD TRAPEZOID STAGEBOX DESIGNATION STRIP PAPER 120mm Stock code: 49-0836
Assembled to order, available in 1‑2 working days. Need it sooner? Call us
£0.33
CANFORD TRAPEZOID STAGEBOX DESIGNATION STRIP COVER 120mm Stock code: 49-0837
Assembled to order, available in 1‑2 working days. Need it sooner? Call us
£0.73
CANFORD TRAPEZOID STAGEBOX DESIGNATION STRIP PAPER 240mm Stock code: 49-0838
49 in stock Need more?
£0.65
CANFORD TRAPEZOID STAGEBOX DESIGNATION STRIP COVER 240mm Stock code: 49-0839
93 in stock Need more?
£1.63
CANFORD TRAPEZOID STAGEBOX DESIGNATION STRIP PAPER 360mm Stock code: 49-0840
27 in stock Need more?
£0.65
CANFORD TRAPEZOID STAGEBOX DESIGNATION STRIP COVER 360mm Stock code: 49-0841
26 in stock Need more?
£1.63
