Suited to supporting small, medium and large loudspeakers up to 50kg, this range from K&M includes solutions for both wall and ceiling mount applications. Manufactured in steel and finished black unless otherwise stated, most offer tilt and swivel adjustment and are supplied with mounting fixings.
Wall bracket, with interchangeable 35mm spigot to suit flanges. Spigot distance from wall is adjustable to four positions, 315mm, 285mm, 255mm, or 225mm. Maximum load capacity: 35kg. Weight: 2.6kg.
Wall bracket, with 35-37mm expanding spigot for effective clamping of loudspeaker. Gradual tilt adjustment 0 - 22 degrees via 11 settings, spigot centre is 420mm from wall. Maximum load capacity: 50kg. Weight: 6.1kg.
Wall bracket with a 580 x 140mm wall-mount plate. 35-37mm expanding spigot for effective clamping of loudspeaker, spigot centre is 420mm from wall. 180 degree swivel with gradual tilt adjustment 0 - 22 degrees via 11 settings. Maximum load capacity: 50kg. Weight: 6.1kg.
Wall/tube mounting bracket, with interchangeable 35mm spigot to suit flanges, spigot centre is 520mm from wall. Clamping range of 45-60mm when mounted on tubes. 180 degree swivel, complete with locking facility. Maximum load capacity: 50kg. Weight: 2.96kg.
Compact wall bracket for loudspeakers up to 15kg. Mounting plate to wall clearance: 65mm. Vertical and horizontal mounting holes 70-76.2mm spacing. Tilt adjustment of 0 - 45 degrees with a swivel adjustment of 110 degrees. Maximum load capacity: 15kg. Weight: 0.711kg.
Adjustable wall bracket for smaller loudspeakers. Wall clearance to mounting plate: 105mm. Tilt adjustment of 0 - 15 degrees, swivel adjustment of 180 degrees. Maximum load capacity:10kg. Weight: 0.72kg.
24185

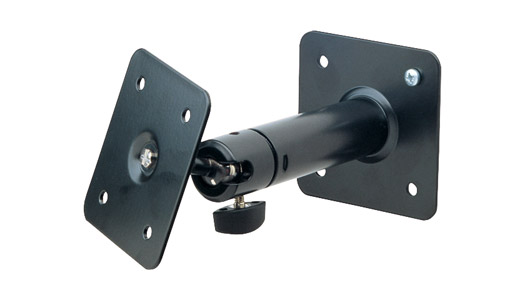

Wall or ceiling-mounting bracket with universal ball joint, suitable for small loudspeakers up to 10kg. Available with either 3/8 inch male thread or 95 x 80mm bearing plate. Wall clearance of 160mm. Tilt adjustment of 0 - 90 degrees with a swivel adjustment of 360 degrees. Maximum load capacity: 10kg. Weight: 0.65kg.
Wall or ceiling-mounting bracket, suited to speakers up to 15kg. Sturdy one-piece arm gives 271mm clearance from wall or ceiling. Full 360 degree swivel with tilt angle of 0-90 degrees. Speakers are secured with 127x60mm bearing plate. Load capacity: 15kg. Weight: 1.08kg. Speakers can also be secured via the steel safety-wire supplied.
Wall bracket designed specifically to mount the JBL Control 1 speaker. Offers a swivel adjustment of 85 degrees with a tilt adjustment of 0-90 degrees. Wall clearance: 153mm. Weight: 0.61kg. Available in both black and white finishes.

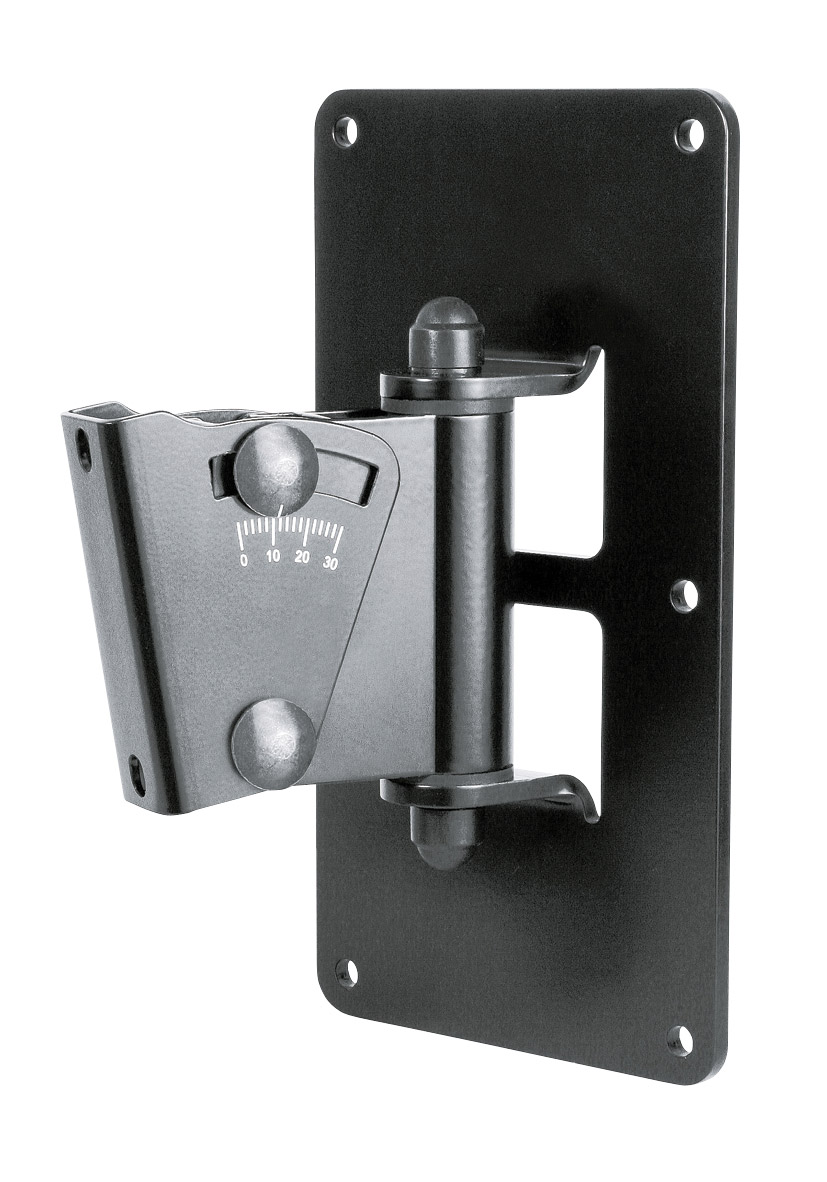

Multi-purpose, wall-mounting speaker bracket. Easy mounting of speaker via a hook-in and screw-lock mechanism. Wall clearance of 110mm. Swivel adjustment of 90 degrees with a tilt angle of 0-30 degrees. Maximum load capacity: 15kg. Weight: 0.87kg. Available in both black and white finishes. Offers considerable speaker mounting possibilities when used in conjunction with the AP1 - AP6 adapter panels available as accessories.
Similar in design to the 24471 bracket but suited to mount larger speakers up to 25kg. Wall clearance of 110mm. Swivel adjustment of 90 degrees with a tilt angle of 0-30 degrees. Maximum load capacity: 25kg. Weight: 1.34kg. Available in both black and white finishes. Offers considerable speaker mounting possibilities when used in conjunction with the AP1 - AP6 adapter panels available as accessories.
Wall-mounting bracket suitable for mounting the JBL LSR 2325P, 2328P, 4326P and 4328 series of loudspeakers. Similar in construction to the 24471 and 24481 series, with the addition of an extension arm. Speakers are screwed to the arm which then attaches to the bracket via an easy hook-in and locking screw mechanism. Wall clearance of 404mm. Swivel adjustment of 120 degrees with a tilt adjustment of 0-30 degrees. Maximum load capacity: 20kg. Weight: 1.525kg
For a range of accessories for use with these mounts see K&M LOUDSPEAKER STANDS - Accessories
