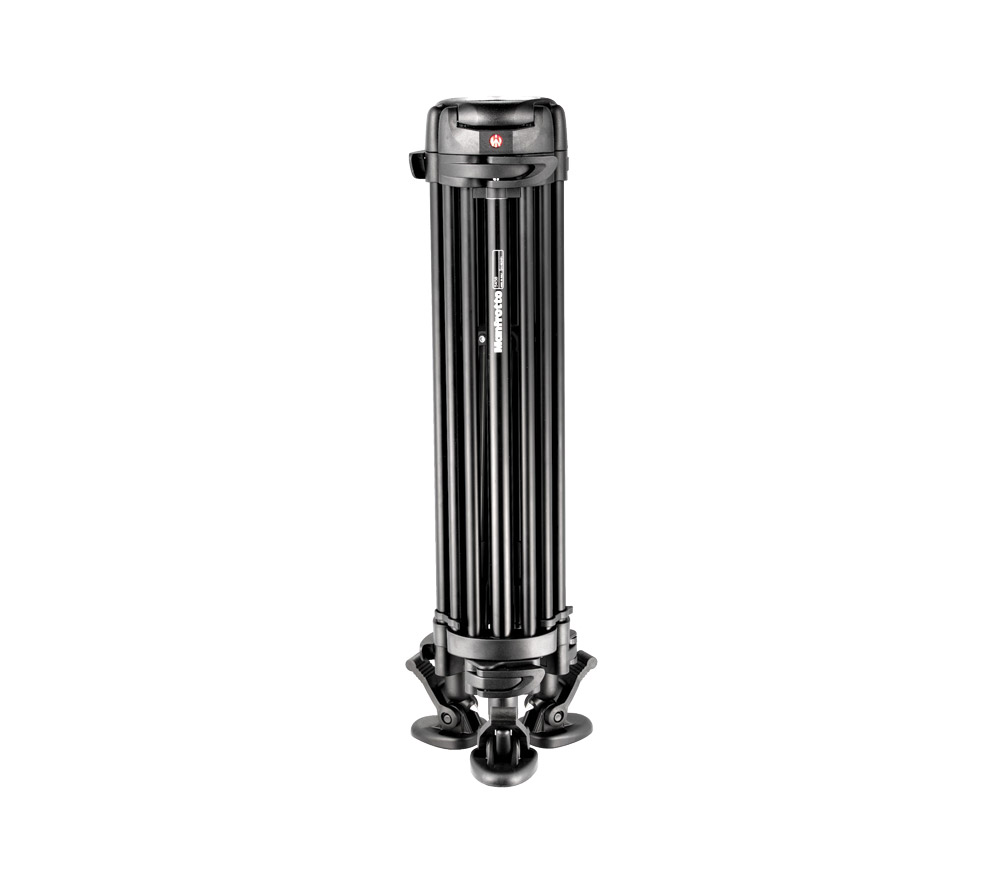

MANFROTTO 545B VIDEO TRIPOD Aluminium, 3 leg sections, 154cm height, 100mm bowl, mid-level spreader

Stock code
53-8042
Brand
Manfrotto
Model number
  • 545B
MANFROTTO 545B VIDEO TRIPOD Aluminium, 3 leg sections, 154cm height, 100mm bowl, mid-level spreader
MANFROTTO 545B VIDEO TRIPOD Aluminium, 3 leg sections, 154cm height, 100mm bowl, mid-level spreaderMANFROTTO 545B VIDEO TRIPOD Aluminium, 3 leg sections, 154cm height, 100mm bowl, mid-level spreaderMANFROTTO 545B VIDEO TRIPOD Aluminium, 3 leg sections, 154cm height, 100mm bowl, mid-level spreader

MANFROTTO TRIPODS

Manfrotto video tripods are designed for professional videographers requiring stability and durability from their camera supporting hardware. This selection contains tripods with and without heads, chosen to offer a range of preferred combinations covering differing needs and budgets.


PIXI Mini

This miniature tripod is suitable for compact cameras or action cameras with a safety payload of 1kg, however it could also be used to position microphones at low level. Weighing only 190g, this tripod has a maximum height of 13.5cm and a closed length of 18.5cm. There is a ball head on the top offering -35/+35 degree front and lateral tilt movement, terminating with 1/4-inch screw. A push button allows ball movement and repositioning when pressed. When the button is released the ball is locked in place.


PIXI EVO

With similar design to the PIXI Mini, PIXI EVO has some added functionality that lends itself to being more adaptable for different positions and choice of gear attached. The weight capacity of PIXI EVO is 2.5kg, making it stable for entry level DSLR cameras or heavier action cameras. Each of the three legs has two angle positions along with extension allowing more stability for rugged surfaces. The ball head, terminated with 1/4-inch screw and tightening wheel, allows for 90-degree tilt or ‘portrait’ mode. Maximum height of the tripod is 20cm, with a closed length of 20.5cm and a weight of 260g.


Befree 3-Way Live Advanced

Designed to provide ‘high-performance’ in a compact size, this aluminium tripod includes a foldable 3-way fluid head and is capable of payload up to 6kg. Each of the three legs has four sections with locking connectors at each join, and a centre column with adjustment. The 3-way fluid head allows fluid drag on both panoramic and tilt movements whilst giving +90/-45 degree front tilt and +90/-80 degree lateral tilt operation.

The included 200PL-PRO plate is compatible with Manfrotto RC2 and Arca-Swiss type head attachments, whilst the plate holder is also compatible with the 501PL video plate. Maximum tripod height is 151cm with centre column at is highest, and it has a closed length of 40cm. Weight: 2kg.


290

Weighing 1.8kg and a capable of payload up to 4kg, this tripod reaches a maximum of 146cm in height with the centre column extended. The minimum height is 42.5cm. Befree Live fluid video head is included for friction on movement and adjusting. Each leg has three sections and two angle positions; 23 degrees or 51 degrees. The top attachment is terminated with 1/4-inch screw and 3/8-inch screw.


290 XTRA

This tripod weighs 2.52kg and is capable of payload up to 4kg. 290 XTRA reaches a maximum of 146cm in height with the centre column extended, and is complimented with a minimum height of 42cm. A three-way head allows for easy positioning and locking, whilst each leg has four angle positions for greater balance. The top attachment is terminated with 1/4-inch screw. 109711 carry bag is included.


755CX3

755CX3 MDEVE video tripod is manufactured from carbon fibre and magnesium making it a lighter option for the operator on the move. Each of the three-sectioned legs can be set to one of four preset angles of 23, 47, 66, or 89 degrees, with each of the three sections lockable with flip lock style fasteners. The stand includes a bubble spirit level for accurate positioning, and the centre column is removable – handy for using as a boom. The maximum height of the tripod is 164cm, with a total weight of 1.9kg. It is able to support a payload of 7kg. This tripod doesn’t include a head, and is terminated with 3/8-inch screw for optional head attachment.


509HD-545GBK

A kit comprising of 509HD head, 545GB aluminium tripod base, and ground spreader. The 509HD video tripod head is capable of supporting video cameras up to 13.5kg whilst supporting counterbalancing up to 12.8kg. A four-step counter-balancing system offers quick adjustment whilst both independent and variable pan and tilt fluid-drag knobs offer greater control over the speed of head manoeuvres. The head offers tilt of -60 to +90 degrees and panoramic rotation of 360 degrees. 509HD features the Manfrotto patented 'Advanced Balancing Recorder' (ABR) which enables the operator find, store, and call up the correct counterbalancing position of the included 509PLONG plate when used in conjunction with differing camera equipment. This video head has a 100mm half ball video tripod mount and is therefore compatible directly with the Manfrotto 545B or Manfrotto 545GB. Power by Lithium battery, an illuminated levelling-bubble gives clear indication of the horizontal status of the tripod regardless of lighting conditions. This is capable of operating within a temperature range of -20 and +60 degrees Celsius.


MVK500190XV

Standing a maximum of 173.3cm in height, this tripod incorporates the MVH500AH Fluid Video Head with the 190X aluminium tripod. Each leg has three sections with flip locking functionality. This lightweight video tripod head is designed to support cameras up to 5kg in weight.


MVK500AM

This tripod, with centre spreader, has been designed for ‘fast set-up and easy handling’. Manufactured from aluminium, the stand weighs 3.56kg, has a maximum payload of 5kg, and a counterbalance weight of 2.4kg. The stand has a height range of 67.5cm to 154cm, which is achieved by extending the three sectioned legs and clamping into place with the flip lock clamps. The fluid video head includes the pan bar, which aid 360 degree rotation and -70/+90 degree front tilt, features the 500PLONG plate. Includes 110124 carry bag.


MVK502AM-1

Standing a maximum of 156cm in height, this tripod incorporates the MVT502AM tripod with middle spreader, 502 fluid head with 75mm half ball, and includes a Manfrotto 110125 carry bag.


MVK504XTWINMA

This tripod has a maximum height of 169cm, and includes 504X Fluid head, and MVTTWINMA aluminium twin leg tripod with middle spreader.

Comparison Charts

Befree 3-Way
Live Advanced 290 290 XTRA 755CX3
Safety payload 6kg 4kg 4kg 7kg
Counterbalance - - - -
Centre of gravity - - - -
Bubble Level 3 1 1 1
Battery - - - -
Leg type Single Single Single Single
Leg sections 4 3 3 3
Leg angles (1) 22/54/89 23/51 25/46/66/88 23/47/66/89
Ball flat - - - Flat
Head type 3-way head Video/Fluid head 3-way head -
Plate type 200PL PRO 501PL 200LT-PL -
Carry bag - - Yes -
Closed Length 40.0cm 59.5cm 70.7cm 63.5cm
Height range 42.0-151cm 42.5-146cm 42.0-171.5cm 46.5-164cm
Weight 2kg 1.8kg 2.52kg 1.9kg
Construction Aluminium Aluminium Aluminium Carbon Fibre

Note (1) measured in degrees

509HD-545GBK MVK500190XV MVK500AM MVK502AM-1 MVK504XTWINMA
Safety payload 13.5kg 5kg 5kg 7kg 12kg
Counterbalance 8.5kg 2.4kg 2.4kg 4kg 2.2/4.4/6.5kg
Centre of gravity 125mm - 55mm 55mm -
Bubble Level 1 1 1 1 1
Battery Lithium - - - Lithium
Leg type Twin Single Twin Twin Twin
Leg sections 3 3 3 3
Leg angles (1) 29 to 63 25/46/66/88 - - -
Ball flat 100 Ball Flat 60 Ball 75 Ball Flat
Head type Video/Fluid head Video/Fluid head Video/Fluid head Video/Fluid head Video/Fluid head
Plate type 509PLONG 500PLONG 500PLONG 504PLONG 504PLONGR-1
Carry bag Yes - Yes Yes Yes
Closed Length 84.0cm 72.2cm 72.0cm 75.0cm 86.0cm
Height range 48.0-172cm 50.3-173.3cm 67.5-154cm 70.5-156cm 75.0-169cm
Weight 9.805kg 3.2kg 3.56kg 3.86kg 5.6kg
Construction Aluminium Aluminium Aluminium Aluminium Aluminium

Note (1) measured in degrees

  Description Price £
ex. VAT
Add to basket
Delivery
MANFROTTO PIXI MINI TRIPOD Ball head, 1/4-inch screw, supports 1kg, black Black Stock code: 53-8024
This item is discontinued. See the product page for suggested alternatives.
MANFROTTO PIXI EVO TRIPOD Ball head, 1/4-screw, supports 2.5kg, black Black Stock code: 53-8025
This item is discontinued. See the product page for suggested alternatives.
MANFROTTO BEFREE 3-WAY LIVE ADVANCED VIDEO TRIPOD Includes 501PL video plate Stock code: 53-8023
Please login for stock availability and lead times.
£208.20
MANFROTTO 290 VIDEO TRIPOD Includes Befree Live fluid head Stock code: 53-8021
Please login for stock availability and lead times.
£133.20
MANFROTTO 290 XTRA VIDEO TRIPOD Includes 128RC fluid head Stock code: 53-8022
Please login for stock availability and lead times.
£162.40
MANFROTTO MVK500190XV VIDEO TRIPOD With 190X tripod, 500 fluid video head Stock code: 53-8026
Please login for stock availability and lead times.
£329.10
MANFROTTO MVK500AM VIDEO TRIPOD With fluid video head, twin leg support, middle spreader Stock code: 53-8027
Please login for stock availability and lead times.
£441.60
MANFROTTO MVK502AM-1 VIDEO TRIPOD With 502 fluid head, twin leg support, middle spreader Stock code: 53-8028
Please login for stock availability and lead times.
£549.00
MANFROTTO MVK504XTWINMA VIDEO TRIPOD With 504X fluid head, twin leg support, middle spreader Stock code: 53-8029
Please login for stock availability and lead times.
£658.00
MANFROTTO 165MV VIDEO TRIPOD Ground spreader, 80cm to 130cm diameter Stock code: 53-8049
Please login for stock availability and lead times.
£91.63
MANFROTTO 755CX3 VIDEO TRIPOD Carbon fibre, 3 single leg sections, 164cm height, centre column Stock code: 53-8041
Please login for stock availability and lead times.
£533.00
MANFROTTO 509HD-545GBK VIDEO TRIPOD KIT Includes 545GB aluminium tripod, 509HD head, bag Stock code: 53-8067
Please login for stock availability and lead times.
£1,370.00
MANFROTTO 319 VIDEO TRIPOD ADAPTOR 100mm ball to 75mm ball, black Black Stock code: 53-8048
Please login for stock availability and lead times.
£41.63
MANFROTTO 500BALL VIDEO TRIPOD ADAPTOR 100mm half ball, 3/8inch screw attachment Stock code: 53-8046
Please login for stock availability and lead times.
£66.63
MANFROTTO 520BALL VIDEO TRIPOD ADAPTOR 75mm half ball, 3/8inch screw attachment Stock code: 53-8047
Please login for stock availability and lead times.
£70.78
