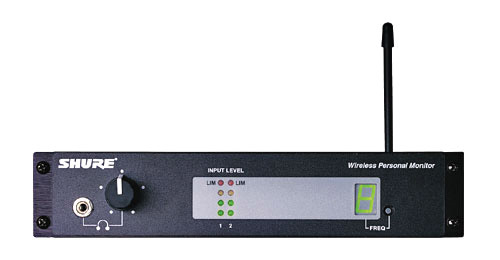

SHURE EP4T PERSONAL MONITOR TRANSMITTER

Stock code
74-5884
Brand
Shure
Model number
  • EP4T
SHURE EP4T PERSONAL MONITOR TRANSMITTER
SHURE EP4T PERSONAL MONITOR TRANSMITTER

Order

/
No longer manufactured. Please contact Technical Support for alternatives.

P4T Wireless Transmitter

Wireless transmitter with removable antenna.

For use with PSM 400 monitors.

Features

P4T Wireless Transmitter

Key Features

  • Built-in audio limiter
  • External power supply
  • Remotable/combinable antennas
  • 1/2 rack space

Operating Controls

  • Earphone volume knob
  • Frequency select

LED Indicators

  • 4-segment input level
  • Transmission Frequency

Inputs

  • Two 1/4" TRS line level

Outputs

  • Two 1/4" TRS loop outs
  • Local earphone monitor

Specifications

Spec Sheet (pdf)

RF Frequency Range
722 to 952 MHz (country dependent)
Operating Range
300 feet (environment dependent)
RF Output Power
50 mW (+17 dBm) typical conducted (country dependent)
Modulation Limiter
Internal peak limiter (>10:1 compression)
Antenna
External whip, 50ohm BNC connector
Power Requirements
Operating voltage 14-18 Vdc
Supplied with one of the following external power supplies:
Model PS40: 120 Vac, 60 Hz input.
Model PS40E, Model PS40UK: 230 Vac, 50/60 Hz input.
Current
250 mA maximum
Dimensions
219.2 mm X 43.6 mm X 136.5 mm (8.63 in. X 1.718 in. X 5.375 in.)
Net Weight
907.2 g (2 lbs., 0 oz.)

User Guides

SHURE PERSONAL MONITOR SYSTEMS - PSM400 Series

PSM 400 wired systems make professional quality personal monitoring available to more performers than ever before. Each system includes 'everything a working musician or band needs to receive consistent personal monitor mixes'. Designed for performers who are 'tired of the limits of floor wedges', the PSM 400 offers hands-on control and freedom to musicians who have a limited budget for gear. The PSM 400 is right for, 'rehearsal through performance, for almost everyone who performs live music'.
