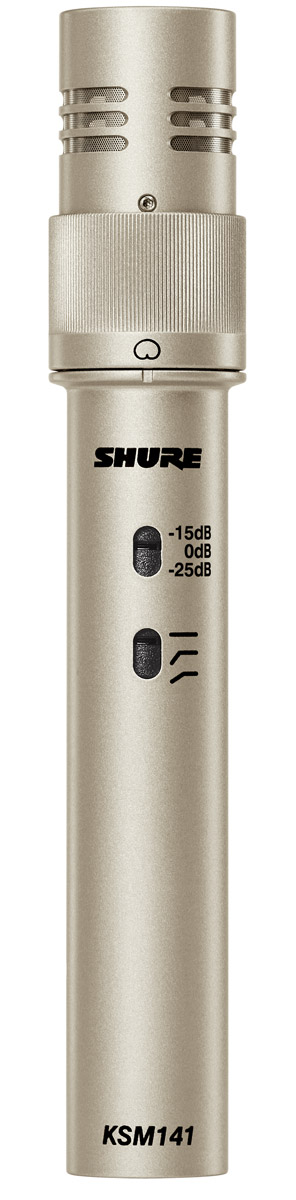

SHURE KSM141/SL ST PAIR MICROPHONE Pair of KSM141/SL in single case

Stock code
74-6258
Brand
Shure
Model number
  • KSM141/SL ST PAIR
SHURE KSM141/SL ST PAIR MICROPHONE Pair of KSM141/SL in single case

Image may be provided for illustrative purposes only, please refer to the product description.

SHURE KSM141/SL ST PAIR MICROPHONE Pair of KSM141/SL in single case

Order

/
Discontinued. Please contact Technical Support for alternatives.

KSM141 Studio Instrument Microphone

The KSM141 is a large diaphragm end-addressed condenser microphone with a rotating collar allowing easy switching between a highly consistent cardioid or true omnidirectional polar pattern for smooth and extremely focused sound reproduction.

Designed for studio use, yet rugged enough for live applications, the KSM141 can withstand extremely high sound pressure levels (SPL). Its low self-noise and extended frequency response make it ideal for recording musical instruments.

Features

  • A mechanical polar pattern switch for highly consistent cardioid and true omnidirectional polar patterns. Provides flexibility in a wide variety of recording applications
  • Ultra-thin, 2.5 micron, 24 karat gold-layered, low mass Mylar diaphragm for superior transient response
  • Class A, discrete, transformerless preamplifier for transparency, extremely fast transient response, no crossover distortion, and minimal harmonic and intermodulation distortion
  • Premium electronic components, including gold-plated internal and external connectors
  • Subsonic filter eliminates low frequency rumble (less than 17 Hz) caused by mechanical vibration
  • Three-position switchable pad (0 dB, 15 dB, and 25 dB) for handling extremely high sound pressure levels (SPLs)
  • Three-position switchable pad (0 dB, 15 dB, and 25 dB) for handling extremely high sound pressure levels (SPLs)
  • Three-position switchable low-frequency filter to reduce background noise and counteract proximity effect

Performance Characteristics

  • Extended frequency response
  • Low self-noise
  • Exceptional reproduction of low-frequency sounds
  • Can withstand high sound pressure levels (SPL)
  • High output level
  • No crossover distortion
  • Uniform polar response
  • Superior common mode rejection and suppression of radio frequency interference

Applications

Some typical applications for the KSM141 are listed below. Microphone use, however, is a matter of personal taste. The KSM141 may be used for a variety of applications other than those listed.

  • Acoustic instruments -- such as piano, guitar, drums, percussion, strings
  • Wind instruments -- brass and woodwind
  • Low frequency instruments -- such as double bass, electric bass, kick drum
  • Overhead miking -- drums or percussion
  • Ensembles -- choral or orchestral
  • Room ambiance pick-up -- guitar amplifier or drums

Both the acoustic environment and microphone placement strongly affect the sound obtained from miking a source. You may need to experiment with microphone placement and room treatments to achieve the best overall sound for each application.

  • KSM141/SL with windscreen and carrying case, champagne finish
  • KSM141/SL STPAIR with two KSM141 mics, two windscreens, one carrying case, champagne finish

Specifications

Cartridge Type
Permanently Biased Condenser
Frequency Response
20 to 20,000 Hz
  view larger
Directional Polar Pattern
Cardioid/Omnidirectional
Output Impedance
150 ohms (actual)
Attenuation Switch
0 dB, 15 dB, or 25 dB attenuation
Low Frequency Response Switch
Flat; -6 db/octave below 115 Hz;
-18 dB/octave below 80 Hz
Phantom Power
48 Vdc +/- 4 Vdc (IEC-268-15/DIN 45 596), positive pins 2 and 3
Current Drain
4.65 mA typical at 48 Vdc
Common Mode Rejection
≥50 dB, 20 Hz to 20 kHz
Polarity
Positive pressure on diaphragm produces positive voltage on output pin 2 relative to pin 3
Dimensions and Weight
20 mm (0.8 in.) diameter, 146 mm (5.75 in.) long;
156 grams (5.5 oz.)
Sensitivity (typical, at 1000 Hz; 1 Pa = 94 dB SPL)
--37 dBV/Pa
Self-noise (typical, equivalent SPL; A-weighted, IEC 651)
14 dB
Maximum SPL
5000 ohm load (Attenuator on): 145 (160, 170) dB
2500 ohm load (Attenuator on): 139 (154, 164) dB
1000 ohm load (Attenuator on): 134 (149, 159) dB
Output Clipping Level*
5000 ohm load: 15 dBV
2500 ohm load: 9 dBV
1000 ohm load: 3 dBV
Dynamic Range
5000 ohm load: 131 dB
2500 ohm load: 125 dB
1000 ohm load: 120 dB
Signal to Noise Ratio**
80 dB

*20 Hz to 20 kHz; THD < 1%. THD of the microphone preamplifier when applied input signal is equivalent to the cartridge output at specified SPL.

**S/N ratio is difference between 94 dB SPL and equivalent SPL of self-noise A-weighted.

User Guides

SHURE MICROPHONES - KSM Series studio microphones

KSM studio condenser microphones 'balance exceptional sensitivity and flexibility with unmatched durability to accurately capture the widest variety of sound sources. Finely tuned condenser cartridges give voice to each of these elegant recording microphones.'

Shure microphone clamps are supplied as standard with a 5/8″ thread. 5/8″ to 3/8″ adapters are available separately (stock code 53-217).
