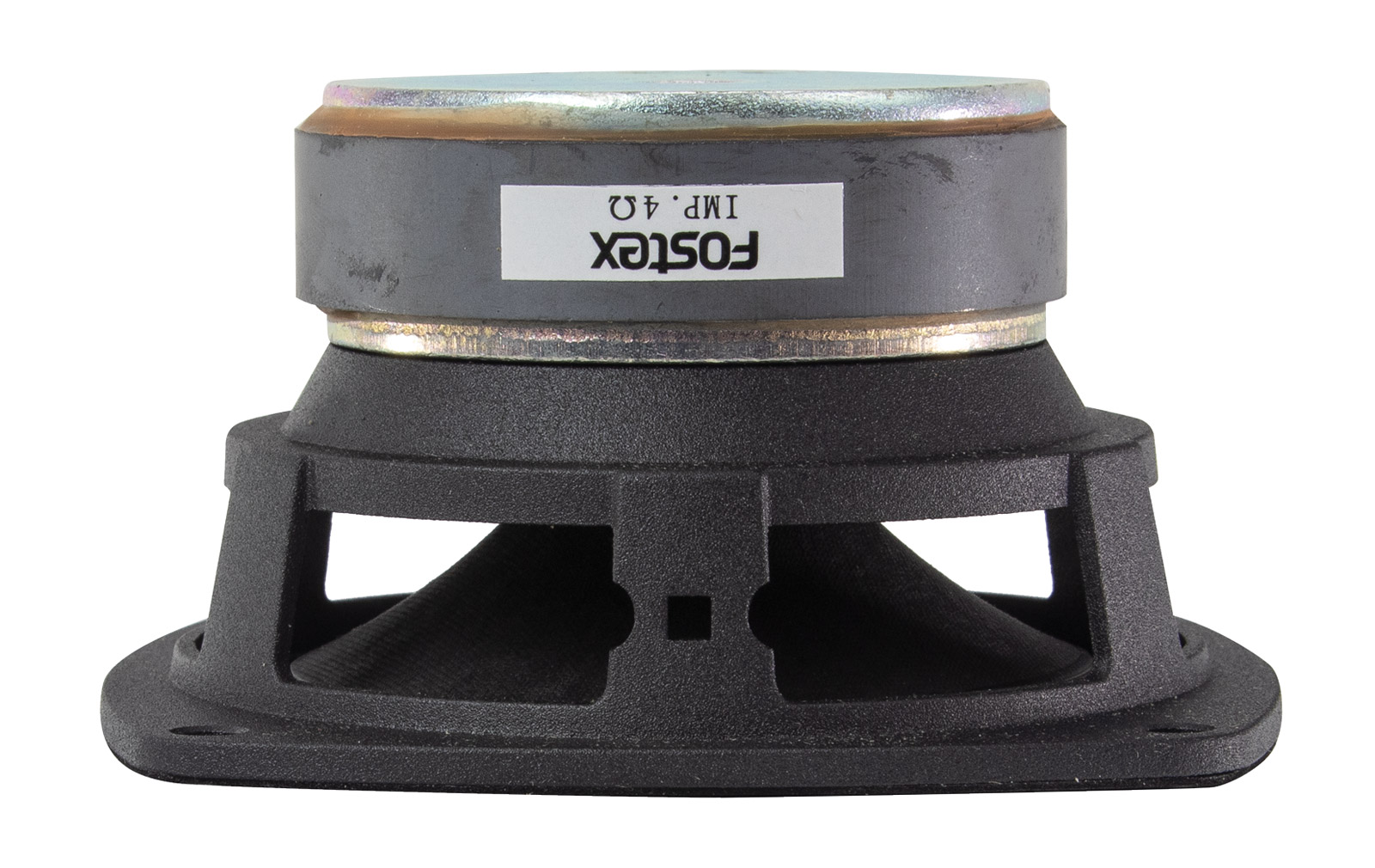

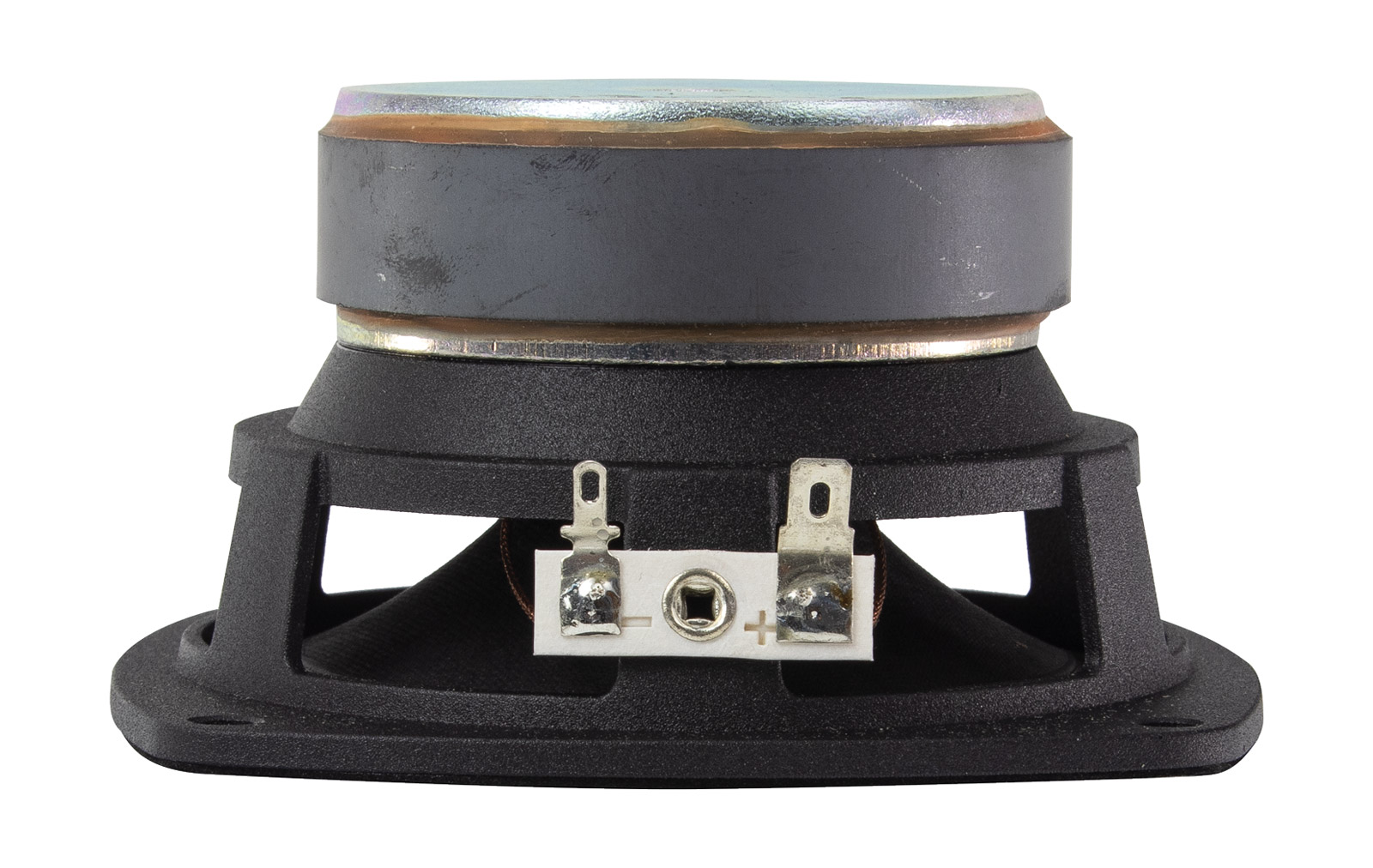

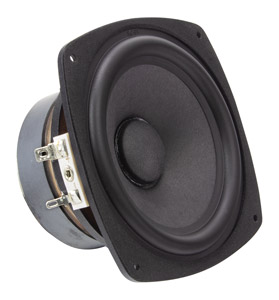

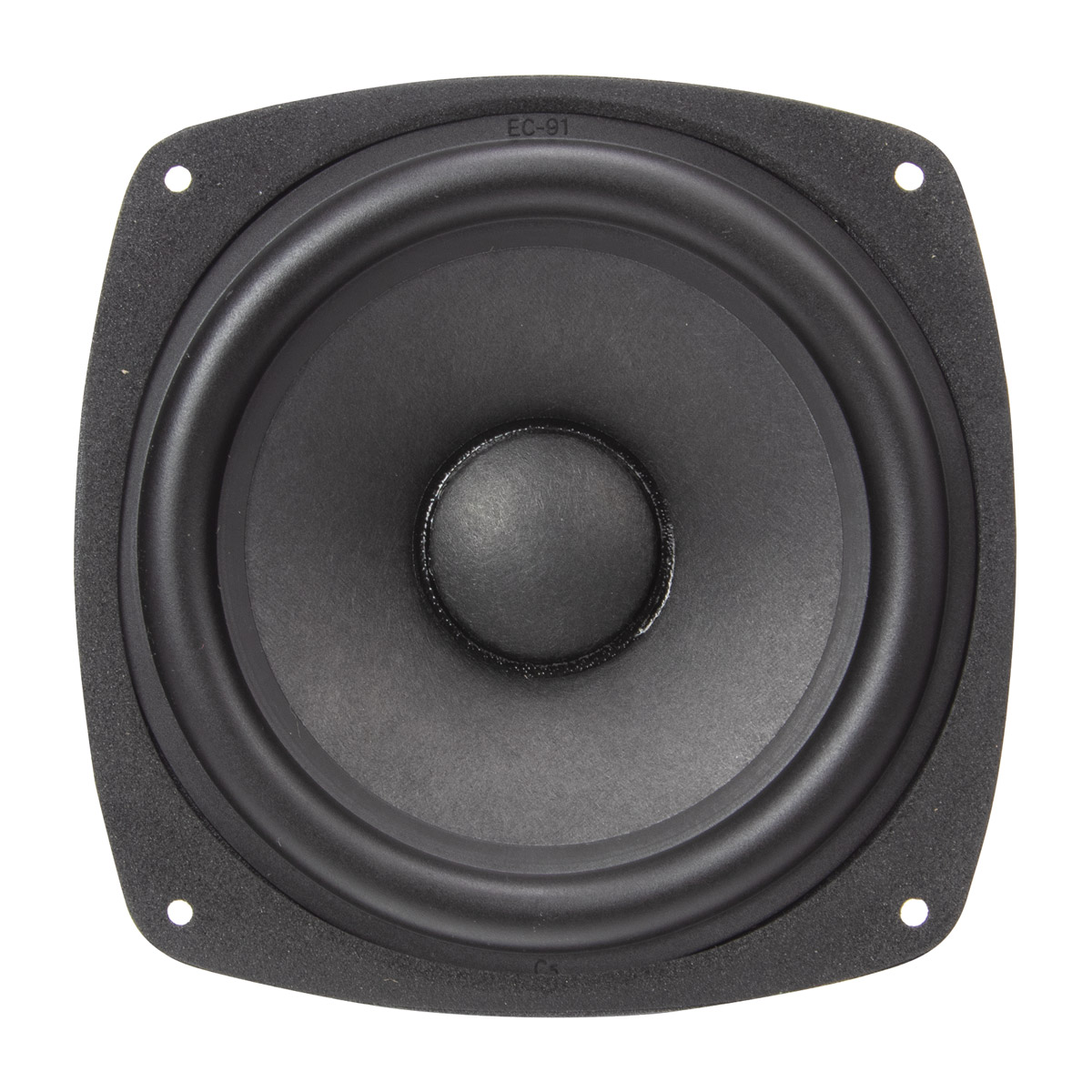

FOSTEX SPARE LOUDSPEAKER For 6301B, 6301X, 6301D, 6301N

Stock code
76-316
Brand
Fostex
FOSTEX SPARE LOUDSPEAKER For 6301B, 6301X, 6301D, 6301N
FOSTEX SPARE LOUDSPEAKER For 6301B, 6301X, 6301D, 6301NFOSTEX SPARE LOUDSPEAKER For 6301B, 6301X, 6301D, 6301NFOSTEX SPARE LOUDSPEAKER For 6301B, 6301X, 6301D, 6301NFOSTEX SPARE LOUDSPEAKER For 6301B, 6301X, 6301D, 6301N

FOSTEX POWERED LOUDSPEAKERS - 6301N series

These compact loudspeakers, each with built-in 20 watt class D amplifier and 4-inch full range driver, are suitable for talkback, line listening, cue programme, office monitoring, and even small PA applications.

The robust, aluminium, sealed die-cast case is finished in black and has power on/off and volume control on front panel; an an auto-standby feature adds energy efficiency. All models have an IEC 60320 C14 type, AC mains power inlet and are equipped with a switching power circuit. All models accept an analogue, nominally line-level input via an unbalanced 6.35mm mono jack. In addition to the 6.35mm input, the 6301NE provides an electronically balanced XLR input; 6301NX provides a transformer balanced XLR input; 6301ND provides IEC 60958 AES/EBU digital input and through output using XLR connectors; and 6301DT provides Dante audio input via RJ45 connector and using Audinate's Ultimo chipset. 6301DT allows the monitoring of either Dante or analogue input, or a mix or both.

The optional EB-6301 mounting bracket enables horizontal or vertical wall mounting.

Audio inputs
6301NB: Unbalanced, analogue, 6.35mm mono jack.
6301ND: AES/EBU digital with through out, XLR3 and unbalanced analogue 6.35mm mono jack.
6301NE: Electrically-balanced analogue, XLR3 and unbalanced analogue 6.35mm mono jack.
6301NX: Transformer-balanced analogue, XLR3 and unbalanced analogue 6.35mm mono jack.
6301DT: Dante digital audio input via RJ45, and unbalanced analogue 6.35mm mono jack.

Input impedance: 10k ohms, analogue; 110 ohms, AES/EBU digital, 6301ND. Response: 70Hz to 15kHz. Power: 20W. Output level: 85dB SPL/W at 1 metre, 98dB SPL maximum. Power source: 100V to 240V AC, 50/60Hz, 10W. Dimensions: 120 x 189 x 120mm (w x h x d). Weight: 2.2kg.

Included accessories: Manual, 2 metre IEC cable for AC power.
Optional accessories: EB-6301 wall-mounting U-bracket.

Priced and sold singly.
