DNH LOUDSPEAKERS - MED Approved

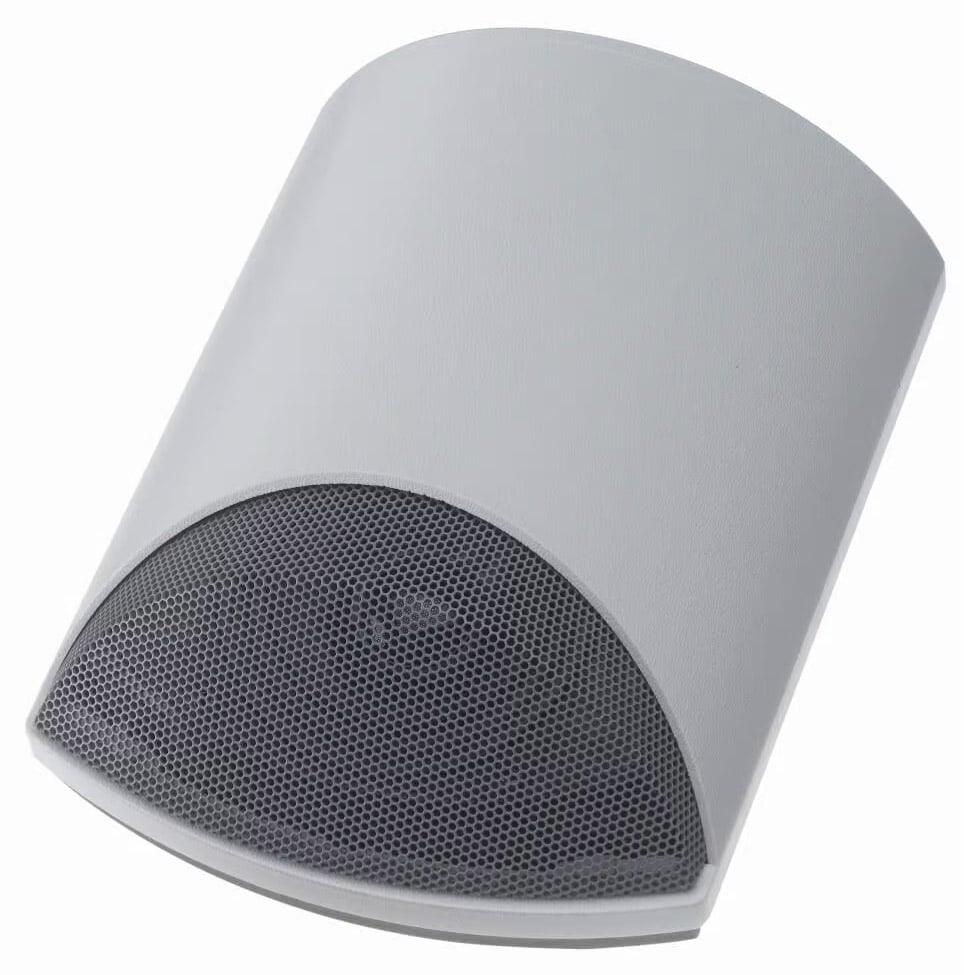

MC-50T-MED IP54, 50W

MC-50 is cabinet style loudspeaker that has been weatherproofed to IP54 - making it suitable for mounting in venues such as gardens and exposed eating areas. The loudspeaker is also 'ball-proof' and is suited for use in different sporting arenas. The curved cabinet is delivered with a bracket. The 70/100V transformer has taps of 3.5W/7.5W/15W/18W/27W/50W.

Material: ASA (Acrylonitrile Styrene Acrylate) thermoplastic. Colour: Grey, RAL7035. Max/min temperature: 90 to -40-degrees celsius. Power: 50W, rated. SPL: 98dB, 1W/1m; 115dB, rated power. Frequency response: 90Hz - 20kHz. Dimensions (HxWxD): 227 x 454 x 314mm. Weight: 6.2kg.

BA-56EExeNT-MED IP54 6W

This is an IP54 rated 'Ex' ceiling speaker that has extensive certification qualifying it for use in nearly all corners of the world. The product is made from aluminium and can be supplied with multiple gland entries to ensure loop in loop out support. The speaker has 100V taps at 0.3W/0.5W/1W/1.5W3W/6W to enable a sound pressure level of appropriate level. The loudspeaker requires a cutout of 190mm diameter.

Material: Anodized aluminium. Colour: White, RAL9010. Max/min temperature: 50 to -20-degrees celsius. Power: 6W, rated. SPL: 88dB, 1W/1m; 95dB, rated power. Frequency response: 150Hz - 20kHz. Dimensions (DiamxD): 220 x 172mm. Weight: 3kg.

BP-361ST-MED 6W

A 6W ceiling-speaker with secure screw mounting. The ceiling speaker is versatile, and is commonly employed in installations for public address announcements. Cut out hole 134-135mm, with a ceiling thickness of 12mm or less is required for installation. The 70/100V transformer has taps of 0.5W/1.5W/3W/6W.

Material: ABS/aluminium. Colour: White. Max/min temperature: 90 to -20-degrees celsius. Power: 6W, rated. SPL: 90dB, 1W/1m; 97dB, rated power. Frequency response: 120Hz - 20kHz. Dimensions (DiamxD): 162 x 67mm. Weight: 0.52kg.

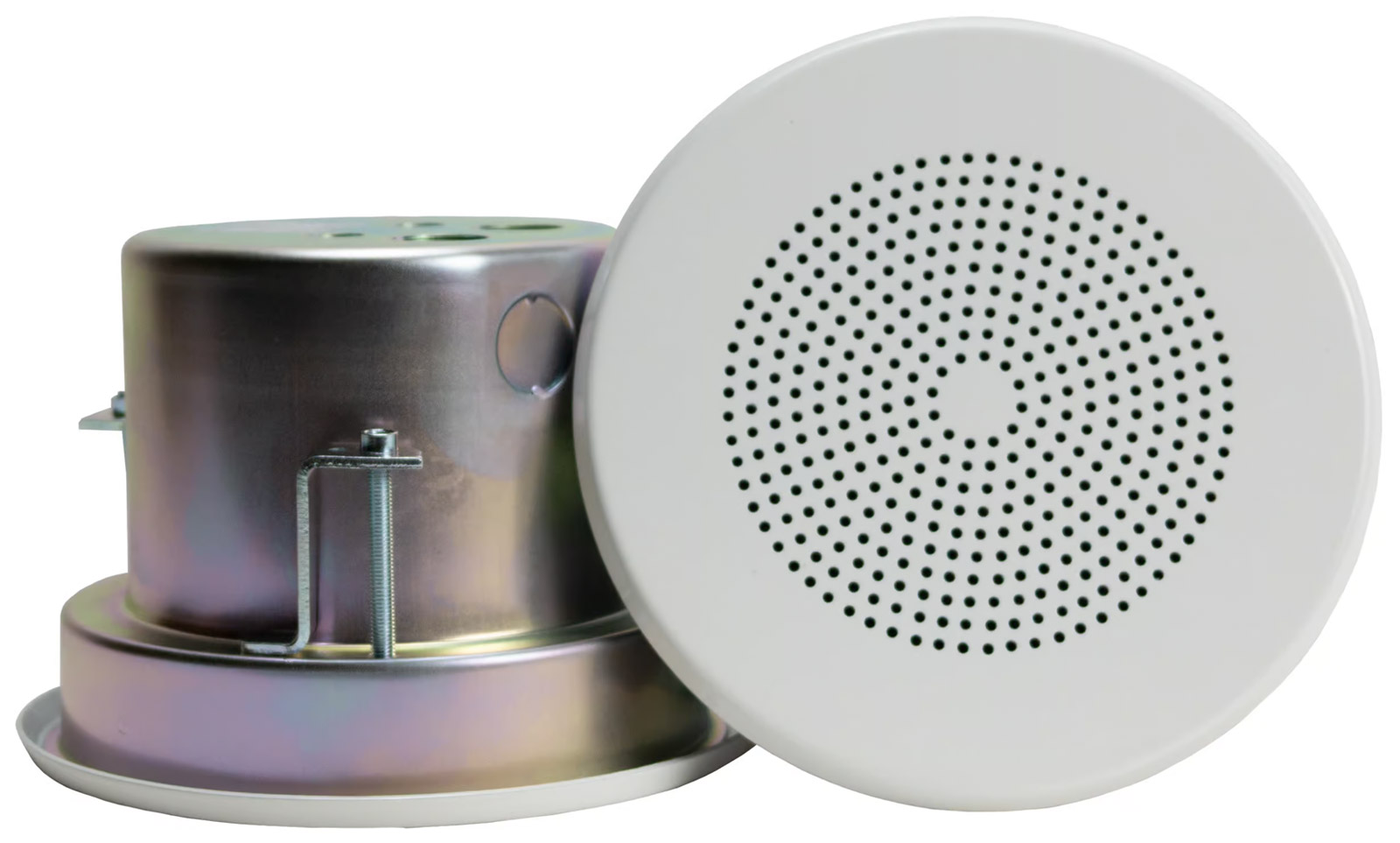

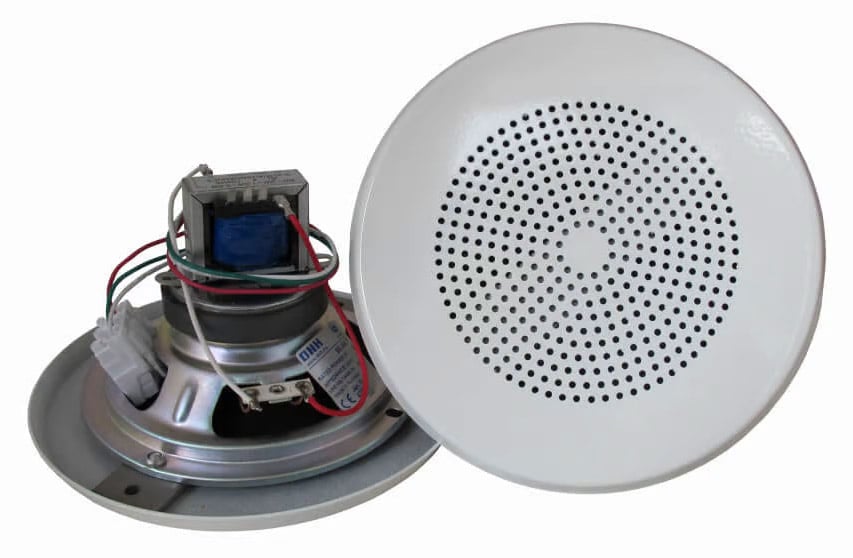

BP-361T-MED 6W

DNH BP-361T-MED is a 6W ceiling-speaker with secure screw mounting. The ceiling speaker is versatile and can be utilised in most installations for public address announcement. The 70/100V transformer has taps of 0.5W/1.5W/3W/6W. The loudspeaker requires a cutout of 131-133mm diameter.

Material: Steel/aluminium/ABS. Colour: White. Max/min temperature: 90 to -20-degrees celsius. Power: 6W, rated. SPL: 90dB, 1W/1m; 97dB, rated power. Frequency response: 150Hz - 20kHz. Dimensions (DiamxD): 162 x 45mm. Weight: 0.52kg.

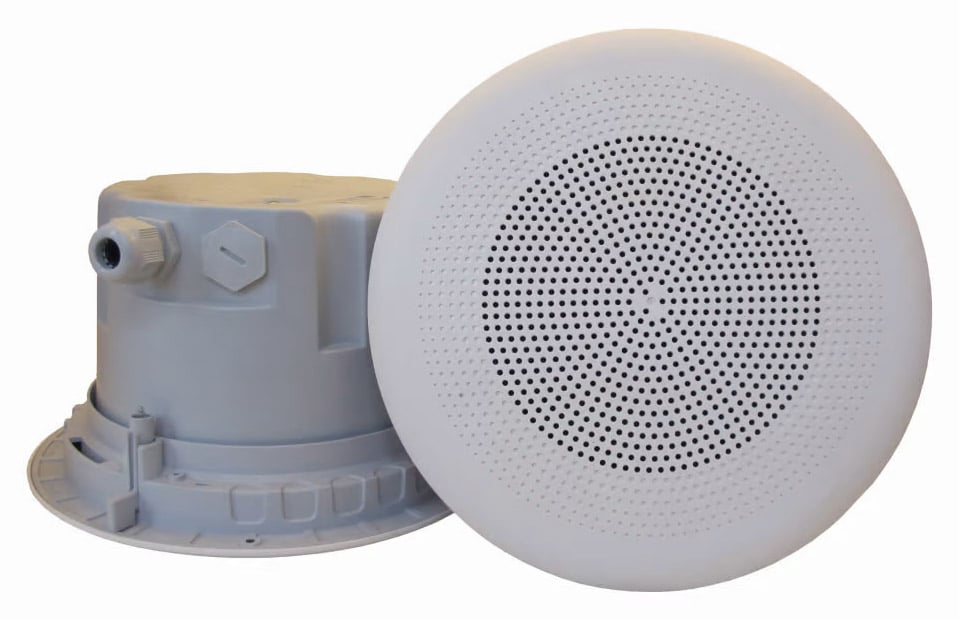

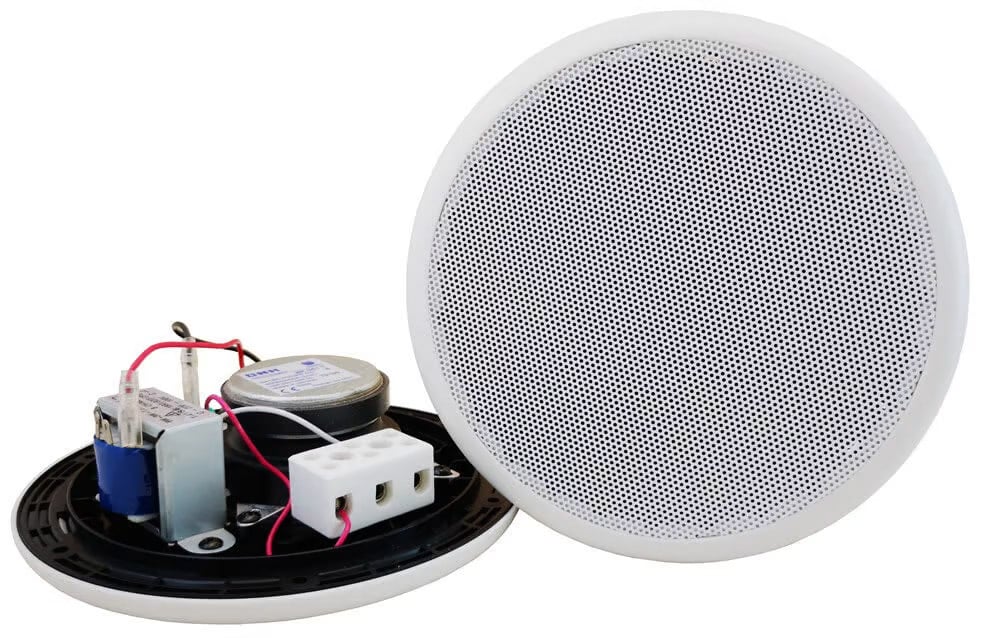

BPF-660IPT-MED IP55, 6W

This loudspeaker has an improved mounting system that makes it the most flexible 6-inch ceiling speaker DNH currently manufactures. The hooks are changeable to set upside down, allowing up to 55mm on the ceiling thickness. The easy mounted dust box has a M20 gland and a M20 blanking plug on the side as standard. Cut out hole 205-210mm, with a ceiling thickness of 55mm or less is required for installation. The 70/100V transformer has taps of 0.5W/1.5W/3W/6W.

Material: ABS polyamide. Colour: White. Max/min temperature: 90 to -20-degrees celsius. Power: 6W, rated. SPL: 93dB, 1W/1m; 100dB, rated power. Frequency response: 170Hz - 20kHz. Dimensions (DiamxD): 237 x 137mm. Weight: 1.3kg.

BS-560T-MED 6W

A 5-inch, 6W ceiling-speaker designed for installations of speech, alarm and music due to the wide frequency range. Once fitted, this loudspeaker has no visible screws. The 70/100V transformer has taps of 0.5W/1.5W/3W/6W.

Material: Aluminium. Colour: White. Max/min temperature: 90 to -20-degrees celsius. Power: 6W, rated. SPL: 90dB, 1W/1m; 97dB, rated power. Frequency response: 130Hz - 20kHz. Dimensions (DiamxD): 167 x 145mm. Weight: 0.66kg.

VES-561-54T-MED IP32C, 6W

DNH loudspeaker VES-561-54T-MED is tested and certified according to EN 54-24, therefore is suitable for fire and emergency announcement use. The 70/100V transformer has taps of 0.5W/1.5W/3W/6W.

Material: Steel/aluminium. Colour: White. Max/min temperature: 55 to -10-degrees celsius. Power: 6W, rated. SPL: 77dB, 1W/4m. Frequency response: 100Hz - 13kHz. Dimensions (DiamxD): 165 x 112mm. Weight: 1.1kg.

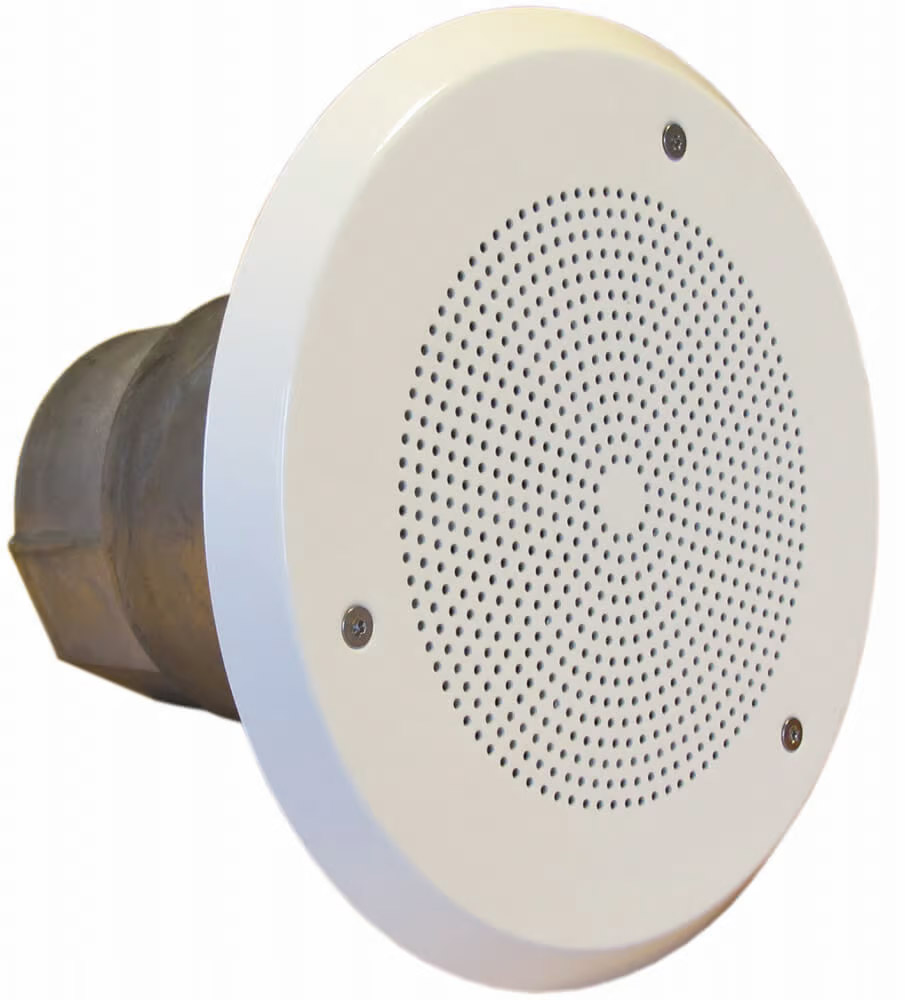

VES-561T-MED IP32, 6W

A 5-inch, 6W, BS5839 Part8 VA compliant, metal ceiling speaker with steel fire dome. The loudspeaker has a ceramic terminal block and thermal fuse. VES-561T-MED has dual M20 top or side cable entry options, a 7-step ratchet secure fitting, fold away terminal block, and a 3 legged cam variable ceiling thickness mounting mechanism. The 70/100V transformer has taps of 0.5W/1.5W/3W/6W.

Material: Steel. Colour: White. Max/min temperature: 90 to -20-degrees celsius. Power: 6W, rated. SPL: 90dB, 1W/1m; 97dB, rated power. Frequency response: 100Hz - 13kHz. Dimensions (DiamxD): 165 x 110mm. Weight: 1.1kg.

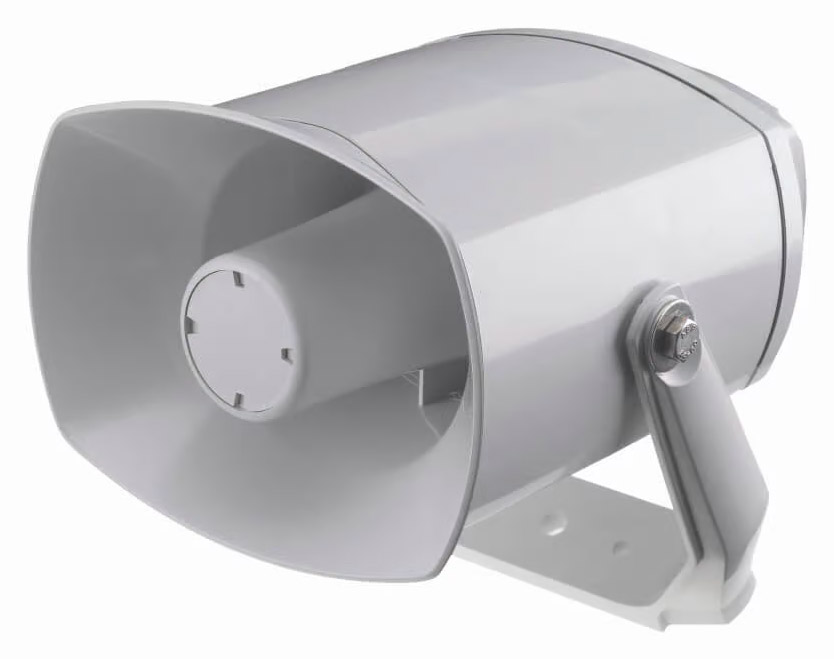

DSP-15-54T-MED IP67, EN54-24 approved, 15W

DNH DSP-15-54T-MED is tested and certified according to EN 54-24, therefore is suitable for fire and emergency announcement use. The 70/100V transformer has taps of 2W/4W/7.5W/15W.

Material: ABS. Colour: Grey, RAL7035. Max/min temperature: 90 to -40-degrees celsius. Power: 15W, rated. SPL: 106dB, 1W/1m. Frequency response: 350Hz - 11kHz. Dimensions (HxWxD): 144 x 170 x 207mm. Weight: 1.8kg.

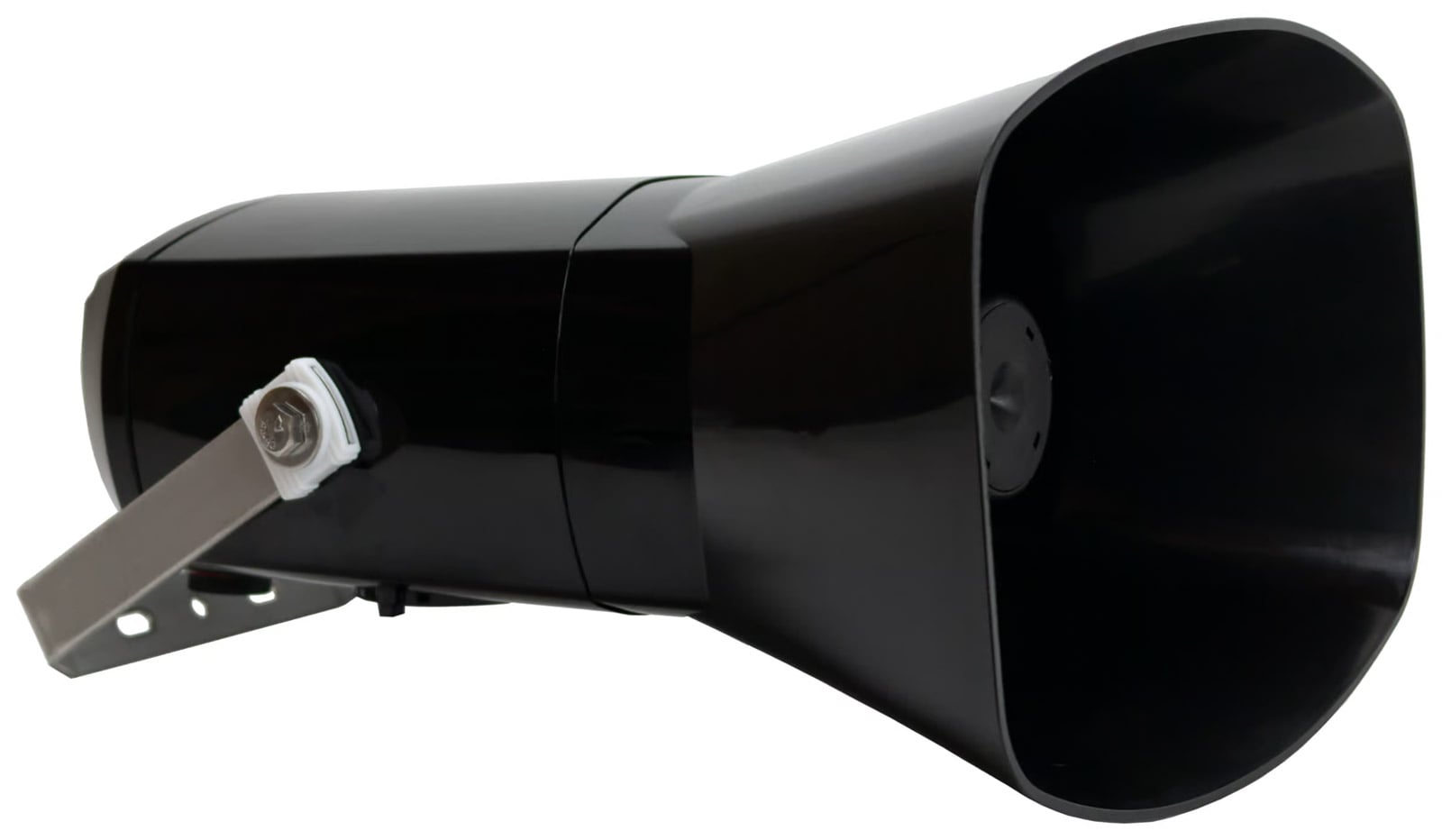

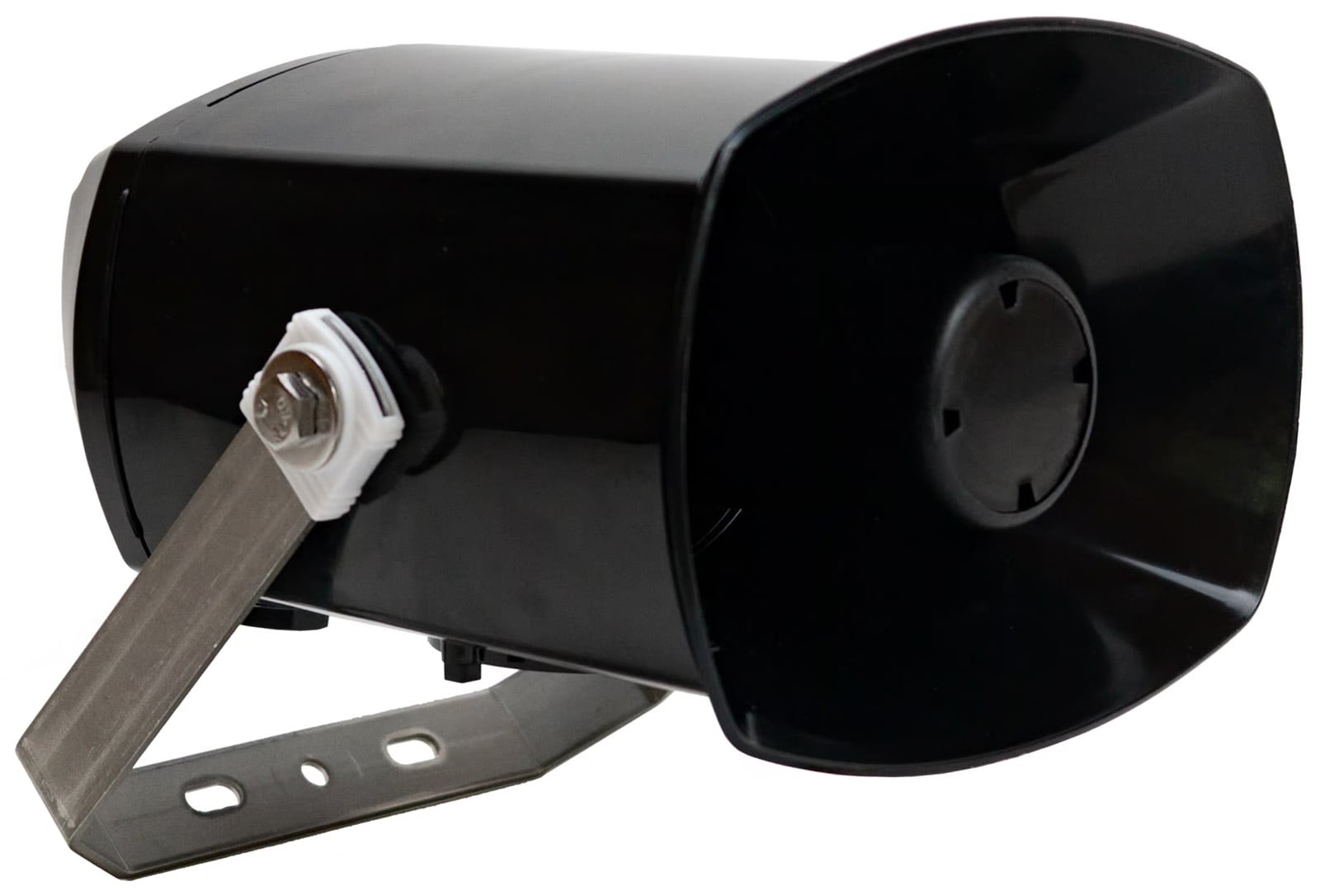

DSP-15EExmNT-MED IP66/67, Zone 1 explosion protected, 25W

A versatile 25W Ex plastic horn speaker weighs 2.2kg and features a spacious connection chamber of protection type ‘e’. The loudspeaker has dual M20 entries in the back lid for easy cable mounting and supports loop in loop out as standard. DSP-15EExmNT-MED has extensive certification qualifying it for use in nearly all corners of the world. This version has an inbuilt transformer with 1.5W/2.5W/5W/6.5W/15W/25W tappings. Certified to IECEx, ATEX, Inmetro, EAC, CCC, UL/CSA, BV,UKEX.

Material: Anti-static polyamide. Colour: Black. IP rating: 66/67. Max/min temperature: 60 to -50-degrees celsius. Power: 25W, rated; 30W, maximum. SPL: 106dB, 1W/1m; 118dB, rated power. Frequency response: 380Hz - 8kHz. Dimensions (HxWxD): 144 x 170 x 207mm. Weight: 2.2kg.

DSP-15EExmNLT-MED IP66/67, Zone 1 explosion protected, 25W

The long flare variant of the DSP-15EExmNT-MED is used when there is a requirement of a higher sound pressure level and increased directivity. The loudspeaker has dual M20 entries in the back lid for easy cable mounting and supports loop in loop out as standard. The model has extensive certification qualifying it for use in nearly all corners of the world. This version has an inbuilt transformer with 1.5W/2.5W/5W/6.5W/15W/25W tappings. Certified to IECEx, ATEX, Inmetro, EAC, CCC, UL/CSA, BV,UKEX.

Material: Anti-static polyamide. Colour: Black. IP rating: 66/67. Max/min temperature: 60 to -50-degrees celsius. Power: 25W, rated; 30W, maximum. SPL: 109dB, 1W/1m; 122dB, rated power. Frequency response: 380Hz - 7kHz. Dimensions (HxWxD): 200 x 274 x 248mm. Weight: 2.2kg.

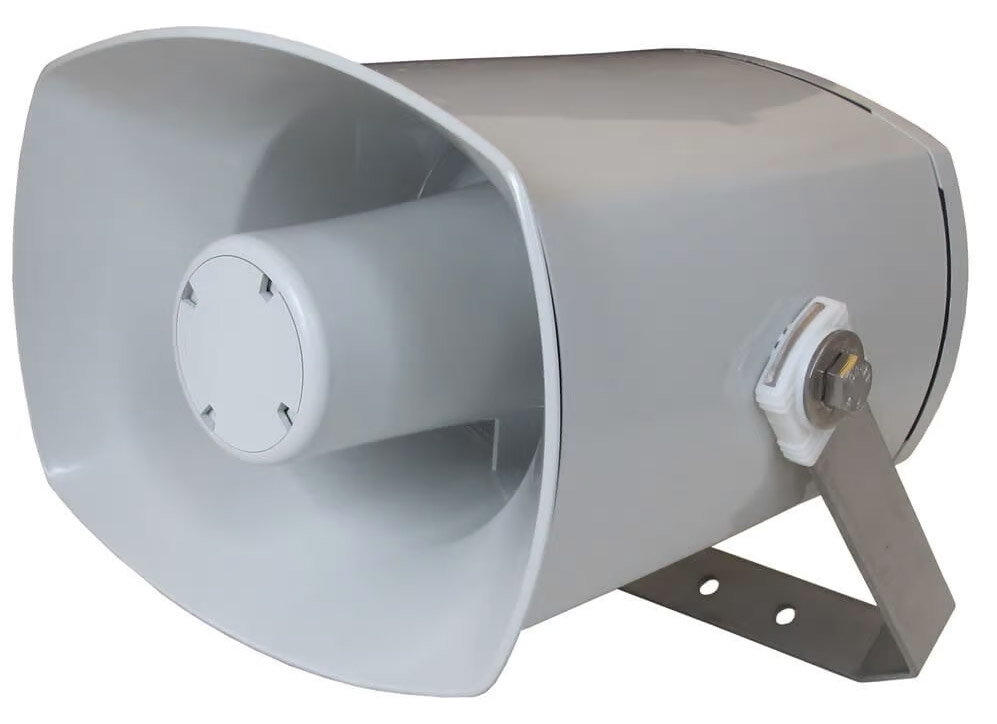

DSP-15T-MED IP67, 15W

DSP-15T-MED is a 15W plastic, IP67 marine grade weatherproof horn speaker with an extra large termination chamber. This allows for easier installation and reduces the requirement for additional junction boxes.

Material: ASA (Acrylonitrile Styrene Acrylate. Colour: Grey, RAL7035. IP rating: 67. Max/min temperature: 90 to -50-degrees celsius. Power: 15W, rated; 20W, maximum. SPL: 106dB, 1W/1m; 117dB, rated power. Frequency response: 350Hz - 11kHz. Dimensions (HxWxD): 144 x 170 x 207mm. Weight: 1.8kg.

HP-10-54T-MED IP66/67, EN54-24 approved, 10W

DNH HP-10-54T-MED is tested and certified according to EN 54-24, therefore is suitable for fire and emergency announcement use. The 70/100V transformer has taps of 1W/2.5W/5W/10W.

Material: Ronfalin. Colour: Grey, RAL7035. Max/min temperature: 70 to -25-degrees celsius. Power: 10W, rated. Sensitivity: 87dB, 1W/4m. SPL: 96dB, 10W/4m. Frequency response: 100Hz - 11kHz. Dimensions (DiamxD): 139 x 200mm. Weight: 1.1kg.

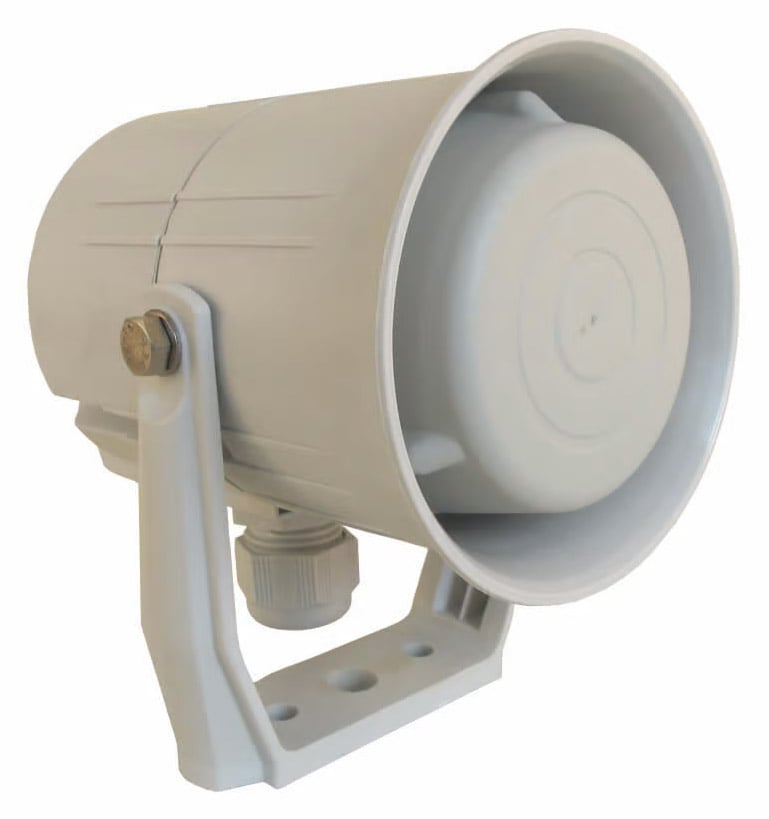

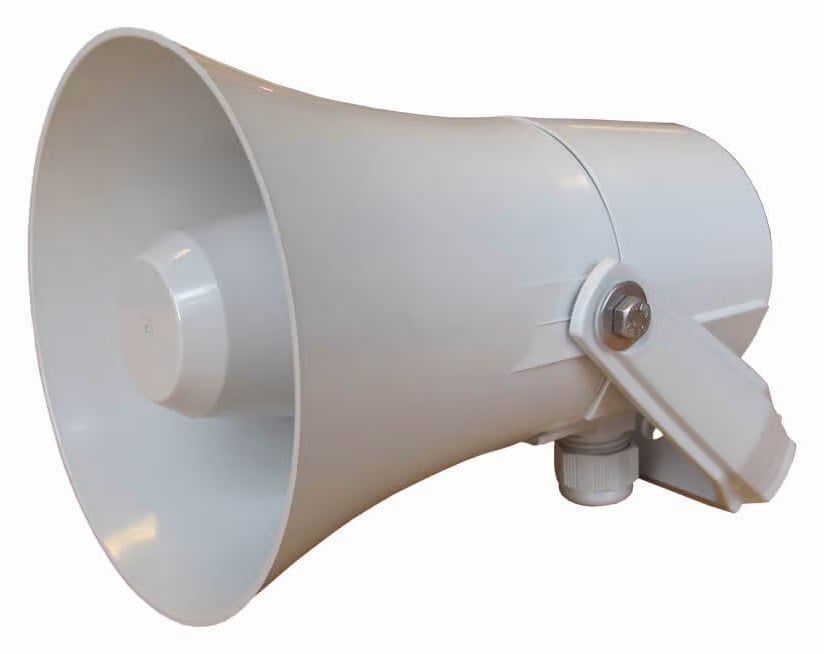

HP-10T-MED IP66/67, 10W

A 10W, plastic manufactured loudspeaker that has been designed for it's small size and lightweight components. The loudspeaker is suitable for outdoor installations and is mounted via integrated bracket. Cable connection is via included M20 glands. The 70/100V transformer has taps of 1W/2.5W/5W/10W.

Material: Ronfalin. Colour: Grey, RAL7035. Max/min temperature: 90 to -50-degrees celsius. Power: 10W, rated. SPL: 107dB, 1W/1m; 116dB, rated power. Frequency response: 370Hz - 11kHz. Dimensions (DiamxD): 139 x 200mm. Weight: 1.1kg.

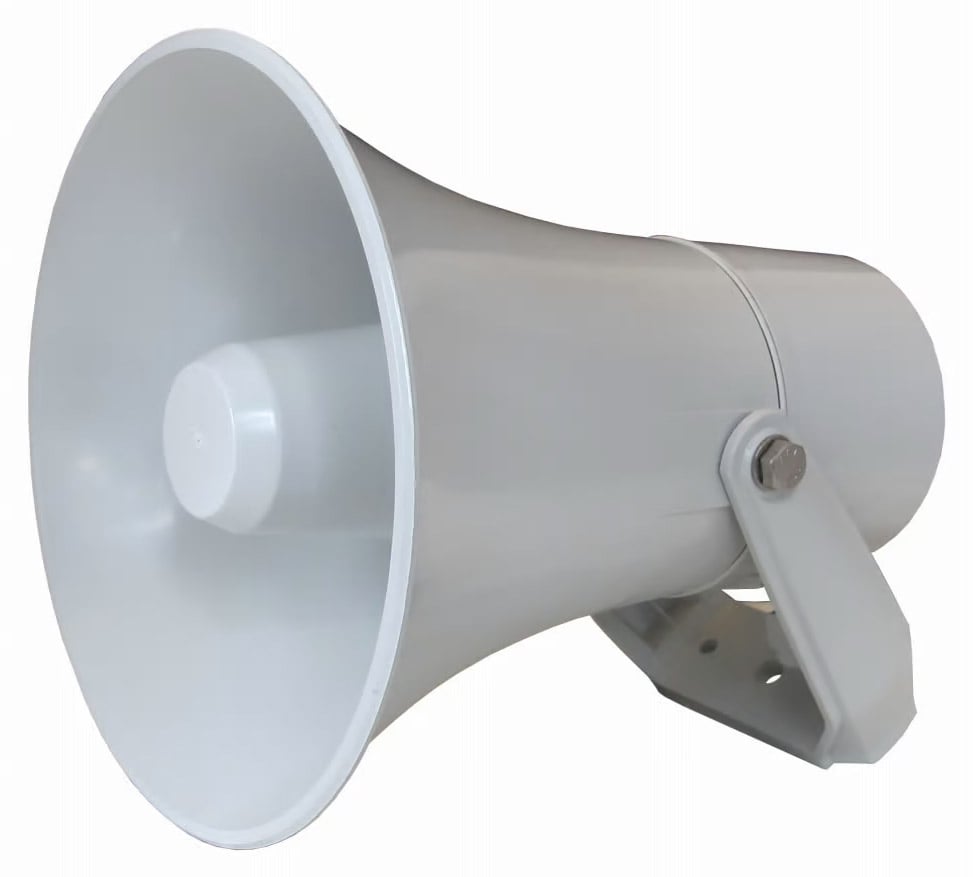

HP-15T-MED IP66/67, 15W

Like HP-10T-MED however rated at 15W output power. Along with power, the loudspeaker is larger than HP-10T-MED and therefore produces a wider frequency response. The 70/100V transformer has taps of 2W/4W/7.5W/15W.

Material: Ronfalin. Colour: Grey, RAL7035. Max/min temperature: 90 to -50-degrees celsius. Power: 10W, rated. SPL: 108dB, 1W/1m; 118dB, rated power. Frequency response: 330Hz - 11kHz. Dimensions (DiamxD): 200 x 250mm. Weight: 1.4kg.

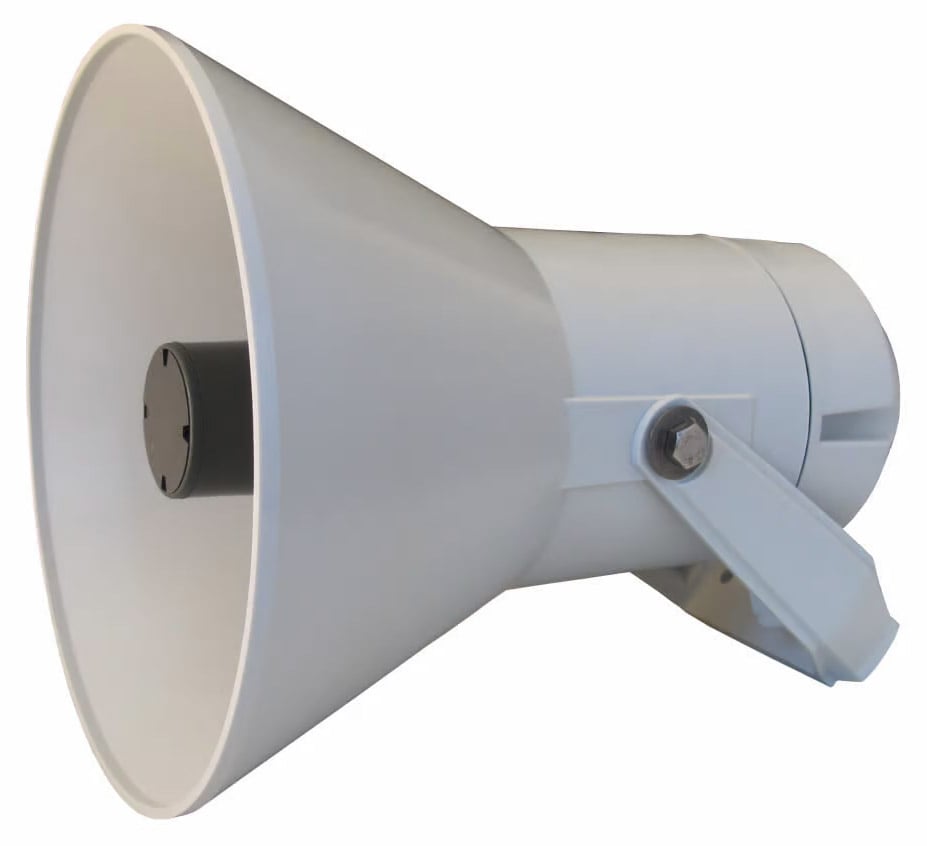

HP-20T-MED IP66/67, 20W

A 20W, plastic manufactured, IP67 marine grade, weatherproof horn speaker. This loudspeaker has been manufactured for extreme weather conditions and thus very suitable for outdoor use. The 70/100V transformer has taps of 2W/4W/7.5W/15W/20W.

Material: Polymide. Colour: Grey, RAL7035. Max/min temperature: 110 to -50-degrees celsius. Power: 20W, rated. SPL: 110dB, 1W/1m; 122dB, rated power. Frequency response: 310Hz - 8kHz. Dimensions (DiamxD): 237 x 286mm. Weight: 2.1kg.

HP-30T-MED IP67, 30W

Like HP-20T-MED however rated at 30W output power. The 70/100V transformer has taps of 2W/4W/7.5W/15W/20W/30W.

Material: Polymide. Colour: Grey, RAL7035. Max/min temperature: 110 to -50-degrees celsius. Power: 30W, rated. SPL: 110dB, 1W/1m; 124dB, rated power. Frequency response: 310Hz - 8kHz. Dimensions (DiamxD): 237 x 286mm. Weight: 2.2kg.

HP-6CT-MED IP67, 6W

A 6W plastic miniature loudspeaker that is marine grade IP67 weatherproof rated and therefore suitable for outdoor installations. The EN 45545-2 compliant loudspeaker is delivered complete with termination chamber. Can be delivered as a moulded model to withstand high pressure jetting IP 69K by way of special request. The 70/100V transformer has taps of 0.5W/1.5W/3W/6W.

Material: Polymide. Colour: Grey, RAL7035. Max/min temperature: 110 to -40-degrees celsius. Power: 6W, rated. SPL: 100dB, 1W/1m; 107dB, rated power. Frequency response: 300Hz - 20kHz. Dimensions (DiamxD): 97 x 132mm. Weight: 0.62kg.

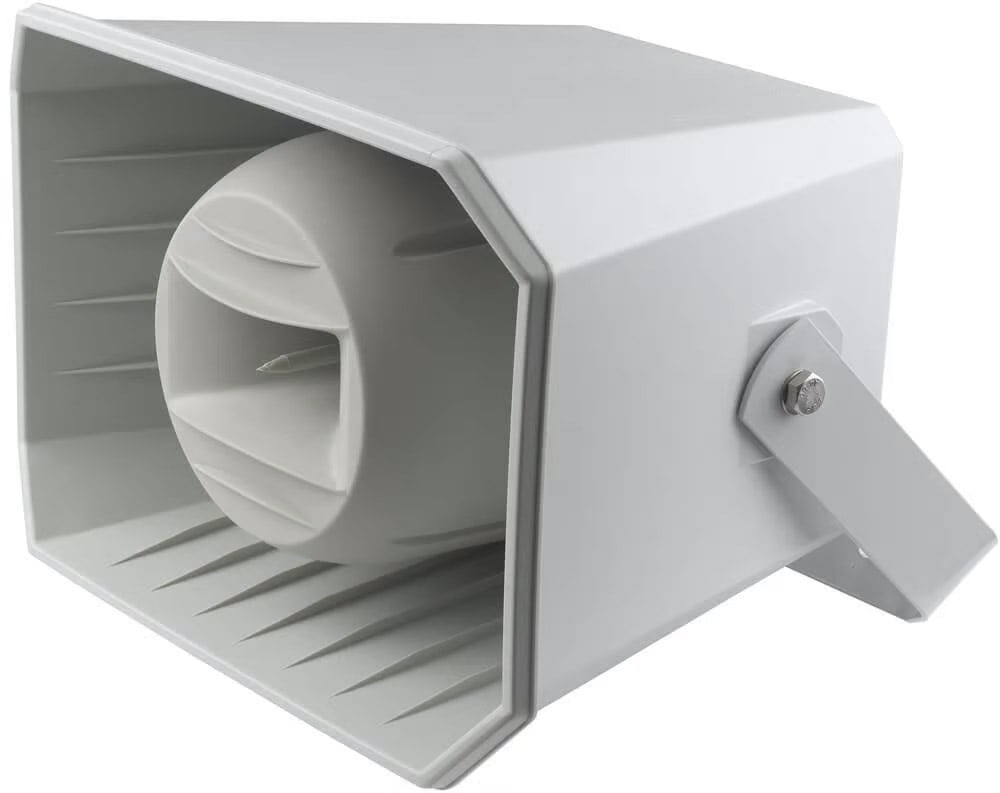

MH-30T-MED IP55, 30W

A 30W horn loudspeaker that has been designed for the projection of music playback. DNH have designed in such a way that the long throw music reproduction retains bass frequencies. MH-30T-MED is suitable for public address in both indoor and outdoor applications. The extended frequency range of MH-30(T) makes it suitable for all kinds of music. The 100V transformer has taps of 2W/2.7W/5.5W/7.5W/15W/30W, and 8ohms.

Material: ABS. Colour: Grey, RAL7035. Max/min temperature: 90 to -40-degrees celsius. Power: 30W, rated. SPL: 102dB, 1W/1m; 116dB, rated power. Frequency response: 140Hz - 16kHz. Dimensions (HxWxD): 252 x 362 x 310mm. Weight: 3.9kg.

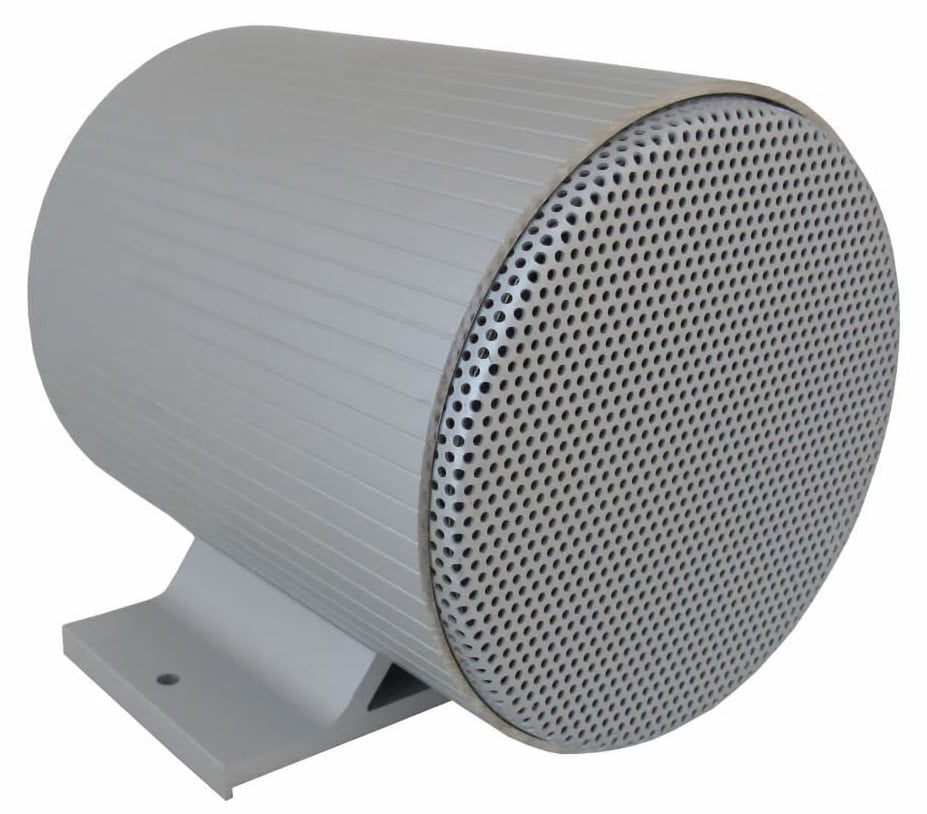

CAR-6T-MED 6W

A projector loudspeaker with 'elegant design and excellent bi-directional sound quality'. CAR-6T is one of DNH's most popular loudspeakers for many years. 100V tappings include 0.5W/1.5W/3W/6W.

Material: Aluminium. Colour: White, RAL9010. Max/min temperature: 90 to -40-degrees celsius. Power: 6W, rated. SPL: 90dB, 1W/1m; 96dB, rated power. Frequency response: 150Hz - 20kHz. Dimensions (HxWxD): 152 x 175 x 175mm. Weight: 1.9kg.

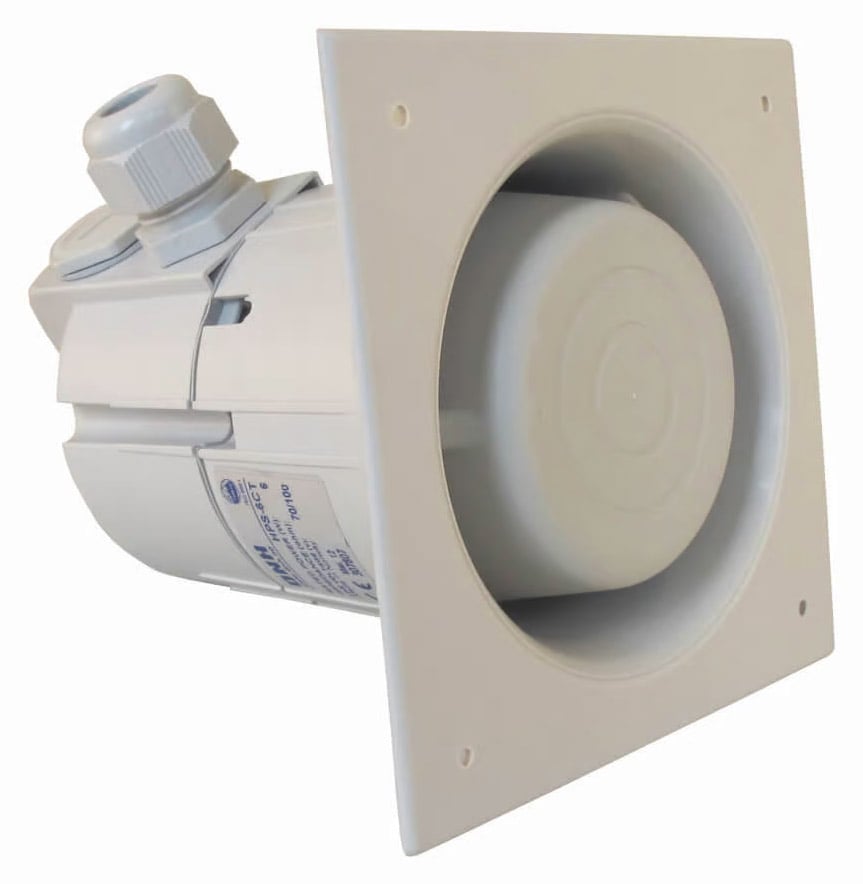

HPS-6CT-MED IP67, 6W

This 6W plastic miniature loudspeaker is marine grade IP67 weatherproof rated with a square front for recessed surface mounting. Complete with termination chamber. Can be delivered as a moulded model to withstand high pressure jetting IP 69K at special request. 70/100V tappings include 0.5W/1.5W/3W/6W.

Material: Polymide. Colour: Grey, RAL7035. Max/min temperature: 110 to -40-degrees celsius. Power: 6W, rated. SPL: 100dB, 1W/1m; 107dB, rated power. Frequency response: 300Hz - 20kHz. Dimensions (HxWxD): 121 x 121 x 132mm. Weight: 1.9kg.

CP-6T-MED 6W

A 6W plastic manufactured loudspeaker designed for office environment. The loudspeaker is simple to install, and often utilised for public address and background music systems. 70/100V tappings include 0.5W/1.5W/3W/6W.

Material: ABS. Colour: White, RAL9010. Max/min temperature: 90 to -20-degrees celsius. Power: 6W, rated. SPL: 86dB, 1W/1m; 94dB, rated power. Frequency response: 170Hz - 20kHz. Dimensions (HxWxD): 67 x 149 x 193mm. Weight: 0.6kg.

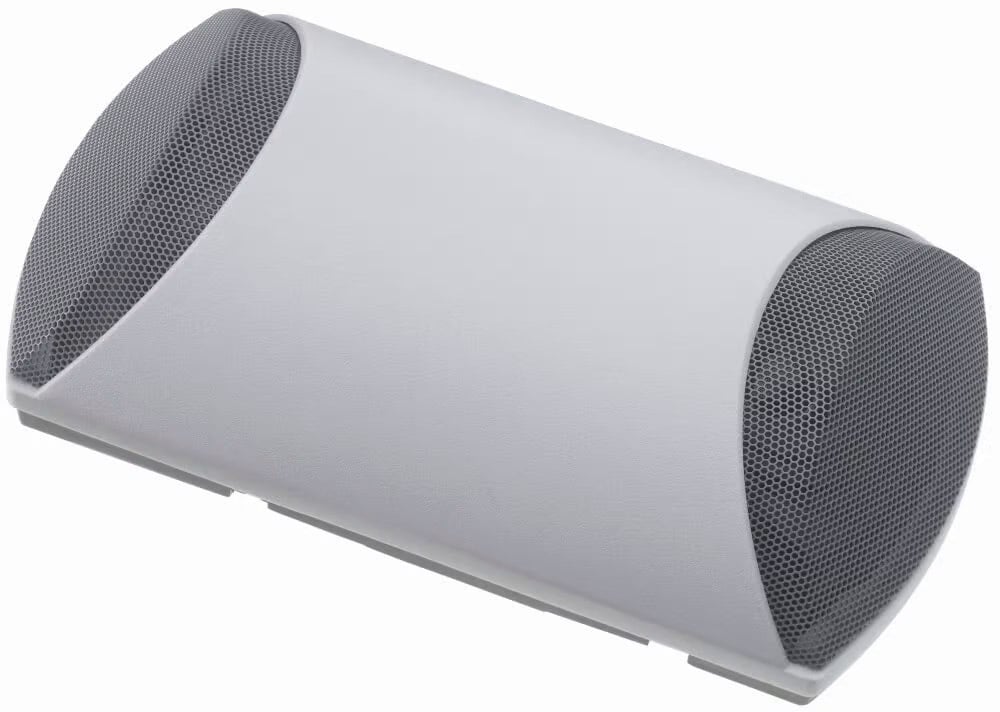

CP-66T-MED IP20, 6W

Like CP-6T-MED however bidirectional. The 6W plastic loudspeaker is simple to install and often used in applications including corridors. The speaker is suited to public address and background music systems. 70/100V tappings include 0.5W/1.5W/3W/6W.

Material: ABS. Colour: White, RAL9010. Max/min temperature: 90 to -20-degrees celsius. Power: 6W, rated. SPL: 86dB, 1W/1m; 94dB, rated power. Frequency response: 140Hz - 20kHz. Dimensions (HxWxD): 67 x 149 x 270mm. Weight: 0.77kg.

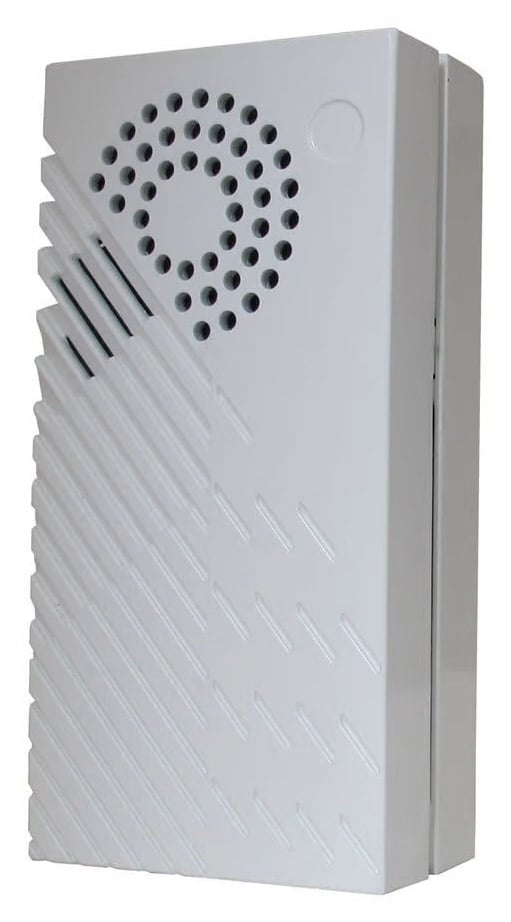

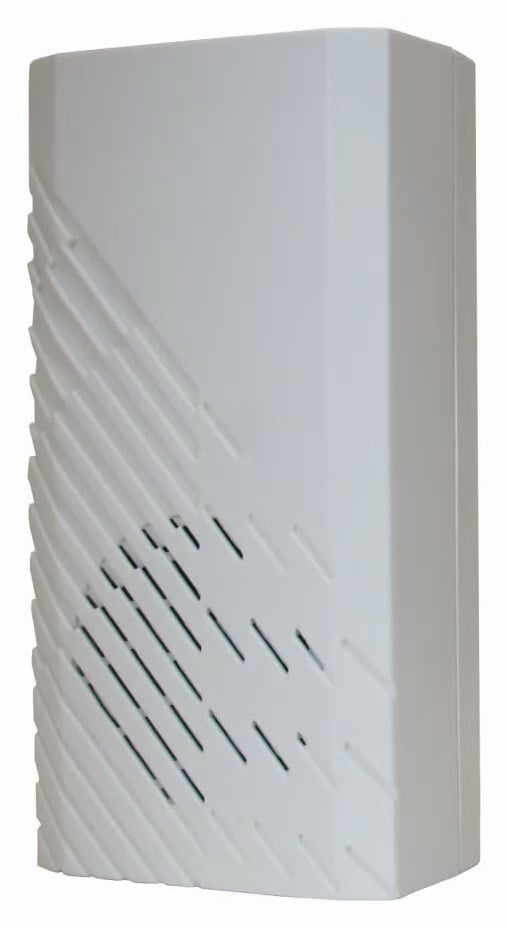

SAFE-10P-54T-MED IP55, EN54-24 approved, 10W

A 10W, plastic manufactured, IP55 rated cabinet speaker fitted with separate internal compartment for electronic components. Often used in indoor applications and bathrooms on ships. SAFE-10P-54T-MED is tested and certified according EN54-24. 70/100V tappings include 1W/2.5W/5W/10W.

Material: ABS. Colour: White, RAL9010. Max/min temperature: 55 to -10-degrees celsius. Power: 10W, rated. SPL: 72dB, 1W/4m; 81dB, 10W/4m. Frequency response: 100Hz - 17kHz. Dimensions (HxWxD): 188 x 86.5 x 53mm. Weight: 0.8kg.

SAFE-10PT-MED IP55, 10W

Like SAFE-10P-54T-MED however this version is not certified to EN54-24. 70/100V tappings include 1W/2.5W/5W/10W.

Material: ABS. Colour: White, RAL9010. Max/min temperature: 90 to -40-degrees celsius. Power: 10W, rated. SPL: 87dB, 1W/1m; 97dB, rated power. Frequency response: 160Hz - 17kHz. Dimensions (HxWxD): 188 x 86.5 x 53mm. Weight: 0.8kg.

SAFE-15T-MED 15W

This 15W aluminium manufactured horn speaker is contained within a vandal proof cabinet. It is designed for use in alarm systems, providing horn sound pressure levels for industrial environments as well as applications where size or appearance are a priority. 70/100V tappings include 1W/2.5W/5W/8W/15W.

Material: Aluminium. Colour: White/red. Max/min temperature: 110 to -50-degrees celsius. Power: 15W, rated. SPL: 101dB, 1W/1m; 113dB, rated power. Frequency response: 500Hz - 6kHz. Dimensions (HxWxD): 210 x 105 x 59mm. Weight: 1.7kg.

SAFE-561-54T-MED IP32C, EN54-24 approved, 6W

This loudspeaker is tested and certified according to EN54-24. 70/100V tappings include 0.5W/1.5W/3W/6W.

Material: Steel/aluminium. Colour: White, RAL9010. Max/min temperature: 90 to -20-degrees celsius. Power: 6W, rated. SPL: 77dB, 1W/1m; 84dB, rated power. Frequency response: 100Hz - 13kHz. Dimensions (DiamxD): 169 x 65mm. Weight: 0.8kg.

SAFE-561IPT-MED IP55, 6W

A 5-inch, 6watt, BS5839 Part 8 VA compliant speaker complete with ceramic terminal block and thermal fuse. 1st fit, 2nd fit mounting arrangement, to allow full circuit test before final connection. Can be glanded for side entry or into the rear of the unit for discreet cabling. The speaker also has low profile for wall mounting safety and additional protection to achieve IP55. 70/100V tappings include 0.5W/1.5W/3W/6W.

Material: Steel. Colour: White, RAL9010. Max/min temperature: 90 to -20-degrees celsius. Power: 6W, rated. SPL: 90dB, 1W/1m; 97dB, rated power. Frequency response: 180Hz - 13kHz. Dimensions (DiamxD): 169 x 65mm. Weight: 1.3kg.
