MUXLAB PRESENTATION SWITCHERS

2 items
MUXLAB 500531 PRESENTATION SWITCHER 2x1, USB-C
MUXLAB 500531 PRESENTATION SWITCHER 2x1, USB-CMUXLAB 500533 PRESENTATION SWITCHER 5x1, USB-C/HDMI, Dante enabledMUXLAB 500533 PRESENTATION SWITCHER 5x1, USB-C/HDMI, Dante enabled

MuxLab presentation switchers have been designed for application in conference room, education, or hospitality where multiple presenters require multiple devices for their presentations.

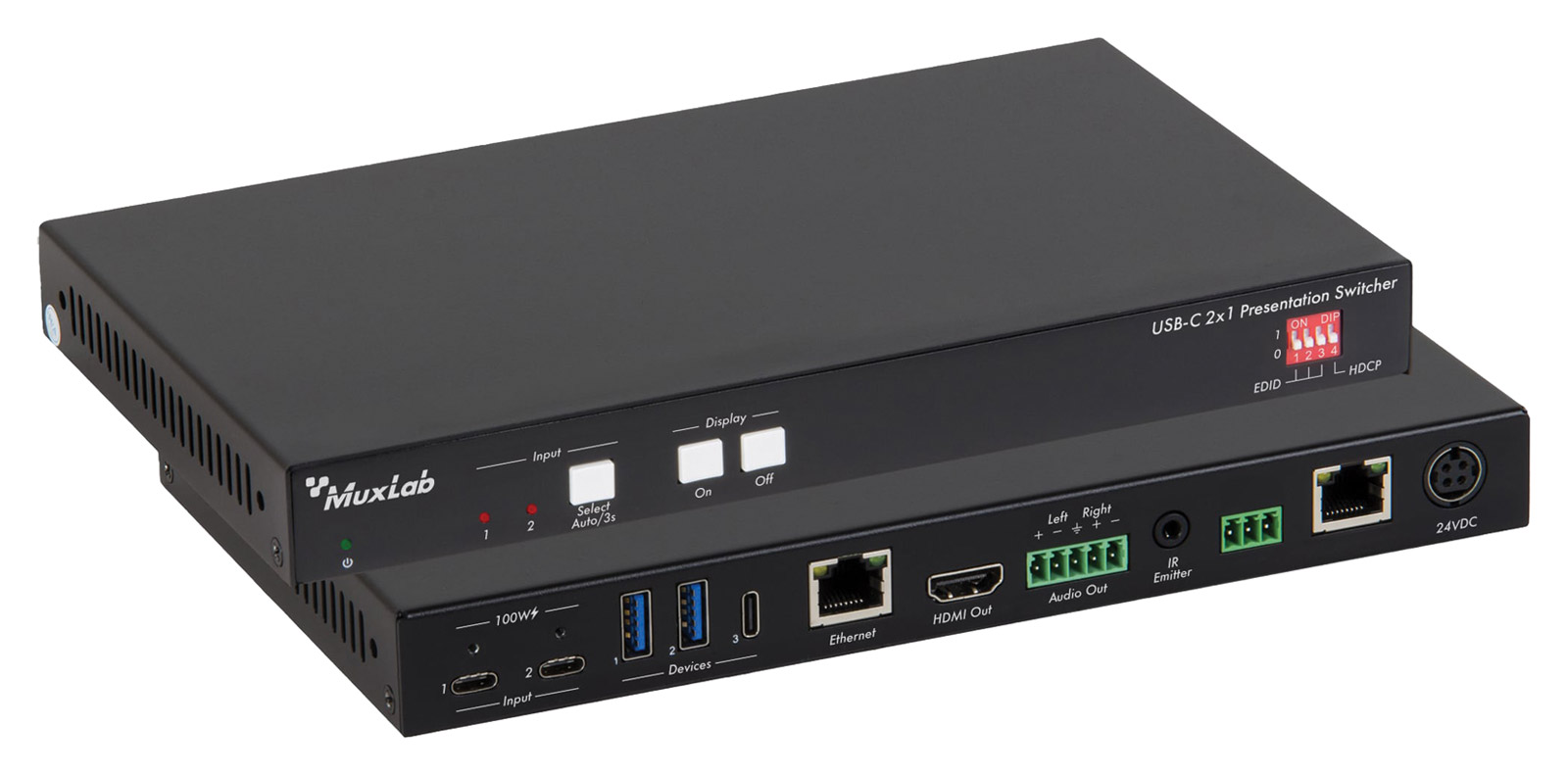

500531 2x1 USB-C to HDMI switcher

MuxLab 500531 presentation switcher offers switching of up to 2x USB-C inputs to a single HDMI output. Supporting video resolution up to 4K at 60Hz, 4:4:4, and downscaling to 1080P, the switcher allows the preferred video format and quality along with audio de-embedding with a balanced output via 5-pin terminal block. Compatible HDMI audio formats include LPCM 7.1 audio, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, DTS: X, and DTS-HD Master Audio.

The switcher features multiple methods of control including 1x EDID, 1x RS232, 1x USB-C, 2x USB-A, and infrared, along with an 'auto' mode that enables automatic switching to the first detected device source. Manual control is also available via the buttons located on the front facing panel.

Power supply: DC 24V, 6.5A. Dimensions (WxHxD): 228 x 24.5 x 135mm. Weight: 810g


500533 5x1 USB-C/HDMI to HDMI switcher, with Dante

Muxlab 500533 is a switching device for presentations that offers up to five inputs, with varying input type, and single HDMI output. The switcher is HDMI 2.0b and HDCP 2.2 compliant, and supports video resolutions up to 4K at 60Hz, 4:4:4. The switcher has various methods of control including local control, infrared remote, Dante, RS-232, TCP/IP or we GUI, whilst the Dante feature also supports audio embedding input and output.

The switchers transmitter houses input connections including 3x HDMI inputs, 2x USB-C, 1x line in via 5-pin Phoenix connector, 1x Dante via RJ45; output connections including 1x HDMI output, 1x HDBT output via RJ45, 1x line output via 5-pin Phoenix connector; and control connections including 1x RS-232 via 3-pin Phoenix connector, 1x LAN via RJ45, 1x USB host via USB-B, 2x USB devices via USB-A, 1x infrared input 3.5mm stereo mini-jack, and 1x infrared output via 3.5mm stereo mini-jack. The receiver hardware has input connections including 1x HDMI input, 1x HDBaseT input via RJ45; outputs including 1x HDMI output, 1x Line output via 5-pin Phoenix connector; and control connections including 1x RS-232 via 3-pin Phoenix connector, 1x USB host via USB-B, 2x USB devices via USB-A, 1x service connections via microUSB, 1x infrared input via 3.5mm stereo mini-jack, and 1x infrared output via 3.5mm stereo mini-jack.

Included parts: 1x USB-C HDMI 5x1 presentation switcher with Dante, 1x HDBaseT receiver, 1x 1.5m infrared Blaster cable, 1x 1.5m infrared wideband receiver cable, 1x infrared remote control, 2x 3pin-3.5mm male Phoenix connectors, 3x 5-pin Phoenix connectors, 1x 24VDC/8A power supply, 1x 1.5m AC power cord, and 4x Mounting Ear for matrix and receiver

Supported input video resolutions: 480i to1080p, 50/60Hz, 4K x 2K at 24/30Hz, 4K2K at 50Hz/60Hz 4:4:4. Output video resolutions: 3840 x 2160p60, 3840 x 2160p50, 4096 x 2160p60, 4096 x 2160p50, 3840 x 2160p30, 3840 x 2160p25, 1920 x 1200p60RB, 1920 x 1080p60, 1920 x 1080p50, 1360 x 768p60, 1280 x 800p60, 1280 x 720p60, 1280 x 720p50,1024 x 768p60. Colour space: 8/10/12-bit, 8-bit 4K60Hz, input; 8-bit, output. Audio sample rate: 48kHz. Transmission distance: 70m, 1080P and 4K30; 40m 4K60.

Dimensions (WxDxH): 220 x 150 x 44mm, transmitter; 140 x 105 x 21.5mm, receiver. Weight: 1.21kg, transmitter; 424g, receiver.

  Description Price £
ex. VAT
Add to basket
Delivery
MUXLAB 500531 PRESENTATION SWITCHER 2x1, USB-C Stock code: 89-1036
Available in 3‑4 weeks Ordered on demand, cancellations may incur charges, available in 3‑4 weeks. Need it sooner? Call us
£677.00
MUXLAB 500533 PRESENTATION SWITCHER 5x1, USB-C/HDMI, Dante enabled Stock code: 89-1035
Available in 3‑4 weeks Ordered on demand, cancellations may incur charges, available in 3‑4 weeks. Need it sooner? Call us
£1,270.00
