B-TECH BT8442 FLAT SCREEN MOUNT Wall, up to VESA 600x400/universal, fixed, black

Stock code
18-0079
Brand
B-Tech (BTECH)
Model number
  • BT8442/B
  • BT8442
Colour
  • BlackBlack
B-TECH BT8442 FLAT SCREEN MOUNT Wall, up to VESA 600x400/universal, fixed, black
B-TECH BT8442 FLAT SCREEN MOUNT Wall, up to VESA 600x400/universal, fixed, blackB-TECH BT8442 FLAT SCREEN MOUNT Wall, up to VESA 600x400/universal, fixed, black

B-TECH FLAT SCREEN MOUNTS - Wall

Designed for mounting flat screens of varying sizes to the wall, these B-tech mount are available in fixed, tilting, or tilt and swivel options. Some models have VESA fixings, some are universal fitting and VESA fitting.

Product with prefix of BT have been designed for the professional market whereas product with a prefix of BTV are from the Ventry series of mounts. BTV series mounts are supplied in retail packaging and therefore aimed toward the consumer market.

WALL MOUNT – FIXED

This selection of products enables the mounting of screens to a wall where no tilt or pan is required.


BTV110, for small screen

BTV110 is a low-profile design, with simple 'hook-on' installation mounting the screen parallel to the wall. A locking-screw is provided to prevent screen removal. No cable management, spirit level, padlock facility.

Screen size: up to 23-inch. Maximum load: 20kg. Distance from wall: 15mm. Compatibility: Up to 100x100, VESA.


BT7510, for small screen

BT7510 is a low-profile model designed for small flat screens in a position parallel to the wall. B-Tech’s ‘OWLS’ (On Wall Levelling System) allows the installer to ensure the bracket is positioned correctly. A security screw is provided to prevent unauthorised removal of the screen.

Screen size: up to 28-inch. Maximum load: 20kg. Distance from wall: 15mm. Compatibility: Up to 100x100, VESA.


BT7532, for medium screen

BT7532 is an 'ultra-slim' flat screen mount designed with compatibility with sizes up to VESA 200. Once mounted, the monitor is 15mm from the wall. B-Tech’s ‘OWLS’ (On Wall Levelling System) allows the installer to ensure the bracket is positioned correctly. A security screw is provided to prevent unauthorised removal of the screen.

Screen size: up to 47-inch. Maximum load: 40kg. Distance from wall: 15mm. Compatibility: Up to 200x200, VESA.


BTV500, for medium screen

BTV500 is a universal wall mount compatible with medium sized screens up to 47-inches. The mount has a ‘hook-on’ installation and lateral adjustment system for speed and ease. A security locking bar prevents unauthorised screen removal. Fixings included.

Screen size: up to 47-inch. Maximum load: 40kg. Distance from wall: 20mm. Compatibility: Up to 200x200, VESA; up to 225x200, universal.


BT8200, for medium screen

BT8200 allows medium sized screens, up to 47-inches in size, to be mounted to a brick or concrete wall. The spacing of the screen is of minimal distance from the wall to avoid unsightly gaps, when viewed from the side. The bracket has a 'hook-on' mounting, on-wall levelling and 'Torsion-lock' security; a sprung bar which can be screwed down from above (using a pin hex-key, supplied) to hold the vertical members in place.

Screen size: up to 47-inch. Maximum load: 40kg. Distance from wall: 14mm. Compatibility: Up to 200x200, VESA; up to 240x200, universal.


BT8421, for medium screen

BT8421 is designed for screens up to 55-inches in size, with VESA compatibility up to VESA 400 and universal compatibility up to 465x400mm. The bracket allows the screen to have more distance from the wall to enable room for cables and connectors. A convenient 'hook-on' mounting and OWLS on-wall levelling system allows quick screen installation, whilst a locking bar is included for secure installation. Padlock not included.

Screen size: up to 55-inch. Maximum load: 35kg. Distance from wall: 30mm. Compatibility: Up to 400x400, VESA; up to 465x400, universal.


BT8441, for medium/large screen

BT8441 is designed to universally fit medium and large sized screens measuring up to 55-inches and weighing up to 80kg. The bracket allows the screen to have more distance from the wall to enable room for cables and connectors. A convenient 'hook-on' mounting system allows quick screen installation.

Screen size: up to 55-inch. Maximum load: 80kg. Distance from wall: 30mm. Compatibility: Up to 455x400, universal.


BTV510, for large screen

BTV510 is a universal wall mount compatible with large sized screens up to 55-inches. The mount has a ‘hook-on’ installation and lateral adjustment system for speed and ease. A security locking bar prevents unauthorised screen removal. Fixings included.

Screen size: up to 55-inch. Maximum load: 50kg. Distance from wall: 20mm. Compatibility: Up to 400x400, VESA; up to 425x400, universal.

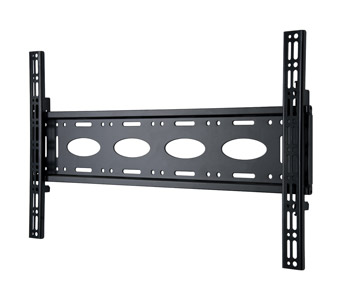

BT8442, for large screen

BT8442 is designed to universally fit large sized screens measuring up to 80-inches and weighing up to 80kg. The bracket is also compatible with single pole-mounting, however the maximum load is reduced to 50kg. The bracket allows the screen to have more distance from the wall to enable room for cables and connectors. A convenient 'hook-on' mounting system allows quick screen installation.

Screen size: up to 80-inch. Maximum load: 80kg. Distance from wall: 30mm. Compatibility: Up to 656x400, universal.


BTV520, for extra-large screen

BTV520 is designed to fit extra-large sized, VESA or universal fixing screens measuring up to 65-inches and weighing up to 70kg. The bracket is designed for brick, concrete, or stud walls. BTV520 has a convenient 'hook-on' mounting system allows quick screen installation.

Screen size: up to 65-inch. Maximum load: 70kg. Distance from wall: 20mm. Compatibility: Up to 800x800, VESA; 825x500, universal.


BT8422, for extra large screen

BT8422 is designed to fit extra-large sized, VESA or universal fixing screens measuring up to 80-inches and weighing up to 70kg. Lateral adjustment can take place after mounting. Suitable for concrete or brick walls. A convenient 'hook-on' mounting and OWLS on-wall levelling system allows quick screen installation, whilst a locking bar is included for secure installation.

Screen size: up to 65-inch. Maximum load: 70kg. Distance from wall: 30mm. Compatibility: Up to 800x500, VESA; 840x500, universal.


BT9901, for extra-large screen

BT9901 is capable of supporting screens up to 100kg in weight, and is designed for displays over 65-inches, supporting VESA and universal mount patterns up to 900x600mm. Post installation lateral screen alignment and 'hook-on' installation allow for quicker mounting.

Screen size: 65-inch and over. Maximum load: 100kg. Distance from wall: 30mm. Compatibility: Up to 900x600, VESA; up to 900x600, universal.


BT9903, for (extra) extra-large screen

BT9903 is capable of supporting screens up to 200kg in weight, and is designed for displays over 65-inches and up to 120-inches. The mount supports VESA and universal mount patterns up to 1000x600mm. A 'hook-on' screen installation allows for fast mounting, whilst adjustable screws allow for height adjustment and levelling.

Screen size: up to 120-inch. Maximum load: 200kg. Distance from wall: 35mm. Compatibility: Up to 1000x600, VESA; up to 1000x600, universal.

Comparison
Screen Size Capacity Distance VESA (1) Universal (1)
From Wall
BTV110 23-inch 20kg 15mm 75 x 75 75 x 75mm
BT7510 28-inch 20kg 15mm 100 x 100 100 x 100mm
BT7532 47-inch 40kg 15mm 200 x 200 200 x 200mm
BTV500 47-inch 40kg 20mm 200 x 200 225 x 200mm
BT8200 47-inch 40kg 14mm 200 x 200 240 x 200mm
BT8421 55-inch 35kg 30mm 400 x 400 465 x 400mm
BT8441 55-inch 80kg 30mm 400 x 400 455 x 400mm
BTV510 55-inch 50kg 20mm 400 x 400 425 x 400mm
BT8442 80-inch 80kg 30mm 600 x 400 656 x 400mm
BTV520 65-inch 70kg 20mm 800 x 800 825 x 500mm
BT8422 65-inch 70kg 30mm 800 x 500 840 x 500mm
BT9901 65-inch and over 100kg 30mm 900 x 600 900 x 600mm
BT9903 120-inch 200kg 35mm 1000 x 600 1000 x 600mm

Notes, (1) Sizes up to.

WALL MOUNT - TILTING

This selection of products enables the mounting of screens to a wall whereby tilting of the screen, but no pan (swivel) is required.


BT7511, for small screen

BT7511 is a low-profile model designed for small flat screens in a position parallel to the wall and allows tilting by +17 degrees and -10 degrees. B-Tech’s ‘OWLS’ (On Wall Levelling System) allows the installer to ensure the bracket is positioned correctly. A security screw is provided to prevent unauthorised removal of the screen. BT7511 is also compatible with BT7850 pole when using 1x optional BT7841 accessory collar.

Screen size: up to 28-inch. Maximum load: 20kg. Distance from wall: 55mm. Compatibility: up to 100x100, VESA.


BT7523, for medium screen

BT7523 is a low-profile model designed for small flat screens in a position parallel to the wall and allows tilting by +/-15 degrees when wall mounted, and +/-40 degrees when pole mounted. Security screws are provided to prevent unauthorised removal of the screen. The screen is mounted via simply hook-on motion.

Screen size: up to 47-inch. Maximum load: 25kg. Distance from wall: 52mm. Compatibility: up to 200x200, VESA.


BT8431, for medium screen

BT8431 is designed for screens from 39-inches to 55-inches in size, with VESA compatibility up to VESA 400 and universal compatibility up to 465x400mm. The bracket allows the screen to tilt +/-15 degrees whilst a distance of 81mm from the wall offers room for cables and connectors. A convenient 'hook-on' mounting system allows quick screen installation, whilst four levelling screws offers post installation adjustment. BT8431 is also pole mountable when using the compatible accessory collar.

Screen size: up to 55-inch. Maximum load: 50kg. Distance from wall: 81mm, flat; 148mm, full tilt. Compatibility: Up to 400x400, VESA; up to 465x400, universal.


BTV511, for large screen

BTV511 is suitable for both VESA and non-VESA mounting screens and offers post-installation screen alignment. The universal wall mount is compatible with large sized screens up to 55-inches with a load capacity of 50kg. Tilt positioning of +/-15 degrees is available once the screen has been installed via ‘hook-on’ installation. A security locking bar prevents unauthorised screen removal. Fixings included.

Screen size: up to 55-inch. Maximum load: 50kg. Distance from wall: 44mm, flat; 153mm, full tilt. Compatibility: Up to 400x400, VESA; up to 425x400, universal.


BT8432, for large screen

BT8432 is designed for large to extra-large screens from up to 80-inches in size, with VESA and universal compatibility. The bracket allows the screen to tilt +/-15 degrees whilst a distance of 81mm from the wall offers room for cables and connectors. A convenient 'hook-on' mounting system allows quick screen installation. Levelling screws offers post installation adjustment. BT8432 is also pole mountable when using the compatible accessory collar.

Screen size: up to 80-inch. Maximum load: 70kg. Distance from wall: 81mm, flat; 148mm, full tilt. Compatibility: Up to 600x400, VESA; up to 677x400, universal.


BT9910, for extra-large screen

Manufactured from 4mm steel, BT9910 is suitable for extra-large screens from 65-inches and over, with VESA and universal fittings up to 1000 x 600mm. The mount offers fixed tilt positions of 0/5/10/15 degrees and has a maximum load capacity of 130kg. The included safety screws prevent unwanted removal of the screen.

Screen size: 65-inch and over. Maximum load: 130kg. Distance from wall: 82mm, flat. Compatibility: Up to 1000x600, VESA; up to 1000x600, universal.

Comparison
Screen Size Capacity Distance Tilt +/- VESA (1) Universal (1)
From Wall
BT7511 28-inch 20kg 55mm 17/10 degrees 100 x 100 100 x 100mm
BT7525 47-inch 25kg 52mm 15/15 degrees 200 x 200 200 x 200mm
BT8431 55-inch 50kg 81mm/148mm 15/15 degrees 400 x 400 465 x 400mm
BTV511 55-inch 50kg 44mm/153mm 15/15 degrees 400 x 400 425 x 400mm
BT8432 80-inch 70kg 81mm/148mm 15/15 degrees 600 x 400 677 x 400mm
BT9910 65-inch and over 130kg 82mm 0,5,10,15 degrees fixed 1000 x 600 1000 x 600mm

Notes, (1) Sizes up to.

WALL MOUNT – TILT AND SWIVEL

This selection of products enables the mounting of screens to a wall whereby tilting and panning (swivel) of the screen is required.


BT7518, for small screen

BT7518 is a low-profile model designed for small flat screens that offers tilting by +17 degrees and -10 degrees and swivel by 180 degrees. B-Tech’s ‘OWLS’ (On Wall Levelling System) allows the installer to ensure the bracket is positioned correctly, whilst 360 degree rotation post installation allows for fine-tuned levelling. A security screw is provided to prevent unauthorised removal of the screen. BT7518 is also pole mount compatible when using an optional B-Tech accessory collar.

Screen size: up to 28-inch. Maximum load: 20kg. Distance from wall: 93mm. Compatibility: up to 100x100, VESA.


BT7512, for small screen

BT7512 has the same functionality as BT7518, however the screen is positioned at the end of a single arm extension that offers mount to wall distance of 75-280mm. Tilting of +17 degrees and -10 degrees and swivel by 180 degrees is available. Security screws are provided to prevent unauthorised screen removal.

Screen size: up to 28-inch. Maximum load: 15kg. Distance from wall: 75-280mm. Compatibility: up to 100x100, VESA.


BT7513, for small screen

BT7513 has the same functionality as BT7518, however the screen is positioned at the end of a double arm extension that offers a greater mount to wall distance of 95-467mm. Tilting of +17 degrees and -10 degrees and swivel by 180 degrees (at wall) is available. Security screws are provided to prevent unauthorised screen removal.

Screen size: up to 28-inch. Maximum load: 15kg. Distance from wall: 95-467mm. Compatibility: up to 100x100, VESA.


BTV502, for medium screen

BTV502 allows +/- 15 degree tilt in the vertical plane and 180 degree horizontal swivelling. The screen may be rotated through 360 degrees to allow for landscape or portrait positioning. An integrated spirit level aids correct installation, whilst integrated cable management offers a neater solution from screen to wall.

Screen size: up to 47-inch. Maximum load: 25kg. Distance from wall: 95mm. Compatibility: up to 200x200, VESA.


BTV503, for medium screen

BTV503 has the same functionality as BTV502 however it has an adjustable screen to wall distance of 79-240mm.

Screen size: up to 47-inch. Maximum load: 25kg. Distance from wall: 79-240mm. Compatibility: up to 200x200, VESA.


BT7514, for medium screen

BT7514 is designed for medium flat screens up to 47-inches, and offers tilting by +/-40 degrees and swivel by 180 degrees. B-Tech’s ‘OWLS’ (On Wall Levelling System) allows the installer to ensure the bracket is positioned correctly. Included security screws are provided to prevent unauthorised removal of the screen. BT7514 is also pole mount compatible when using an optional B-Tech accessory collar.

Screen size: up to 47-inch. Maximum load: 25kg. Distance from wall: 95-336mm. Compatibility: up to 200x200, VESA.


BTV504, for medium screen

BTV504 is very similar to BTV503 however it has two arms linking between the screen mounting plate and the wall plate. There are 180 degrees of swivel available at the wall plate, 360 degrees at the joint between the two arms and 240 degrees at the screen mounting plate. The screen may be rotated through 360 degrees to allow for landscape or portrait positioning. Tilt it +/-15 degrees.

Screen size: up to 47-inch. Maximum load: 25kg. Distance from wall: 79-385mm. Compatibility: up to 200x200, VESA.


BT7515, for medium screen

BT7515 is designed for medium flat screens up to 47-inches, and has three swivel points – one of 180 degrees at the wall, one of 360 degrees at the central pivot point, and one of 240 degrees at the interface. BT7515 offers tilting by +/-40 degrees. B-Tech’s ‘OWLS’ (On Wall Levelling System) allows the installer to ensure the bracket is positioned correctly. Included security screws are provided to prevent unauthorised removal of the screen. BT7515 is also pole mount compatible when using an optional B-Tech accessory collar.

Screen size: up to 47-inch. Maximum load: 25kg. Distance from wall: 95-525mm. Compatibility: up to 200x200, VESA.


BTV513, for large screen

BTV513 has been designed for large screens up to 55-inches, with VESA and universal compatibility up to 400x400mm. A double arm allows the screen to swivel 180 degrees at the wall and 360 degrees at the central pivot position. The mount can be fixed to a single stud, and lateral adjustment of screen is available post installation.

Screen size: up to 55-inch. Maximum load: 35kg. Distance from wall: 40-450mm. Compatibility: up to 400x400, VESA; 400x400mm, universal.

Comparison
Screen Size Capacity Distance Tilt +/- Swivel VESA (1) Universal (1)
From Wall
BT7518 28-inch 20kg 93mm 17/10 degrees 180 degrees 100 x 100 100 x 100mm
BT7512 28-inch 15kg 75-280mm 17/10 degrees 180 degrees 100 x 100 100 x 100mm
BT7513 28-inch 15kg 95-467mm 17/10 degrees 180 degrees 100 x 100 100 x 100mm
BTV502 47-inch 25kg 95mm 15/15 degrees 180 degrees 200 x 200 200 x 200mm
BTV503 47-inch 25kg 79-240mm 15/15 degrees 180 degrees 200 x 200 200 x 200mm
BT7514 47-inch 25kg 95-336mm 40/40 degrees 180 degrees 200 x 200 200 x 200mm
BTV504 47-inch 25kg 79-385mm 15/15 degrees 180 degrees 200 x 200 200 x 200mm
BT7515 47-inch 25kg 95-525mm 40/40 degrees 180 degrees 200 x 200 200 x 200mm
BTV513 55-inch 35kg 40-450mm 10/2 degrees 180/360 degrees 400 x 400 400 x 400mm

Notes, (1) Sizes up to.

ROTATING


BT7549, VESA 200

BT7549 is designed to be mount screens where rotation from portrait to landscape orientation is required. The mount can be fixed to a wall or be pole mounted using B-Tech system 2 collars. The mount allows the rotation from landscape to portrait through 90 degrees without the need for tools. The adjustment can be made before or after installation.

Screen size: up to 47-inch. Maximum load: 25kg. Distance from wall: 47mm. Compatibility: up to 200x200, VESA.


BT7550, VESA 400

BT7550 is designed to be used with touch screens such as the Samsung Flip 2 screen, albeit optional BT7550-SF2 are required for this specific series of screens. The mount can be fixed to a wall or be pole mounted using B-Tech system 2 collars. The mount allows the rotation from landscape to portrait through 90 degrees without the need for tools. The adjustment can be made before or after installation.

Screen size: up to 65-inch. Maximum load: 70kg. Distance from wall: 75.5mm. Compatibility: up to 400x400, VESA.

Comparison
Screen Size Capacity Distance Tilt VESA (1)
From Wall
BT7549 47-inch 25kg 47mm -4.5 degrees 200 x 200
BT7550 65-inch 70kg 75.5mm -4.5 degrees 400 x 400

Notes, (1) Sizes up to.

ACCESSORIES


BT7502 Interface adapter plate

B-Tech BT7502 adapts 75mm or 100mm VESA mounts to larger VESA mounting pitches of 200mm. It has fixing holes on standard VESA 75/100mm pitch to fasten to the mount, with further holes to mount a screen with VESA FDMI MIS-E fixing threads, either 200mm x 200mm or 200mm x 100mm, as fitted to larger screens. The mount is still restricted to the 20kgs maximum weight.


BT7540 Interface adapter arms, VESA 400x200

These interface arms are designed to allow the mounting of VESA 200 fixings to VESA 300 or VESA 400 mounts.


BT7564 Interface adapter arms, VESA 600x400

These interface arms are designed to allow the mounting of VESA 400 fixings to VESA 600 mounts.


BT7565 Interface adapter arms, VESA 800x400

These interface arms are designed to allow the mounting of VESA 400 fixings to VESA 800 mounts.
