GENELEC W371A SAM SUBWOOFER Active, 356/305mm LF drivers, analogue/AES I/O, 2x 400W, 120dB, white

Stock code
76-1553
Brand
Genelec
Model number
  • W371A
  • W371AW
Colour
  • WhiteWhite
GENELEC W371A SAM SUBWOOFER Active, 356/305mm LF drivers, analogue/AES I/O, 2x 400W, 120dB, white
GENELEC W371A SAM SUBWOOFER Active, 356/305mm LF drivers, analogue/AES I/O, 2x 400W, 120dB, whiteGENELEC W371A SAM SUBWOOFER Active, 356/305mm LF drivers, analogue/AES I/O, 2x 400W, 120dB, whiteGENELEC W371A SAM SUBWOOFER Active, 356/305mm LF drivers, analogue/AES I/O, 2x 400W, 120dB, white

GENELEC ACTIVE LOUDSPEAKERS - Sub-bass Monitors

A selection of Genelec active sub-bass monitor loudspeakers, normally used in music studios, post production, and at home.

5000 Series


5041A

Genelec 5014A active, in-wall, twin 165mm driver, subwoofer has been designed specifically to compliment the AIC25 in-ceiling and AIW25 in-wall active loudspeakers. Like the AIC25 and AIW25, the 5014A is powered by a separate amplifier module, however the factory matched RAM3 module is included. The RAM3 module has bass roll-off switches at -2dB, -4dB, and -6dB to provide attenuation, phase correction switches at 0/-90 degrees and 0/-180 degrees, auto-start and remote control for powering. Genelec recommend installing the loudspeaker offset from the centre of a wall for maximum efficiency and best sound reproduction.

Frequency response: 35Hz to 95Hz. Maximum peak output: Over 110dB SPL at 1m. Drivers: 2x 165mm (6.5 inch). Amplifier power: 125W. Power source: 170-265V AC, 11VA, idle; 150VA, full output; 8.5VA, standby. Dimensions: 1170 x 346 x 82mm (h x w x d), loudspeaker; 177 x 54 x 260mm (h x w x d) amplifier. Weight: 15kg, loudspeaker; 1.4kg, RAM3 amplifier.

Included accessories: Grille frame and insert, 4x mounting brackets, RAM3 amplifier unit, M4x16 and M4x30 thumb screws for grille frame, plastic washers for thumb screws, power cable, 1x 4-pole cable connector, 1x 2-pole cable connector, 12x screws for mounting brackets, operating manual.

7000 Series

Genelec LSE (Laminar Spiral Enclosure) sub-woofers are bass-reflex cabinets made of sheet metal rolled into a spiral shape and clamped between thick MDF side panels. This new construction technique provides excellent laminar flow characteristics with minimal turbulence noise and enables an optimal packing of a very long reflex tube into a small space.


7040A

Designed for compatibility with Genelec 8010 or 8020 active monitors, the class D 7040A sub-woofer provides up to 50 watts and 100dB within a comparatively small footprint, making it suitable for environments such as production studios, home studios and 2.1 home cinema set ups. LSE technology tightens up the low-frequencies produced for better articulation. The magnetically shielded 7040A has a connection panel on the right side. Two balanced, 3-pin XLR inputs are mirrored with 3-pin XLR outputs to link to compatible monitors or satellite speakers, whilst a matrix of five miniature (DIP) switches adjust input phase and bass roll-off to -2/-4/-6dB. A recessed rotary control allows the user to adjust the input sensitivity of the speaker. AC mains power is connected via an IEC inlet and a latching push-switch turns power on/off. ISS (Intelligent Signal Sensing), which can be deactivated using a DIP switch, allows the active sub-woofer to switch to standby mode when no input signal has been detected for one hour, and instantly return to operating mode when a signal has been detected.


7050C

A compact LSE low-frequency loudspeaker, incorporating all the amplifier and crossover electronics needed to combine it with Genelec 8010 or 8020 monitor from the 8000 series. Following from the 7050B, the 7050C includes a bypassable bass management system, a lower distortion level, and a increased maximum SPL of 103dB. Adding the 7050C to a pair of these, creates a compact near field monitoring system capable of frequencies extending to 24Hz. All analogue audio I/O and switching of the magnetically shielded 7050C is on a connection panel located on the right side of the speaker. All five balanced inputs, Front Left, Front Centre, Front Right, Rear Left, and Rear Right are via 3-pin XLR connectors and have corresponding balanced 3-pin XLR outputs to link to optional main/surround satellite speakers. A balanced 3-pin XLR LFE (Low Frequency Effects) input channel allows the connection of a dedicated sub output from a compatible receiver or amplifier. A seven stage DIP-switch includes selectable 85/120Hz low pass filter and 0/+10dB sensitivity options for the LFE input. Other switches alter the phase and roll-off. A recessed rotary control adjusts the input sensitivity of the speaker. AC mains power is connected via an IEC inlet and a latching push-switch turns power on/off.

Specifications
7040A 7050C
Driver: 6.5 inch 8 inch
Frequency response: 30 - 85Hz 24 - 85Hz/120Hz
Output level: 100dB SPL, 1 metre 103dB SPL, 1 metre
Amplifier power: 50W 130W
Inputs: 2x 3-pin XLR 5x 3-pin XLR
Loop outputs: 2x 3-pin XLR 5x 3-pin XLR
LFE input: - 1x 3-pin XLR
Dimensions (HxWxD): 410 x 350 x 205mm 410 x 350 x 319mm
Weight: 11.3kg 17.3kg

SMART ACTIVE SUB Series

These active, sub-bass speakers are part of the Genelec SAM series and have been designed to complement 'The Ones' range of monitors, to offer a complete audio system for studios and home theatre setups. With models ranging from 150W to 800W, they use Laminar Spiral Enclosure technology; the bass-reflex cabinets, made of sheet metal, are rolled into a a spiral shape to provide excellent laminar flow characteristics with minimal turbulence noise.


7350A

This 8-inch sub-woofer has been designed to complement the smaller of the SAM series monitors to provide a fuller sound within a compact footprint of 410x350x319 (HxWxD) mm. The class D, 150W amplifier produces frequency response of 22Hz to 100Hz, or 22Hz to 160Hz, with LFE active.

All connectivity is on the right side of the subwoofer, including five balanced analogue inputs via 3-pin XLR connectors, with corresponding balanced outputs. An LFE (Low Frequency Effects) input channel provides for the connection of a dedicated sub output from a compatible receiver or amplifier. Digital (AES/EBU) I/O is provided by 3-pin XLR connections and network I/O connectivity to the GLM network adapter and other monitors is by way of two RJ45 connections.

The AC mains power connection is an IEC inlet and power on/off is via a latching rocker switch. An illuminated LED positioned above the IEC input signifies power on. ISS (Intelligent Signal Sensing) senses when the loudspeaker has not received any audio input for a period of one hour, and switches the loudspeaker into sleep mode, consuming less than 0.5W. When an input signal is detected the monitor resumes normal operation and power consumption. ISS is disabled as factory default and can be activated using GLM software.


7360A

The 7360A has a class D, 300W amplifier which powers a 10-inch driver to produce an output of 109dB SPL with a frequency response of 19-100Hz, or 19-150Hz with LFE active.

Like the 7350, all connectivity is on the right side of the subwoofer, including seven balanced 3-pin XLR analogue inputs with corresponding balanced 3-pin XLR outputs, a LFE (Low Frequency Effects) input channel to allow the connection of a dedicated sub output from a compatible receiver or amplifier and an LFE output for linking via 3-pin XLR. Link in and out connections are provided via balanced 3-pin XLR while digital (AES/EBU) I/O is also provided via 3-pin XLR connections. Network input and output connectivity to the GLM network adapter and other monitors is by way of two RJ45 connections. Miniature (DIP) switches allow the configuration of bass roll-off, phase, digital LFE, test tone, and 'Stored' in which the settings can be overridden with those preset using GLM software.

The AC mains power connection is an IEC inlet and power on/off is via a latching push switch. An illuminated LED positioned above the IEC input signifies power on. ISS (Intelligent Signal Sensing) senses when the loudspeaker has not received any audio input for a period of one hour and switches the loudspeaker into sleep mode, consuming less than 0.5W. ISS can be enabled/disabled via a dip switch on the control panel of the speaker. A 'Bypass' socket, 6.35mm jack, provides a connection for a compatible open/close device to bypass the bass manager.


7370A

7370A SAM subwoofer has the same functionality and frequency reproduction of the 7360A, however a 400W class D amplifier powers a 12-inch bass driver to produce 113dB SPL.


7380A

This has the same functionality of the 7360A and 7370A, however it has a frequency response of 16-100Hz (120Hz with LFE). An 800W amplifier feeds a 15-inch bass driver to produce a maximum level of 119dB SPL.


7382A

Designed for recording studio, post-production, EDM, and premium home theatres, 7382 is a 3x 381mm (3x 15-inch) subwoofer driven by a single 2500watt, Class D amplifier, and capable of a sound pressure level of 129dB (133dB peak). The subwoofer is driven by the included, and individually calibrated RAM-SW amplifier, which has a host of input types to best suit the user's set up. Analogue audio inputs are provided by way of dual 3-pin XLR connections (for channels 1 and 2), an analogue LFE (low frequency effects) channel input on 3-pin XLR, AES/EBU in and thru on 3-pin XLR, and dual RJ45 connections for compatibility with GLM hardware and controller software. The subwoofer is connected to the amplifier with single 4-pole Speakon to Speakon cable.

Included accessories: Calibrated RAM-SW amplifier, 1x 1.8m mains cable, 1x 5m RJ45 network cable, 1x 10m four-pole Speakon to Speakon audio cable.

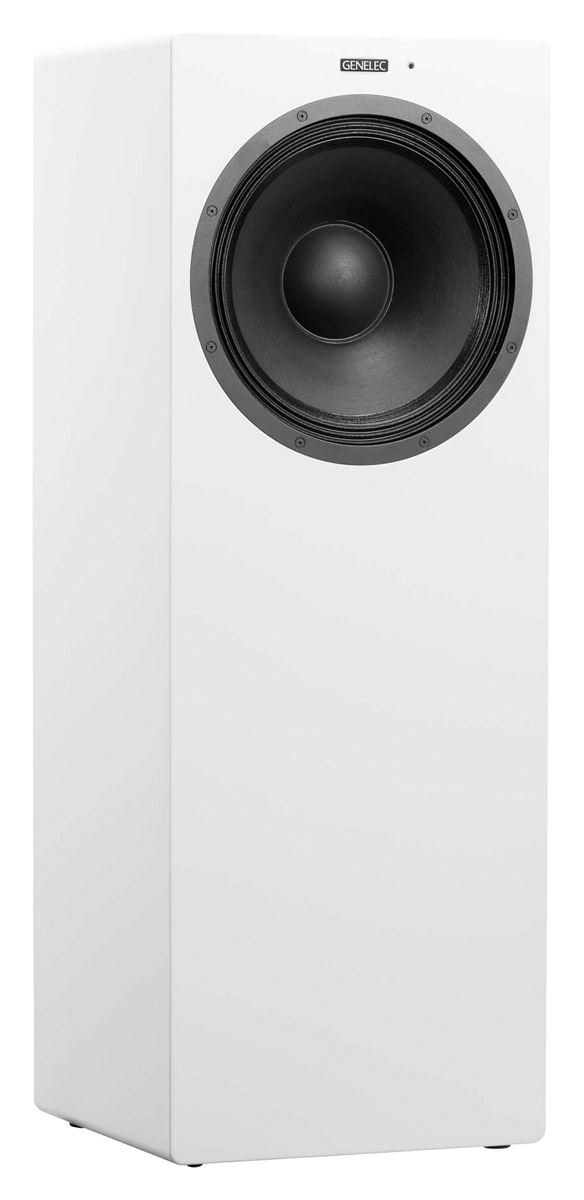

W371A

This Genelec subwoofer features dual LF drivers, a front facing 356mm LF driver and a 305mm rear facing LF driver, reflex port design, and LIP (Laminar Integrated Port) technology for best low frequency imaging. With three modes of operation allow the user to select the best suited for the subwoofers position and setup. W371A can then be optimised using the GLM software. Two 400watt, Class D amplifiers drive the subwoofer and aid a sound pressure level of 120dB and a frequency response of 23Hz to 500Hz at -6dB. Connections are located on the rear facing panel and include analogue input via 3-pin XLR, analogue output via 3-pin XLR, AES/EBU I/O on 3-pin XLR, and dual RJ45 connections for GLM system configuration.

Included accessories: 1x 1.8m mains cable, 1x 5m RJ45 network cable, 8x cable management clips, 16x screws.

Specifications
7350A 7360A 7370A 7380A 7382A W371A
Driver: 205mm 250mm 305mm 381mm 3x 381mm 356mm + 305mm
Frequency response: 25Hz - 150Hz 19Hz - 100Hz 19Hz - 100Hz 16Hz - 100Hz 15Hz - 100Hz 23Hz - 500Hz
SPL, Peak (at 1m): 114dB 118dB 123dB 133dB 123dB
SPL, Short term (at 1m): 104dB 109dB 113dB 119dB 129dB 120dB
Amplifier power: 150W 300W 400W 800W 2500W 2x 400W
Power source: 100/120/230V AC 100-240V AC 100-240VAC 100-240V AC 100-240V AC 100-240V AC
Power Consumption
ISS active: <=0.5W <=1W <=1W <=2W <=13 <=2W
Idle: <=8.5W <=20W <=20W <=40W <=22W <=40W
Full power: 150W 300W 400W 600W 1500W 600W
Dimensions (WxDxH): 410 x 350 x 319mm 527 x 462 x 365mm 625 x 555 x 496mm 685 x 718 x 492mm 1400 x 558 x 625mm 400 x 400 x 1108mm
Weight: 19kg 27kg 48kg 69kg 145kg 61kg

GLM Loudspeaker Management Kit

Comprising of GLM network adapter, Genelec 8300A calibration microphone, microphone holder (with both 5/8-inch and 3/8-inch threads) and quick connection guide, this kit is used to link the Genelec GLM3 software (free to download) via the network adapter to 'The Ones' series of monitors and compatible SAM sub-woofers. Once connected, AutoCal calibration may be implemented to adjust monitor levels, frequency responses, time alignment, phase adjustment and determine unlimited setup files for quick recall.

The rear face of the desktop GLM network adaptor has a USB 2.0 type B connector that can be used to power the unit via a compatible computer or mains adapter. A yellow LED shows power-on status. A 3.5mm jack provides connectivity to the 9310A volume controller; a second 3.5mm jack allows for the connection of the included 8300A calibration microphone. Two RJ45 network connections link to compatible monitors and are complete with terminator (the latter being optional).

  Description Price £
ex. VAT
Add to basket
Delivery
GENELEC 5041A LOUDSPEAKER Active, subwoofer, 125W, including RAM3 amplifier, in-wall Stock code: 76-1189
Ordered on demand, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
£1,720.00
GENELEC 7040A SUBWOOFER Active, 165mm LF driver, analogue I/O, 50W, 100dB Stock code: 76-1551
Ordered on demand, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
£690.00
GENELEC 7050C SUBWOOFER Active, 205mm LF driver, analogue I/O, 130W, 103dB Stock code: 76-011
Ordered on demand, cancellations may incur charges, available in 3‑5 working days. Need it sooner? Call us
£899.00
GENELEC 7350A SAM SUBWOOFER Active, 205mm LF driver, analogue/AES I/O, 150W, 104dB Stock code: 76-1541
Ordered on demand, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
£1,140.00
GENELEC 7360A SAM SUBWOOFER Active, 250mm LF driver, analogue/AES I/O, 300W, 109dB Stock code: 76-1542
Ordered on demand, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
£1,740.00
GENELEC 7370A SAM SUBWOOFER Active, 305mm LF driver, analogue/AES I/O, 400W, 113dB Stock code: 76-1543
Ordered on demand, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
£2,660.00
GENELEC 7380A SAM SUBWOOFER Active, 381mm LF driver, analogue/AES I/O, 800W, 119dB Stock code: 76-1544
Ordered on demand, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
£4,200.00
GENELEC 7382A SAM SUBWOOFER Active, 3x 381mm LF drivers, analogue/AES I/O, 2500W, 129dB Stock code: 76-1554
Ordered on demand, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
£9,830.00
GENELEC W371A SAM SUBWOOFER Active, 356/305mm LF drivers, analogue/AES I/O, 2x 400W, 120dB, grey Grey Stock code: 76-1552
Price on application, please call us.
POA
GENELEC W371A SAM SUBWOOFER Active, 356/305mm LF drivers, analogue/AES I/O, 2x 400W, 120dB, white White Stock code: 76-1553
Price on application, please call us.
POA
GENELEC RAM2-405 RACK SHELF 4U, for RAM2 and RAM3 modules Stock code: 76-1158
Ordered on demand, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
£132.50
GENELEC GLM LOUDSPEAKER MANAGER KIT For SAM monitors Stock code: 76-1548
Ordered on demand, available in 2‑3 working days. Need it sooner? Call us
£274.10
