CLOUD CXL-100T 100V LINE DRIVING TRANSFORMER 4 ohms input impedance, 100W

Stock code
Model number
  • CXL-100T
CLOUD CXL-100T 100V LINE DRIVING TRANSFORMER 4 ohms input impedance, 100W


CXL-100T Transformer

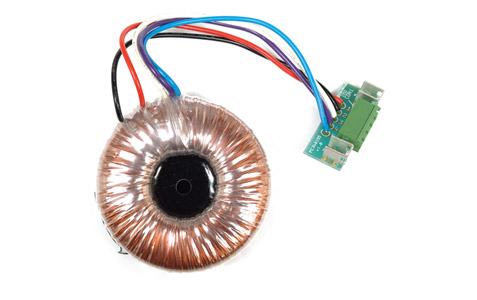

The CXL-100T is a 100V line driving transformer intended for use in high quality background music and public address applications in systems up to 100W rms. A 70V tap is provided for 70V line systems. The transformer is sectionally wound to give an extended high frequency response and low distortion. The CXL-100T is double wound to provide a fully isolated balanced output signal. The unit is mounted on an M6 fixing bush with screw terminal connectors (with connector cover) PCB mounted on a flying lead, that can be attached to the rear of the CXL-800 rack housing unit.

The CXL-100T must be mounted in a suitable enclosure to meet the required safety standards. No special ventilation provisions need to be made for CXL-100Ts as their high efficiency means little power is dissipated. As with all audio transformers it should not be mounted close to mains transformers or any other source of strong magnetic fields. If mounting close to main transformers is unavoidable then the cores should be arranged at 90°. Every CXL-100T is supplied with 1 x M6 nut, bolt and washer and 2 x M3 fixing screws for fixing the connector down.

Technical Specification:
Maximum input voltage: 25V rms
Input impedance: 4 ohms (with 100 ohms secondary load)
Output voltage: 100V or 70V
Output power rating: 100W rms
Minimum load impedance: 100 ohms (100V) or 50 ohms (70V)
Frequency response: 35Hz to 18kHz–3dB (with a 100 ohms load)
Distortion: <0.01% 1kHz

CXL-800 Rack Housing

The CXL-800 is available to provide convenient mounting of up to eight CXL-100Ts into a 2U 19" rack enclosure and includes provision for neatly tying cables. The CXL-800 is not intended to be used free standing and will not provide adequate protection in such a situation. The CXL-800 is designed to accommodate eight CXL-100Ts in static applications only. Extra support may be required in portable equipment. Depth 260mm (221mm without cover or connections).

  Description Price (£) Add to basket
Show carriage
CLOUD CXL-100T 100V LINE DRIVING TRANSFORMER 4 ohms input impedance, 100W   Stock code: 23-491
Please login for stock availability and lead times.
CLOUD CXL-800 RACKMOUNT SHELF For up to 8x CXL-100T transformer   Stock code: 23-492
Please login for stock availability and lead times.
